Trailcraft Direct Mount 140mm- Alloy Spindle-26,28,30, 32t Option

ALL COLORS in stock today! Take advantage of special WINTER pricing! Just a few days left, prices go back up March 1st when we are officially back in season!

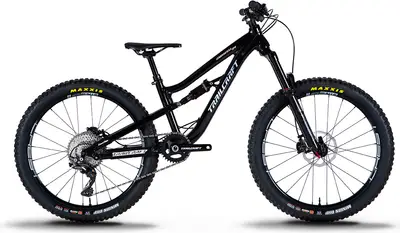

Dominate the trails going both down and up on our new Maxwell 24 full suspension trail bike. Here on our home trails of Fort Collins, Colorado there is an awesome trail called Maxwell. It’s a super technical, steep and rocky trail but the reward down is so nice. It can be done on a hardtail, but it is so much more fun on a full suspension bike! If this sounds like the riding in your area where you do have to climb for the good stuff going down, then the Maxwell 24 is your next bike.
Builds starting at just 24 pounds! This bike is lighter than most 24" hardtails on the market. Our new 120mm travel front/rear Maxwell 24 has a category leading complete bike weight thanks in part to attention to detail with top shelf level components typically found on much more expensive bikes. The end goal - to build the lightest production 24” full suspension trail bike. Nothing more to modify to make it lighter because we've built your kid the best bike with the best components so you can spend more time riding.
This is a fun, playful, super flickable bike for all types of mountain bike riding. Race it, take it to parks, or just have an awesome bike to trail ride. The Maxwell 24 features a Horst link suspension design which is active under braking and very plush over both small bumps and bigger hits. The short 390mm chainstay length keeps the bike super fun yet stable at speed. Perfect for those manuals and launching whatever trail obstacles need to be conquered! Our Maxwell 24 is internal dropper post compatible and the entire package has been created as the ultimate 24” full suspension trail bike designed to give you more smiles per mile at a ride-ALL-terrain complete bike weight.
We will build this bike up just for your young rider from the frame up in one of 5 build levels! Please order ahead of when you will need the bike as we do get busy in-season. A premium level product needs a little more time to build!
SRAM X01 AXS Maxwell 24 Complete Bike - Our flagship electronic shifting 12-speed trail bike at just 23.5 pounds! - $4899.00 (February only sale - $4799!) 12 Speed! (10-52 cassette) X01 AXS Electronic shifting with Our 1100 gram carbon wheelset!
SRAM GX AXS Maxwell 24 Complete Bike - electronic shifting 12-speed trail bike at just 24 pounds! - $4499.00 (February sale - $4099!) 12 Speed! (10-52 cassette) GX AXS Electronic shifting with Stans Crest MK4 wheels
ELITE Maxwell 24 Complete Bike - Our flagship 12-speed trail bike at just 24 pounds! - $4499.00 (February sale - $3999!) 12 Speed! (10-51 cassette) Shimano XT M8100 Shipping with our 1100 gram carbon wheels and carbon riser bar!!!
PRO Maxwell 24 Complete Bike - $3499.00 (February sale - $2999!) 12 Speed Deore 6100! Now shipping with Stans Crest MK4 wheels
Maxwell Special Build - $2999.00 (February sale - $2499!) 10 Speed Deore drivetrain - Now shipping with Stans Crest K wheels!
For more detailed information of spec on each level bike please click on Features, Specifications, and Geometry.
Want to go a bit more custom or full custom on this build? Contact us! We are a small family business focused on building the best kids mountain bikes possible. We truly geek out on this stuff, just see our Instagram page for some of what we are doing as well as our custom builds page. We bring our frames in from Taiwan (un-assembled/not built) and we build each bike per order in Fort Collins, Colorado with US labor. Since we don't import "complete bike in box from Asia" like pretty much everyone else does, we maintain a high quality control from installation of headset, bottom bracket, and even putting the derailleur hanger on frames here in the US. You can be proud to tell your kids they have a unique bike which was truly built to order from the frame up!

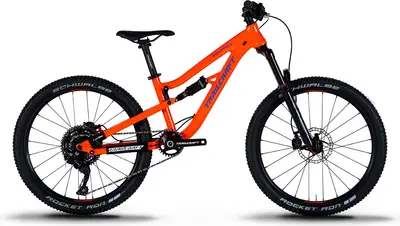

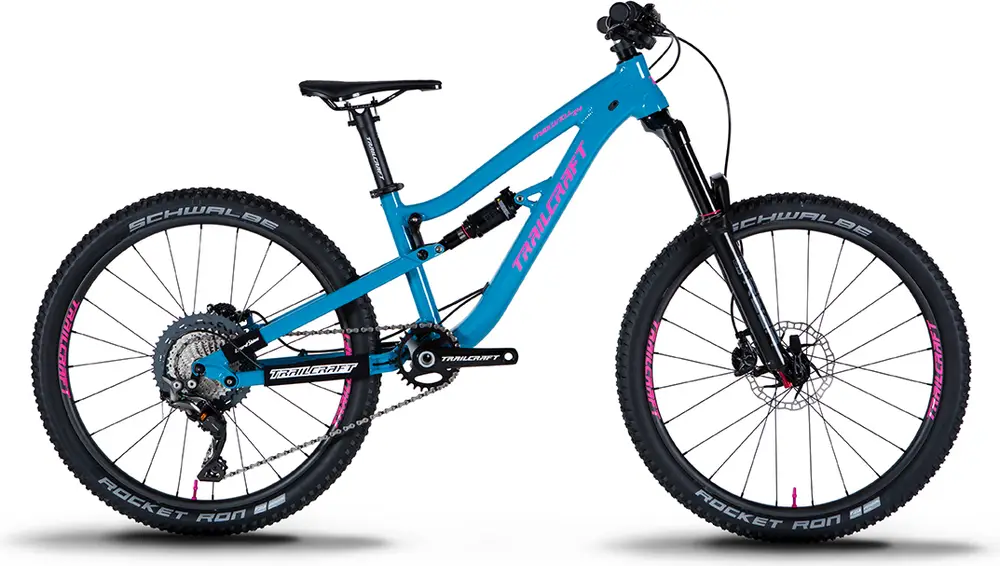

The 2022 Maxwell 24 has it all - super light weight components and 4 cool colors to choose from! We invite you to custom build your kids dream 24" trail bike!
Fits riders with a 24” minimum stand over height.
PLEASE NOTE there is not enough real estate in the triangle for a traditional water bottle cage mount, though a Wolf Components B-Rad everywhere base with your favorite water bottle cage and a small bottle works underneath the down tube.

Trailcraft Maxwell 24 Elite Build

One Size

A 24″ aluminum frame mountain youth bike with high-end components and shimano xt hydraulic disc brakes.

Weight	24.5 lbs
Frame	Aluminum
Suspension	Full, 120 / 120mm
Fork	RockShox Reba
Shock	RockShox Monarch R
Wheels	24″ Carbon
Drivetrain	1 × 12
Groupset	XT
Brakes	Shimano XT Hydraulic Disc

Frame	Maxwell 24 7005 Series Aluminum Colors: Black; Orange; Lava; Turquoise; Green; Hot Pink
Fork	Rock Shox Reba 120mm Travel: 120mm
Shock	Rock Shox Monarch R - 120mm travel Travel: 120mm
Headset	Trailcraft Precision Sealed Cartridge
Stem	Trailcraft, Length: 40mm
Handlebar	Trailcraft Carbon Riser
Saddle	Trailcraft
Seatpost	Trailcraft Pro 30.9 Superlight Type: Rigid
Pedals	VP Composite with metal pins
Grips	Trailcraft Lock-On

Rear Derailleur	Shimano XT 12 Speed
Crank	Trailcraft Direct Mount 140mm- Alloy Spindle-26,28,30, 32t Option
Shifters	Shimano XT 12 Speed
Cassette	Shimano XT 10-51 12 speed

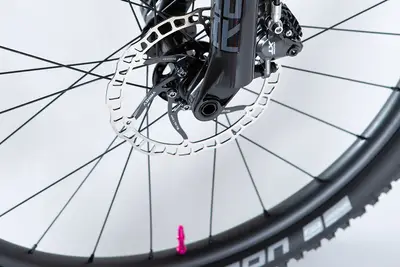

Brakes	Shimano XT 8100 Hydraulic Type: Shimano XT Hydraulic Disc

Rims	Trailcraft Carbon 24"
Tires	Kenda Booster 2.2

2022 TrailcraftMaxwell 24 Elite Build

2022 Trailcraft
Maxwell 24 Elite Build
