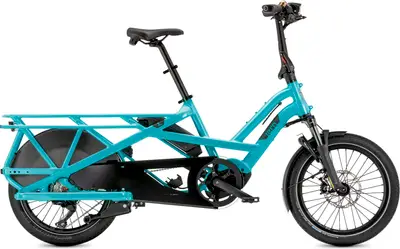

Today’s Deals2023 Tern
GSD S10
A 20″ aluminum frame long tail cargo e-bike with upper mid-range components and magura mt5 hydraulic disc brakes.
Compare the full range
Manufacturer Price
$4,499| Weight | 74.0 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 70mm |
| Fork | Suntour |
| Wheels | 20″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 85Nm mid-drive |
| Battery | Bosch 400Wh |
| Brakes | Magura MT5 Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full GSD model range
View Comparison
Dec 2022 · James Huang
A host of subtle, but highly functional, updates make an already-fantastic cargo bike option even better.
Ultra-compact size combined with full-sized hauling capability, super broad array of accessories, improved ride and handling, quieter and more powerful motor, great range, generally excellent spec.
Finicky kickstand, 20″ front wheel still makes for somewhat twitchy handling, one-size-doesn’t-really-fit-all.
Aug 2021 · Sam Gross
In this Tern GSD S00 LX review we discuss with Tern what makes this bike unique, while testing out handling, motor, and brake capabilities.
Dec 2020
Verdict: The new updated GSD is still the pick of the bunch, and this is the pick of the specs.
Aug 2020 · Staff
The new GSD G2 is Tern's new version of its high-in-demand electric cargo bike. Improved features and a new safety standard help you GSD.
Aug 2020
The revamped bike includes a high-torque motor, suspension fork, brake lights, wheel lock, and other useful additions.
Jul 2020 · Philipp Schwab
Is the Tern GSD S00 E-cargo bike literally living on the edge? Is putting a 115 kg rider on the smallest bike in the test a recipe for disaster? We sent our biggest test rider to check whether this little E-cargo bike is bombproof. Equipped with a dual battery system and two bottles of beer, the little Tern had to show what it's capable of!
Can be stowed anywhere thanks to its compact dimensions, even fitting in the back of an estate!
Well thought out concept, standard euro boxes fit the rack perfectly
Comfortable tire-rim combination
Convenient manoeuvring handle on the saddle
Low-slung frame
Limited climbing capabilities due to the limited gear range of the Enviolo Cargo drivetrain
Nervous handling, especially without a load
Old generation Bosch Performance Line CX motor
Wobbly stand that is difficult to fold out
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg Colors: Beetle Blue; Satin Black |
|---|---|
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg Travel: 70mm |
| Bottom Bracket | Motor integrated |
| Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Handlebar | Tern Sweep, 6061-AL, Tern Andros adapted |
| Saddle | Tern GSD by Velo, with rear handle |
| Seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL Type: Rigid |
| Pedals | Urban with non-slip surface, sealed bearings |
| Rear Derailleur | Shimano Deore Shadow+ |
|---|---|
| Crank | Tern GSD custom, forged 6061-AL DH crankarm |
| Shifters | Shimano Deore, 1 x 10 spd |
| Cassette | Shimano 11-42T, 10 spd |
| Chain | 10 spd, DHT for eBike, GST corrosion resistant coating |
| Chain Guide | Tern Custom, full chain cover |
| Brakes | Front: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads, Rear: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads Type: Magura MT5 Hydraulic Disc |
| Brake Levers | Magura MT5 e-stop, hydraulic, with brake sensor |
| Rims | Tern Atlas, ultra wide 36 mm, dual reinforced joint |
|---|---|
| Front Hub | Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing |
| Rear Hub | Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design |
| Tires | F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
|---|---|
| Battery | Bosch Dual Battery system, 400 Wh/900 Wh |
| Display | Bosch Purion, 4 mode selectable, walk assist |
| Charger | 220V, 4A (EU); 100-240V, 4A (US) |
| Lights | Front: Tern Valo Direct, 190 lumens, Rear: RearStop Brake Light, Always on brake light |
|---|---|
| Fenders | Integrated Wheel Guard, AL6061, w/ Side Skirt |
| Racks | Combo Mount |
| Bell | Pitch Plus, brass |
