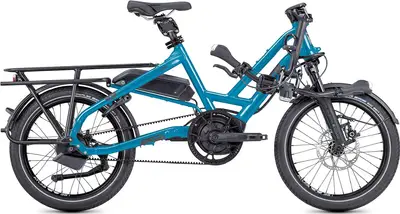

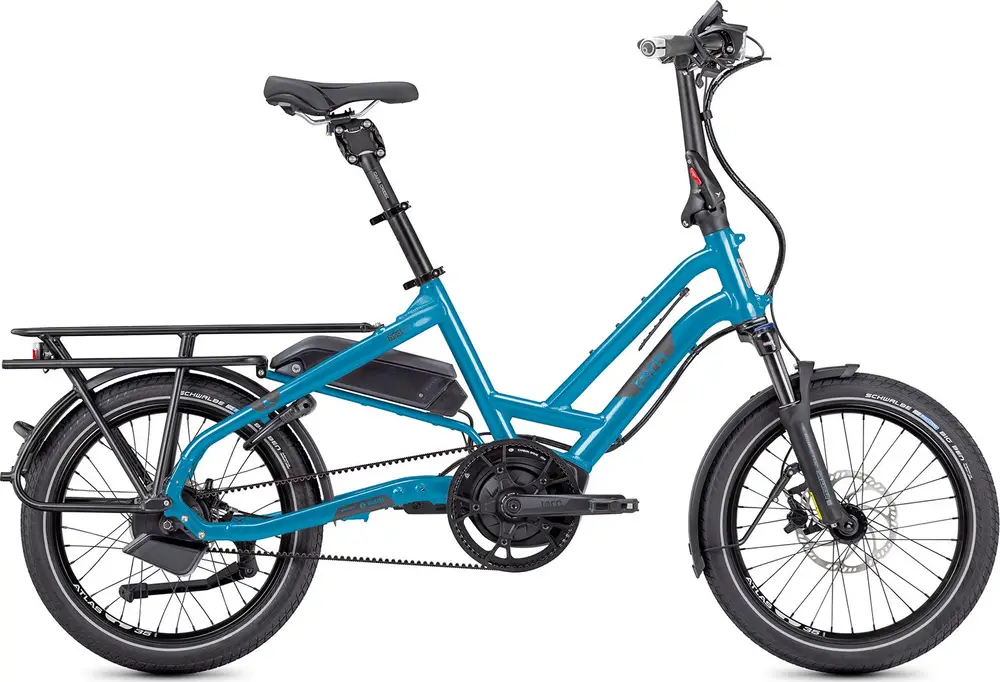

2020 Tern

HSD S+

A 20″ aluminum frame utility e-bike with high-end components and hydraulic disc brakes.
Compare the full range

MSRP$5,499
Weight58.7 lbs
FrameAluminum
SuspensionHardtail, 70mm
ForkSuntour
Wheels20″ Aluminum
DrivetrainBelt Drive, Internally Geared Hub
Groupset
MotorBosch 250W 63Nm mid-drive
Battery500Wh
BrakesHydraulic Disc
Learn about Tern
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Reviews
Electric Bike Review
Tern HSD S8i Review

Jun 2021

Price: $3799.00 | Model Year: 2020 | A high-quality midtail electric cargo bike that can stand vertically to save space! Available in eight colors (four for the S8i configuration) but only one frame size. Slack seat tube angle and two seat post segments provide a range of fit options for short and tall riders alike.

Observations
  • A high-quality midtail electric cargo bike that can stand vertically to save space! Available in eight colors (four for the S8i configuration) but only one frame size. Slack seat tube angle and two seat post segments provide a range of fit options for short and tall riders alike.

  • Lighter and less expensive than the Tern GSD model, the HSD (which stands for Haul Stuff Daily), comes with premium fenders, custom suspension fork, adjustable-angle Andros stem, and ergonomic grips for added comfort. Compared to the GSD, it offers a lower weight capacity overall and can only handle one child seat

  • Comfortable and stable Schwalbe Big Ben tires provide puncture protection and reflective sidewalls to keep you visible. Premium integrated lights with excellent headlight position and aiming. Magura hydraulic disc brakes provide great stopping power with extra-large 180mm front rotor. Capable but quiet Bosch Active Line Plus motor pairs nicely with the lightweight and reliable Bosch PowerPack 400... Tern chose the faster 4 amp Bosch ebike charger!

  • Bosch Purion display is not removable and does not provide USB charging or smartphone app support... but it's less likely to get damaged when folding the stem. Limited 105 RPM pedal cadence from Bosch Active Line Plus vs. Performance Line. Gates Carbon belt drive is quiet and reliable, the Nexus 8-speed internally geared hub is durable and can shift at standstill, but these features add cost and the IGH adds weight

Read Review

ebiketips
Tern HSD S8i

Dec 2019

The Tern GSD remains my favourite everyday cargo bike, and the HSD doesn’t quite do enough to knock it off that particular perch. Really this is a different thing though: you shouldn’t think of it as a cargo bike so much as a super-versatile city bike. It’s compact, you can carry loads of stuff, and it folds down for storage. It’s a great addition to the range and for many people will be more attractive than the larger GSD, which has a load capacity that not everyone will need.

Read Review

99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

6061 aluminum

Fork

Suntour custom for Tern, 70 millimeters

Travel70mm

Bottom Bracket

Motor integrated

Headset

Tern Flux Pro Taper, 1.5 in., angular contact bearings

Stem

Tern Physis 3D with Andros Stem

Handlebar

Tern Sweep, 6061-AL, Tern Andros Adapted

Saddle

Tern HSD

Seatpost

Cane Creek Thudbuster ST, Tern Telescope, 34.9/30.9mm

TypeRigid

Pedals

Urban platform with nonslip surface, sealed bearings

Groupset
Crank

Tern HSD custom

Shifters

enviolo AUTOMATiQ

Cassette

Gates CDX, precision CNC machined cog

Chain

Gates Carbon Drive CDX Belt

Brakes

Magura MT-4 hydraulic disc Hydraulic Disc Brake

TypeHydraulic Disc

Brake Levers

Magura hydraulic

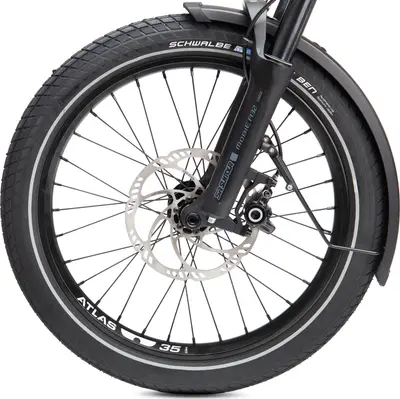

Wheels
Rims

Tern Atlas H, Cargo

Front Hub

Novatec, thru axle, sealed bearings

Rear Hub

enviolo Sport 380

Tires

Schwalbe Big Ben 20 x 2.2 in. (55-406mm), RaceGuard Puncture Protection

Electric Components
Motor

Bosch Performance Line (Gen 3)

Battery

Lithium Ion, 500 watt hours

Recycling Program♻️ Call2Recycle

Rider Notes
Riders Also Viewed

Last updated February 16
Not listed for 1,131 days
