HSD P9

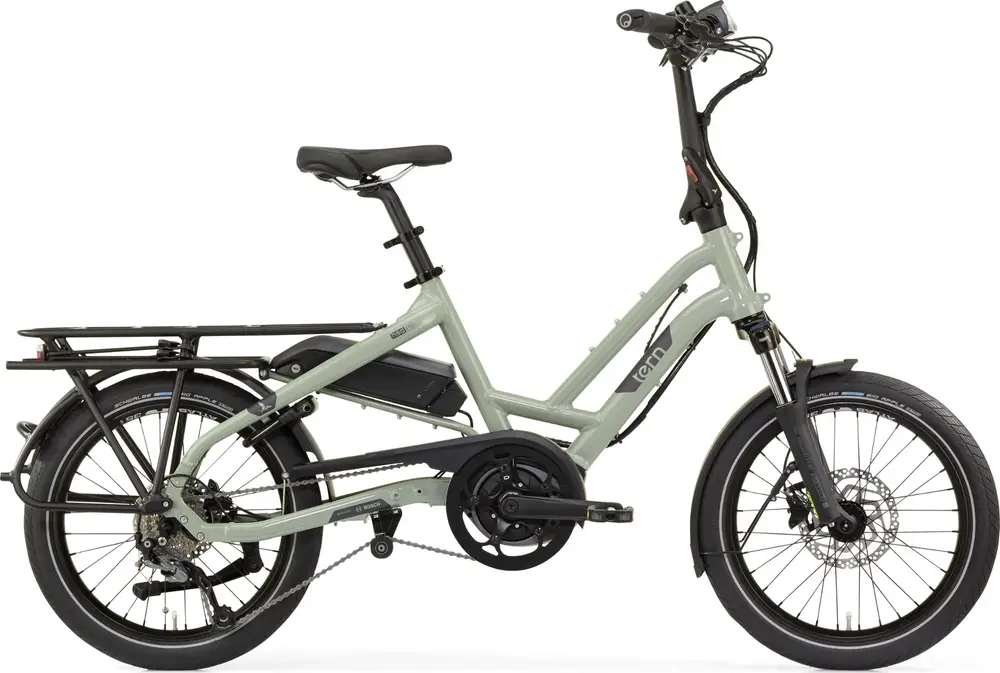

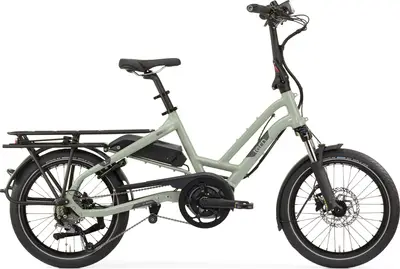

A 20″ aluminum frame utility e-bike with mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$3,199Weight | 56.5 lbs |
---|---|
Frame | Aluminum |
Suspension | Hardtail, 70mm |
Fork | Suntour |
Wheels | 20″ Aluminum |
Drivetrain | 1 × 9 |
Groupset | Alivio |
Motor | Bosch 250W 50Nm mid-drive |
Battery | 400Wh |
Brakes | Hydraulic Disc |
For This Bike
Jan 2024

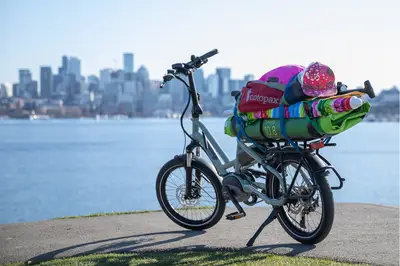

Price: $3499.00 | Model Year: 2021 | A high-quality midtail electric cargo bike that can stand vertically to save space! Available in three colors but only one frame size. Slack seat tube angle and two telescoping seat post segments provide a range of fit options for short and tall riders alike. This is a proven ebike in my opinion, one that is available in four configurations depending on your appetite for technology, power, and range. The P9 is the most affordable, uses a weaker motor and smaller battery, and is the second lightest in the group.
A high-quality midtail electric cargo bike that can stand vertically to save space! Available in three colors but only one frame size. Slack seat tube angle and two telescoping seat post segments provide a range of fit options for short and tall riders alike. This is a proven ebike in my opinion, one that is available in four configurations depending on your appetite for technology, power, and range. The P9 is the most affordable, uses a weaker motor and smaller battery, and is the second lightest in the group.
Lighter and less expensive than the Tern GSD models, the HSD (which stands for Haul Stuff Daily), comes with premium fenders, a custom suspension fork, tool free adjustable-angle Andros stem, and ergonomic grips for added comfort. Compared to the GSD, it offers a lower weight capacity and can only handle one child seat...

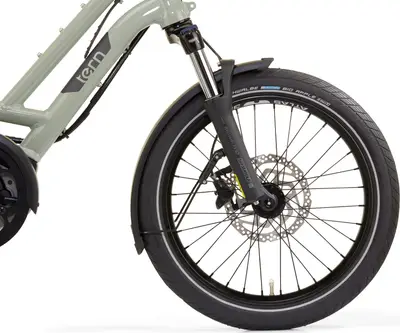

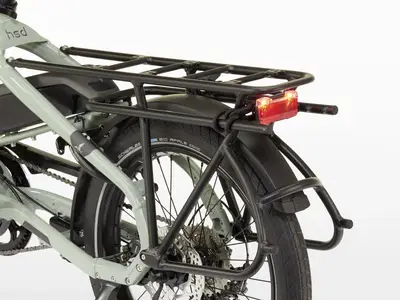

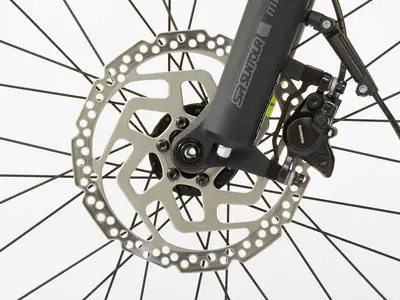

Comfortable and stable Schwalbe Big Ben tires provide puncture protection and reflective sidewalls to keep you visible. Premium integrated lights with excellent headlight position and aiming. Shimano hydraulic disc brakes provide good stopping power with an extra-large 180mm front rotor. Capable but quiet Bosch Active Line Plus motor pairs nicely with the lightweight and reliable Bosch PowerPack 400.

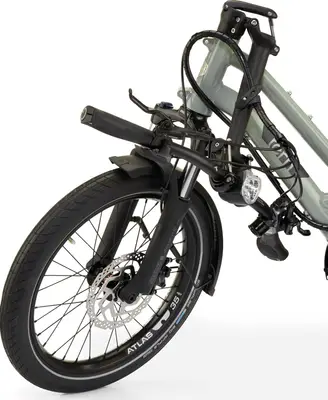

Bosch Purion display is not removable and does not provide USB charging or smartphone app support, but is less likely to get damaged when folding the stem. Limited 105 RPM pedal cadence from Bosch Active Line Plus vs. Performance Line may require more downshifting to climb steep hills. Fewer color options available, and this model comes with the slower Bosch two-amp compact charger.
Dec 2019
The Tern GSD remains my favourite everyday cargo bike, and the HSD doesn’t quite do enough to knock it off that particular perch. Really this is a different thing though: you shouldn’t think of it as a cargo bike so much as a super-versatile city bike. It’s compact, you can carry loads of stuff, and it folds down for storage. It’s a great addition to the range and for many people will be more attractive than the larger GSD, which has a load capacity that not everyone will need.
Frame | 6061 aluminum |
---|---|
Fork | Suntour custom for Tern, 70 millimeters Travel: 70mm |
Bottom Bracket | Motor integrated |
Headset | Tern Flux, Cartridge Bearings |
Stem | Tern Physis 3D with Andros Stem |
Handlebar | Tern Sweep, 6061-AL, Tern Andros Adapted |
Saddle | Tern HSD |
Seatpost | Tern Telescope, 34.9/30.9mm, 2014-AL Type: Rigid |
Pedals | Urban platform with nonslip surface |

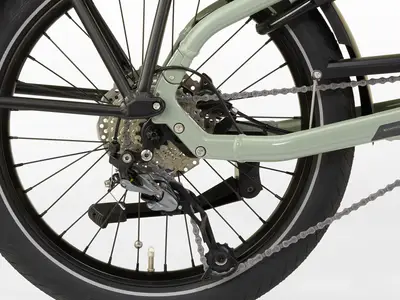

Rear Derailleur | Shimano Alivio Shadow |
---|---|
Crank | Tern HSD custom |
Shifters | Shimano Alivio |
Cassette | Shimano 9-speed, 11-32 |
Chain | 9-speed DHT for eBike with GST corrosion-resistant coating |
Brakes | Shimano hydraulic disc Hydraulic Disc Brake Type: Hydraulic Disc |
Brake Levers | Shimano hydraulic |
Rims | Tern Atlas H, Cargo |
---|---|
Front Hub | Novatec, thru axle, sealed bearings |
Rear Hub | Shimano disc |

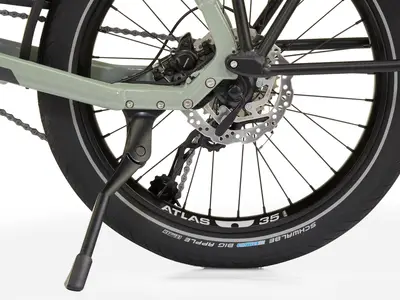

Tires | Schwalbe Big Apple 20 x 2.2 in. (55-406mm) |
Motor | Bosch Active Line Plus, 250W |
---|---|
Battery | Lithium Ion, 400 watt hours Recycling Program: ♻️ Call2Recycle |
