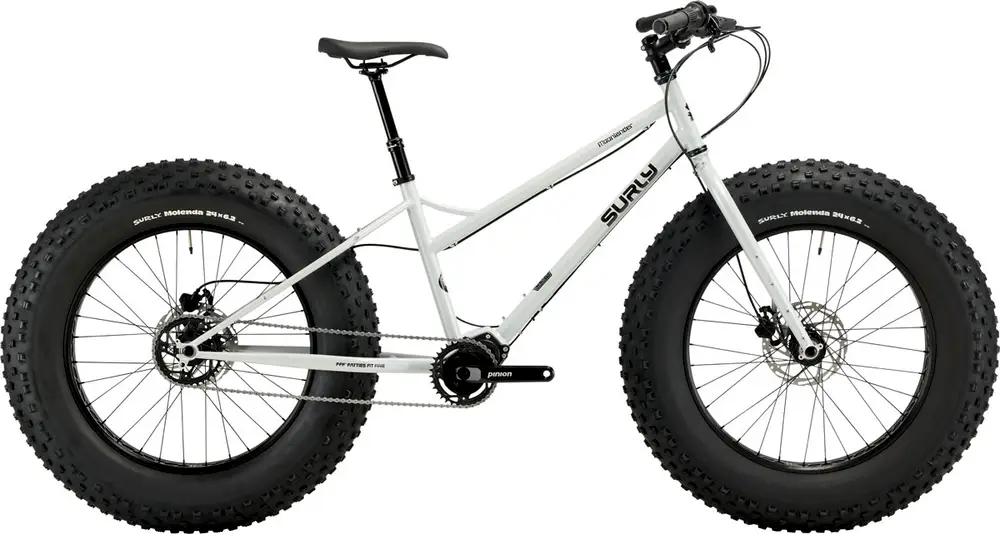

Name: 2024 Surly Moonlander
Brand: Surly
Rating: 4.4 (1 reviews)

Lunar Dust Gray

Pinion for Surly crankset 34T, with Pinion high-offset spider

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

TransX YSP15JL Dropper, 125mm travel (100mm travel on SM)

Surly Molenda Tire 24 X 6.2”, 60tpi, Tubeless Ready

When we find ourselves with a deep, primal urge to explore beyond the horizons of our beloved Flat Earth, few things satiate this need. Moonlander is one of them.
A portal into previously unridden terrain, Moonlander goes where other fat bikes don’t dare, where traction is a supposed myth and the only grams worth saving are in our Dugout Bag.
Our newly developed, high-volume Molenda tires were key. (Even the fattest in-market tires don’t cut it, and that includes our own line.) Therefore, we equipped this one with 24 x 6.2-inch tires on 100mm rims. Such a large footprint allows us to ride at very low pressure, enabling the ability to float over a geographic smorgasbord of otherworldly terrain. Think rocky dunes, creeping shorelines, frozen beaches, sinuous stretches of snow and the like.
Carefully crafted from our 4130 Chromoly steel, with a bottom bracket height that supplies plenty of clearance for bushwhacking and monster-trucking without losing out on stability
Surly's first bike with a 9-speed Pinion gearbox, an innovative approach to spur gearing that improves reliability and go-anywhere performance with less maintenance
The top tube maximizes standover height and foot dabs into soft substances, while keeping the headtube high so you can set up your rig in a comfortable, all-day-grind riding position
Large volume Surly Molenda Tires on 24 x 100mm Surly Clown Royal Rims inflated by new TPU tubes creates a footprint large enough to float over unrideable (until now) terrain
Clearance for 24 x 6.2” tires, as well as 26 x 5.1”, 27.5 x 4.8”, and 29 x 3”
Comes with rack and fender mounts, as well as accessory mounts on both fork blades to enhance cargo capacity (compatible with our rear disc wide rack)
Weight distribution across front and rear, with a longer back, allows for greater stability
Features Tektro HD-M285 Hydraulic Disc Brake System
Four frame sizes to fit most riders: SM, MD, LG, XL
Includes a dropper for easier on and off, especially on soft surfaces

Surly Moonlander

Surly Moonlander – Lunar Dust Gray

A 24″ steel frame rigid fat bike with modest components.

The Surly Moonlander is back, and it's a sight to behold with a Pinion gearbox and 6.2-inch tires. Find our Surly Moonlander review here...

Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	24″ Aluminum
Drivetrain	Internally Geared Hub
Groupset	Pinion
Brakes	Tektro Hydraulic Disc
Seatpost	Dropper

Frame	4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated BB Standard: Pinion, Press Fit Tire Clearance: 4.8" Color: Lunar Dust Gray
Fork	4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Bottom Bracket	Pinion Gearbox
Headset	Cane Creek 40
Stem	Promax, 31.8, 4-bolt
Handlebar	Surly Terminal
Saddle	WTB Volt Medium
Seatpost	TransX YSP15JL Dropper, 125mm travel (100mm travel on SM) Type: Dropper

Crank	Pinion for Surly crankset 34T, with Pinion high-offset spider
Shifters	Pinion Rotary Shifter
Cassette	FSA Steel 36T Megatooth Chainring
Chain	KMC X10 EPT Anti-Rust
Brakes	Tektro HD-M285, Tektro 180/180, 6-Bolt Type: Tektro Hydraulic Disc

Rims	Surly Clown Royal 24", 100mm wide
Front Hub	Novatec 12x197mm, Thru-Axle, 32h
Rear Hub	Novatec 12x197mm, Thru-Axle, 32h
Tires	Surly Molenda Tire 24 X 6.2”, 60tpi, Tubeless Ready
