New Pig Smell

Dream Tangerine

Surly Lowside Fork, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Surly Lowside Frame, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Lowside is like the grownup version of the bike you rode when you were a kid and still had hopes and dreams and some semblance of ambition. It’s just as happy riding singletrack as it is parked outside your favorite drinking establishment.
Lowside is a single speed mountain bike. Singlespeeding has been a part of Surly’s DNA since day one when we launched the 1x1 Rat Ride. After a lot of Homie Fall Fests and more feats of strength than we can recall, we decided to discontinue it a couple years back. Lowside picks up right where the 1x1 left off.
“Some have dubbed the Lowside the ultimate pub cruiser.”
Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Spec'd in alternating years with 26 x 3” or 27.5 x 2.8” tires, the Lowside remains capable of running either option

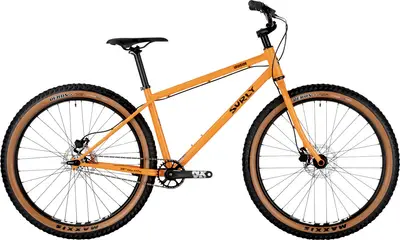

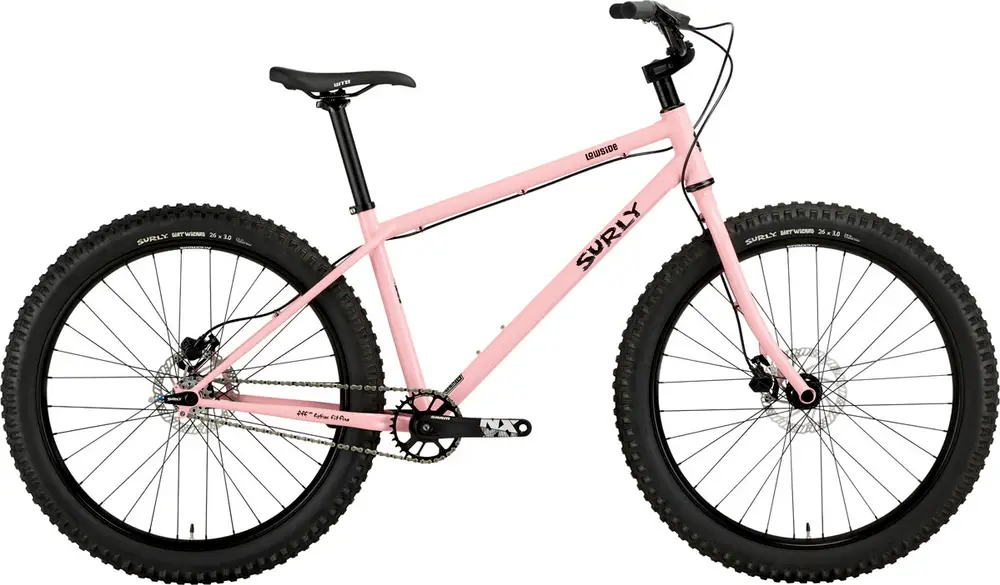

Surly Lowside 26"

A 26″ steel frame hipster bike with modest components and tektro hydraulic disc brakes.

Weight	31.6 lbs
Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	26″ Aluminum
Drivetrain	Single-speed
Groupset	NX
Brakes	Tektro Hydraulic Disc

Frame	Surly Lowside Frame, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated Colors: New Pig Smell; Dream Tangerine
Fork	Surly Lowside Fork, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Bottom Bracket	SRAM PS
Headset	Cane Creek
Stem	Sunday Freeze top load 22.2mm clamp
Handlebar	Surly Sunrise
Saddle	WTB Volt
Seatpost	Promax SP-2019, 0 Offset Type: Rigid

Rear Derailleur	N/A
Front Derailleur	N/A
Crank	SRAM NX 32t
Shifters	N/A
Cassette	Surly 17t w/ spacer kit
Chain	KMC X10
Brakes	Tektro Hydro M275/276 Type: Tektro Hydraulic Disc
Brake Levers	Tektro

Rims	ALEX MD40 26"
Spokes	14G
Front Hub	Novatec 15 x 110mm, 6-bolt, 32h
Rear Hub	Novatec 12 x 148mm, 6-bolt, 32h
Tires	Surly Dirt Wizard 26x3 60tpi
Disc Rotors	Tektro 160/160mm

2024 SurlyLowside 26"

2024 Surly
Lowside 26"
