Dream Tangerine

Surly Lowside Fork, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Surly Lowside Frame, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Lowside is like the grownup version of the bike you rode when you were a kid and still had hopes and dreams and some semblance of ambition. It’s just as happy riding singletrack as it is parked outside your favorite drinking establishment.
Lowside is a single speed mountain bike. Singlespeeding has been a part of Surly’s DNA since day one when we launched the 1x1 Rat Ride. After a lot of Homie Fall Fests and more feats of strength than we can recall, we decided to discontinue it a couple years back. Lowside picks up right where the 1x1 left off.
“Some have dubbed the Lowside the ultimate pub cruiser.”
Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Spec'd in alternating years with 26 x 3” or 27.5 x 2.8” tires, the Lowside remains capable of running either option

Surly Lowside

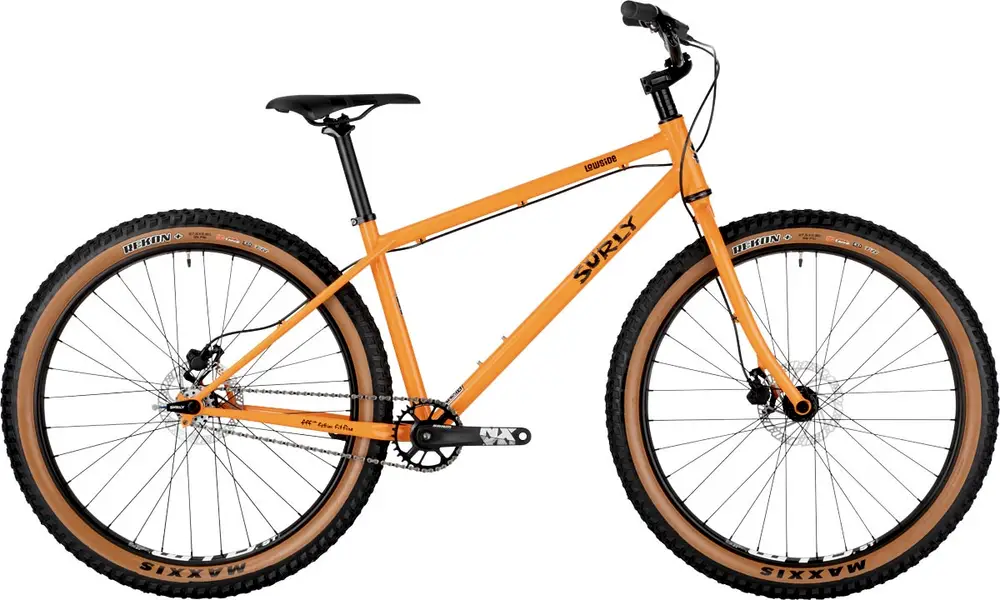

Surly Lowside – Dream Tangerine

Surly Lowside – New Pig Smell

Surly Lowside – Blue Monday

A 650b steel frame hipster bike with modest components and tektro hydraulic disc brakes.

Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	650b Aluminum
Drivetrain	Single-speed
Groupset	NX
Brakes	Tektro Hydraulic Disc

Frame	Surly Lowside Frame, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated Color: Dream Tangerine
Fork	Surly Lowside Fork, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Bottom Bracket	SRAM PS
Headset	Cane Creek
Stem	Sunday Freeze top load 22.2mm clamp
Handlebar	Surly Sunrise
Saddle	Selle Italia Black
Seatpost	2 Bolt, 30.9mm Type: Rigid

Rear Derailleur	N/A
Front Derailleur	N/A
Crank	SRAM NX 32t
Shifters	N/A
Cassette	Surly 17t w/ spacer kit
Chain	KMC X10
Brakes	Tektro Hydro M275/276 Type: Tektro Hydraulic Disc
Brake Levers	Tektro

Rims	WTB ST i35 TCS
Front Hub	Novatec 15x110
Rear Hub	Novatec 12x148
Tires	Maxxis Rekon+ 27.5x2.8 60tpi
Disc Rotors	Tektro 160/160mm
