Lost at Sea Blue

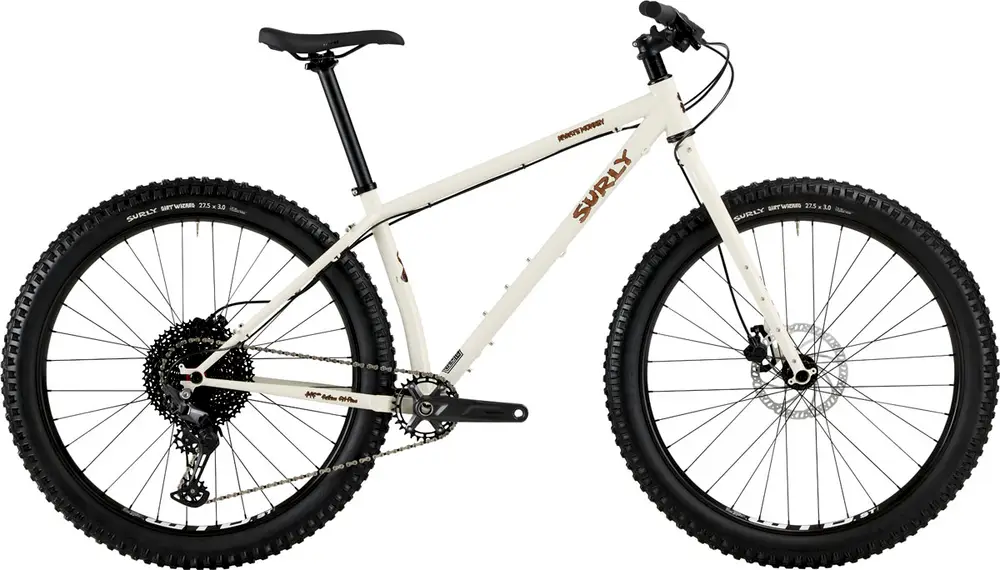

Snow Mold White

Peach Salmon Sundae

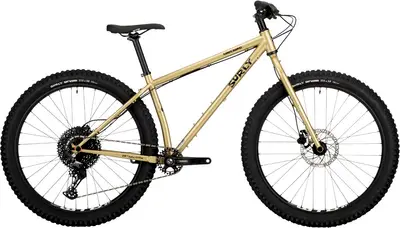

Fool's Gold

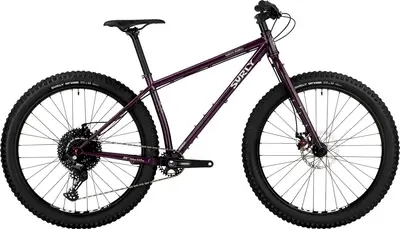

Organic Eggplant

Hi-Viz Black

100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

100% Surly Chromoly Steel. Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated

Surly Dirt Wizard 27.5 x 3", 60 tpi, Tubeless Ready

Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to our computing machine (Thor) it can be set up in approximately 487 different configurations.
Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.
Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
Clearance for 29” x 2.5” or 27.5” x 3” tires

Surly Karate Monkey - Rigid Fork

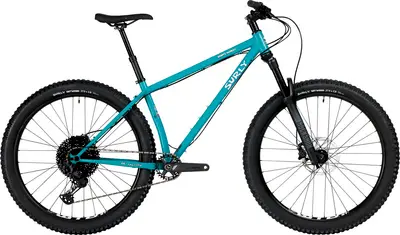

Surly Karate Monkey SUS – Lost at Sea

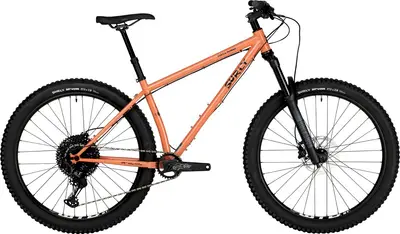

Surly Karate Monkey SUS – Peach Salmon Sundae

A 27.5″ steel frame rigid trail bike with upper mid-range components.

Weight	31.7 lbs
Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	27.5″ Aluminum
Drivetrain	1 × 12
Groupset	Deore
Brakes	Tektro Hydraulic Disc

Frame	100% Surly Chromoly Steel. Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.5" Colors: Lost at Sea Blue; Snow Mold White; Peach Salmon Sundae; Fool's Gold; Organic Eggplant; Hi-Viz Black
Fork	100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Bottom Bracket	Shimano MT501, BSA
Headset	Cane Creek
Stem	Promax DA-296, 31.8mm
Handlebar	Salsa Rustler
Saddle	WTB Volt Medium
Seatpost	Promax SP-2019, 30.9mm Type: Rigid
Grips	Velo Black

Rear Derailleur	Shimano Deore M6100 SGS
Front Derailleur	N/A
Crank	Shimano MT511, 30T
Shifters	Shimano Deore M6100
Cassette	SunRace CSMZ800, 11-51t, 12-spd
Chain	KMC X12, Anti-Rust
Brakes	Tektro HD-M275/HD-M276, 2 piston Type: Tektro Hydraulic Disc

Rims	WTB ST i40 TCS 2.0 27.5"
Front Hub	Novatec 15 x 110mm, 32h
Rear Hub	Novatec 12 x 148mm, 32h
Tires	Surly Dirt Wizard 27.5 x 3", 60 tpi, Tubeless Ready
Disc Rotors	Tektro 180/160, 6-Bolt

2024 SurlyKarate Monkey - Rigid Fork

2024 Surly
Karate Monkey - Rigid Fork
