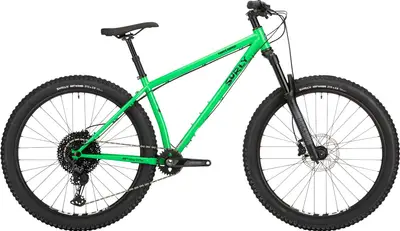

2020 Surly
Karate Monkey
A 27.5″ / 29″ steel frame hardtail trail bike with high-end components.
Manufacturer Price
$2,299| Frame | Steel |
|---|---|
| Suspension | Hardtail, 140mm |
| Fork | RockShox 35 Gold RL |
| Wheels | 27.5″ / 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, Deore |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2017 · Cass Gilbert
We check out Michael Dammer's Surly Karate Monkey Colorado Trail bikepacking rig and its awesome farm-made leather framebag...
| Frame | 100% Surly Chromoly Steel. Custom double butted externally flaired tubing. Horizontal slotted with derailleur hanger, Surly “Gnot Boost” 142 or 148mm hub spacing compatibility Tire Clearance: 2.5" |
|---|---|
| Fork | RockShox 35 Gold RL, 27.5 - 140mm travel, 44mm offset, 15 x 110mm Axle, disc Travel: 140mm Spring Type: Air |
| Bottom Bracket | Shimano, included with crankset |
| Headset | Cane Creek 15 |
| Stem | Promax 31.8 |
| Handlebar | Salsa Rustler without logo |
| Saddle | WTB Volt 142 |
| Seatpost | TranzX SP15, dropper post 120mm travel, 30.9 Type: Dropper |
| Grips | Velo - lock on |
| Rear Derailleur | Shimano Deore XT, RD-M8100, 12-speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Shimano Deore FC-M6100-1, 30t |
| Shifters | Shimano Deore XT, SL-M8100 |
| Cassette | SunRace CSMZ800, 11-51t, 12-Speed |
| Chain | KMC X12, NP/BK |
| Brakes | Tektro Gemini HD-M520 Type: Hydraulic Disc |
| Brake Levers | Tektro Gemini HD-M520 |
| Rims | WTB ST i35 TCS |
|---|---|
| Front Hub | 110mm, Novatec, 32h, Thru-Axle |
| Rear Hub | 148mm, Novatec, 32h, Thru-Axle |
| Tires | Surly Dirt Wizard 27 x 2.8", 60tpi Tubeless Ready |
| Disc Rotors | Tektro 180/160mm |
