Today’s Deals2021 Surface 604
Rook

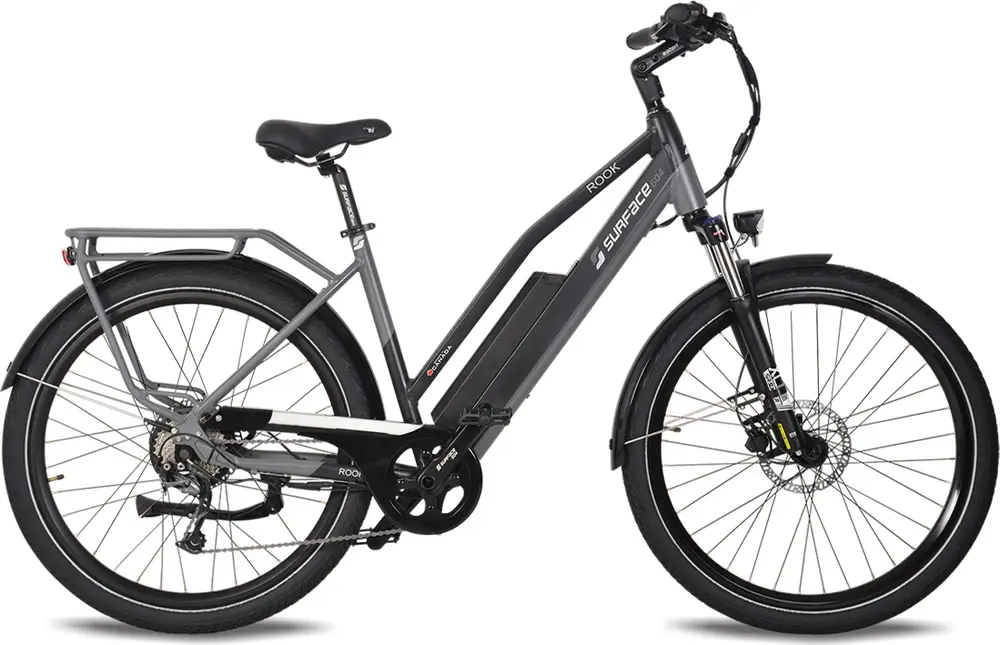

A 650b aluminum frame commuter e-bike with mid-range components and tektro hydraulic disc brakes.
Manufacturer Price
$2,299| Weight | 61.2 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 80mm |
| Fork | Suntour XCT |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | X5 |
| Motor | Bafang 500W 45Nm hub-drive |
| Battery | 672Wh |
| Brakes | Tektro Hydraulic Disc |
3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2022
Price: $2499.00 | Model Year: 2022 | An approachable step-through that comes in two frame sizes and two colors! This hybrid electric bike offers fenders, deluxe rear rack, integrated lights, and two battery options for long range. Relaxed handlebar, adjustable angle stem, high volume 27.5
An approachable step-through that comes in two frame sizes and two colors! This hybrid electric bike offers fenders, deluxe rear rack, integrated lights, and two battery options for long range. Relaxed handlebar, adjustable angle stem, high volume 27.5" tires, and ergonomic touch points offer comfort.
Unique combination of torque sensing pedal assist with trigger throttle that overrides for added power. Settings menu provides adjustable top speed, adjustable assist levels, and adjustable brightness. Two integrated USB charging ports (one on the display and one on the battery pack) to maintain portable electronics.
Excellent stopping power thanks to Tektro Auriga hydraulic disc brakes with large 180mm rotors and motor inhibitors and brake blinking activation. Mid-level derailleur and nine-speed cassette provides plenty of options for urban riding. Excellent safety features including bright headlight with side windows that is mounted up high on the stem, and reflective tires.
The battery charge port is next to the left crank arm which could make it vulnerable. No slap guard on the right chain stay, pedal assist can activate unexpectedly if the chain is bouncing excessively. Limited 11-32 tooth cassette vs. 34 or 42 on some comparable models. Price has risen a bit in recent years, the optional battery upgrade sticks out on the left side a bit vs. being symmetrical.
| Frame | 6061 Aluminum Alloy |
|---|---|
| Fork | SR Suntour XCT Spring Suspension, 80mm Travel, 28mm Steel Stanchions, Lockout Adjust, Preload Adjust, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer Travel: 80mm Spring Type: Coil |
| Headset | Surface 604 Branded, Integrated, Sealed Cartridge, Straight 1-1/8" |
| Stem | Surface 604 Branded, Adjustable Angle 0° to 90°, 70mm Base Height, 110mm Length, One 20mm Tapered Spacer, Two 10mm Spacers, 31.8mm Clamp Diameter |
| Handlebar | Aluminum Alloy, 30mm Low-Rise, 700mm Length, 15° Backsweep |
| Saddle | Selle Royal FreeWay, Gel |
| Seatpost | Aluminum Alloy with Forged Single-Bolt Clamp Type: Rigid |
| Pedals | Wellgo Aluminum Alloy Platform, Wide with Integrated Pins, Black |
| Grips | Stitched Faux Leather, Ergonomic, Black, Locking |
| Crank | Samox, Forged Alloy, 170mm Length, Sealed Cartridge Bearings, Hollow Spindle, 42 Tooth Steel Chainring |
|---|---|
| Shifters | SRAM X5 or Shimano Alivio Triggers on Right |
| Cassette | 9 Speed 1x9 SRAM X5 or Shimano Alivio Derailleur, Shimano CS-HG201-9 Cassette 11-34 Tooth |
| Brakes | Tektro Auriga Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers, Three-Finger Tektro Levers Motor Inhibitors and Adjustable Reach Type: Tektro Hydraulic Disc |
| Rims | Double Wall, 6061 Aluminum Alloy, 35mm Outer Width, 36 Hole, Black |
|---|---|
| Spokes | Stainless Steel, 13 Gauge, Black |
| Tires | Custom Panaracer, 27.5" x 2.40" (60-584) |
| Motor | Weight: 7.7 lbs (3.49 kg), Brand: Bafang RM G020.500.DC, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Peak Output: 750 watts, Torque: 45 Newton meters |
|---|---|
| Battery | Weight: 7.7 lbs (3.49 kg) (672wh Battery, 10lb for 960wh Battery), Brand: Samsung 18650 or 21700 (3,500mAh or 5,000mAh Cells), Reention Dorado Casing or Custom Casing, Voltage: 48 volts, Amp Hours: 14 ah (Optional 20ah), Watt Hours: 672 wh (Optional 960wh), Chemistry: Lithium-ion |
| Display | Surface 604 Branded, Fixed, Adjustable Angle, 3.5" Color, Backlit LCD, USB Type A Charging Port |
