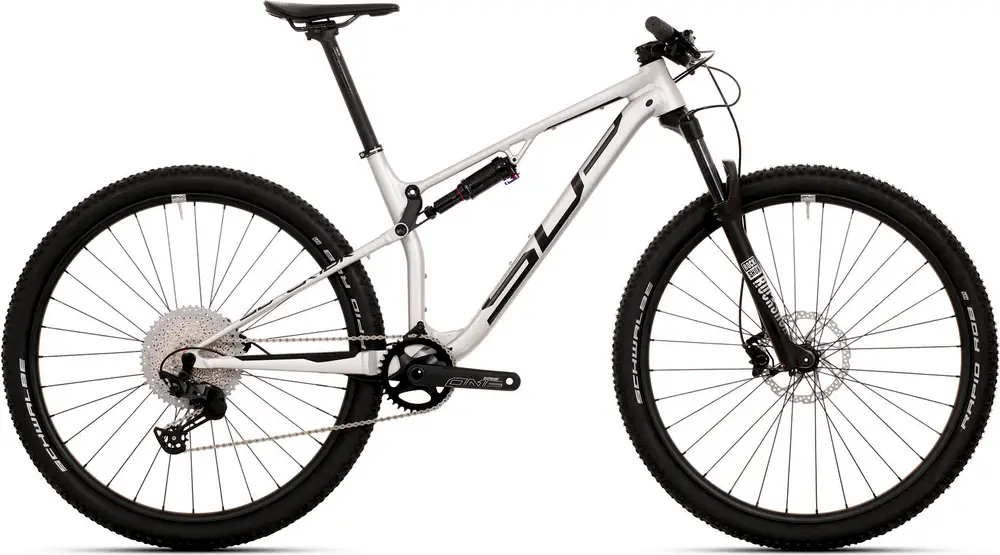

2020 Superior

XF 909

A 29″ aluminum frame full suspension trail bike with upper mid-range components and mechanical disc brakes.
Compare the full range

Weight31.5 lbs
FrameAluminum
SuspensionFull, 130 / 120mm
ForkRockShox Judy Silver TK
ShockRockShox Monarch RT
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetSLX
BrakesMechanical Disc
View on superiorbikes.comLearn about Superior
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
XF 909
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

XF 909

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 6'0"

LG

5'10" – 6'4"

XL

6'2" – 6'7"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Alu X6 Ultralite MTB Trail SU-02, Advanced Geometry, Travel 130 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Alloy swingarm, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready

BB Standard: BB86/BB92, Press Fit

Fork

RockShox Judy Silver TK R, Tapered, SoloAir, 15x110mm axle, 120mm travel

Travel: 120mm

Shock

RockShox Monarch RT, external rebound, 2 position compression (Open/Pedal), size 190x51mm

Travel: 130mm

Bottom Bracket

SHIMANO BB-MT500, Press Fit

Stem

ONE1 Race RAS-D63028 Alloy, 31.8mm, -10°

Handlebar

ONE1 Race, Horizon Bow, 9° backsweep, 5mm rise, 760mm, 31.8mm

Saddle

fizik Taiga

Seatpost

ONE1 Race Alloy, SP 218, 30.9mm

Type: Rigid

Grips

ONE1 VLG-1661D2N, Lock-On

Groupset
Rear Derailleur

SHIMANO SLX RD-M7100 Shadow Plus

Crank

ONE1 TAM38D-B36NC, 36T

Shifters

SHIMANO SLX SL-M7100-R RapidFire Plus, 12-speed

Cassette

SunRace CS-MZ800-12, 11-51T

Chain

KMC X12

Brakes

Mechanical Disc

Type: Mechanical Disc

Wheels
Rims

Stars J25D, 32H

Spokes

Sapim Leader, Stainless Black

Front Hub

SHIMANO ALIVIO HB-MT400, 32H, CENTER LOCK, 15x110mm Thru Axle

Rear Hub

SHIMANO FH-MT400-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE

Tires

Schwalbe Rapid Rob KevlarGuard, 29x2.25"

Rider Notes
Riders Also Viewed

First added September 13

Last updated November 27

Not listed for 917 days
