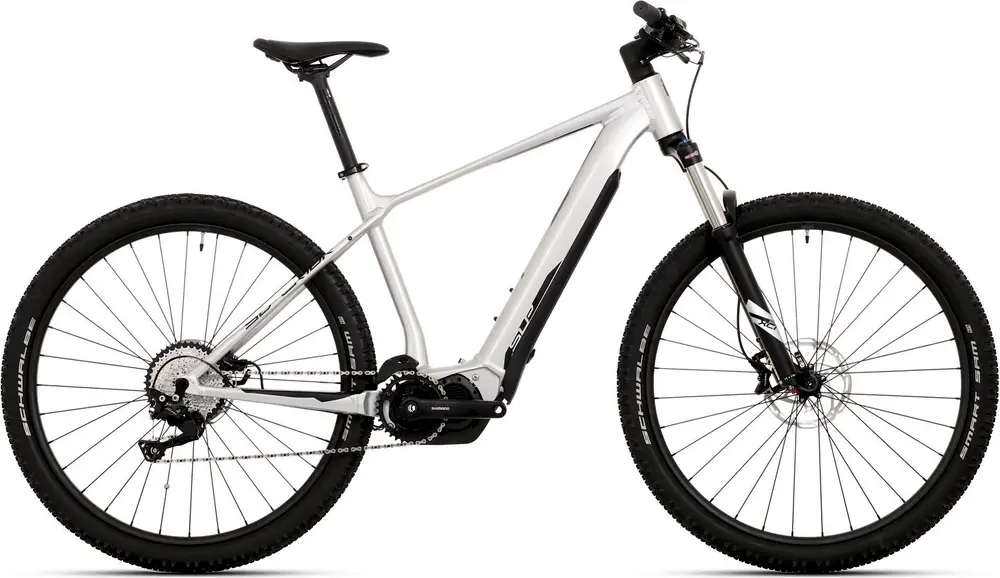

2020 Superior

eXP 8069

A 29″ hardtail trail e-bike with upper mid-range components.
Compare the full range

Weight48.9 lbs
SuspensionHardtail, 120mm
ForkSuntour XCR Air
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetDeore
Battery504Wh
BrakesTektro Hydraulic Disc
View on superiorbikes.comLearn about Superior
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eXP 8069
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

eXP 8069

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
MD

5'6" – 6'0"

LG

5'10" – 6'4"

XL

6'2" – 6'7"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Fork

SR Suntour XCR34 Air, 1-1/8", QR Type, Lockout, 120mm travel

Travel: 120mm

Spring Type: Air

Stem

ONE1 TDS-661 Alloy, 31.8mm, 0°

Handlebar

ONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 720mm, 31.8mm

Saddle

Selle Royal Vivo HRN

Seatpost

ONE1 Race Alloy, SP 218, 30.9mm

Type: Rigid

Grips

ONE1 VLG-1661D2N, Lock-On

Groupset
Rear Derailleur

SHIMANO DEORE RD-M6000 Shadow Plus

Crank

SHIMANO FC-E6100, 34T

Cassette

SHIMANO CS-HG500-10, 11-42T

Chain

KMC e10S

Brakes

TEKTRO HD-M735, hydraulic disc brake

Type: Tektro Hydraulic Disc

Wheels
Rims

Stars J26S, 32H

Spokes

Sapim Galvanized Black

Front Hub

SHIMANO ALIVIO HB-MT400, 32H, CENTER LOCK, 15x110mm Thru Axle

Rear Hub

SHIMANO FH-MT400-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE

Tires

Schwalbe Smart Sam KevlarGuard, 29x2.60"

Electric Components
Battery

DARFON, 36V, 504 Wh, integrated

Charger

DARFON 2A Smart charger
