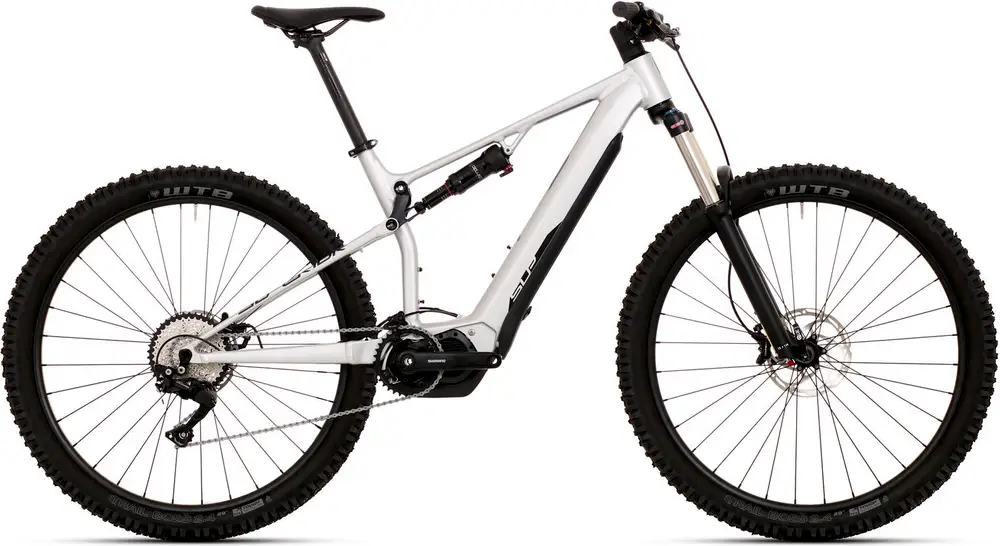

2020 Superior

eXF 8069

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Weight50.9 lbs
FrameAluminum
SuspensionFull, 130 / 140mm
ForkSuntour XCR Air
ShockRockShox Deluxe Select+
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetDeore
Battery504Wh
BrakesTektro Hydraulic Disc
View on superiorbikes.comLearn about Superior
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
eXF 8069
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

eXF 8069

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
MD

5'6" – 6'0"

LG

5'10" – 6'4"

XL

6'2" – 6'7"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
EMTB Forums
2021 Superior eXF 9039 review

Sep 2021 · Knut Nes

The Superior eXF 9039 is a mid travel 29er emtb with a 140 mm fork and 130 mm travel rear. We’ve ridden a few short or mid travel emtbs before, and we haven’t always seen the point. These were just as long, and heavy as the longer travel bikes. Just reducing suspension travel doesn’t make it much more nimble or playful. The eXF 9039 makes sense though! When looking closer at the bike we find it’s got very short 433 …

Read Review

Geometry
Specs
Build
Frame

Alu X6 Ultralite MTB Trail SUE03, Advanced e-MTB Geometry, Travel 130 mm, SHIMANO STEPS ready, NEW integrated battery, 3D alloy one piece link, Alloy swingarm, SR dropout, Boost 12x148 mm, Inner cable routing, Dropped seat post ready

BB Standard: STEPS, Press Fit

Fork

SR Suntour XCR34 Air, 1-1/8", QR Type, Lockout, 140mm travel

Travel: 140mm

Spring Type: Air

Shock

RockShox Deluxe Select Plus, remote Lockout, external rebound, 2 position compression (Open/Lock), size 210x50mm

Travel: 130mm

Bottom Bracket

STEPS, press-fit

Stem

ONE1 TDS-661 Alloy, 31.8mm, 0°

Handlebar

ONE1 Alloy, MTB AL-320BT, 3° upsweep, 9° backsweep, 20mm rise, 760mm, 31.8mm

Saddle

Selle Royal Vivo HRN

Seatpost

ONE1 Race Alloy, SP 218, 30.9mm

Type: Rigid

Grips

ONE1 VLG-1661D2N, Lock-On

Groupset
Rear Derailleur

SHIMANO DEORE RD-M6000 Shadow Plus

Crank

SHIMANO FC-E6100, 34T

Cassette

SHIMANO CS-HG500-10, 11-42T

Chain

KMC e10S

Brakes

TEKTRO HD-M735, hydraulic disc brake

Type: Tektro Hydraulic Disc

Wheels
Rims

Stars J26S, 32H

Spokes

Sapim Galvanized Black

Front Hub

SHIMANO ALIVIO HB-MT400, 32H, CENTER LOCK, 15x110mm Thru Axle

Rear Hub

SHIMANO FH-MT400-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE

Tires

WTB Ranger Comp, 29x2.40"

Electric Components
Battery

DARFON, 36V, 504 Wh, integrated

Charger

DARFON 2A Smart charger
