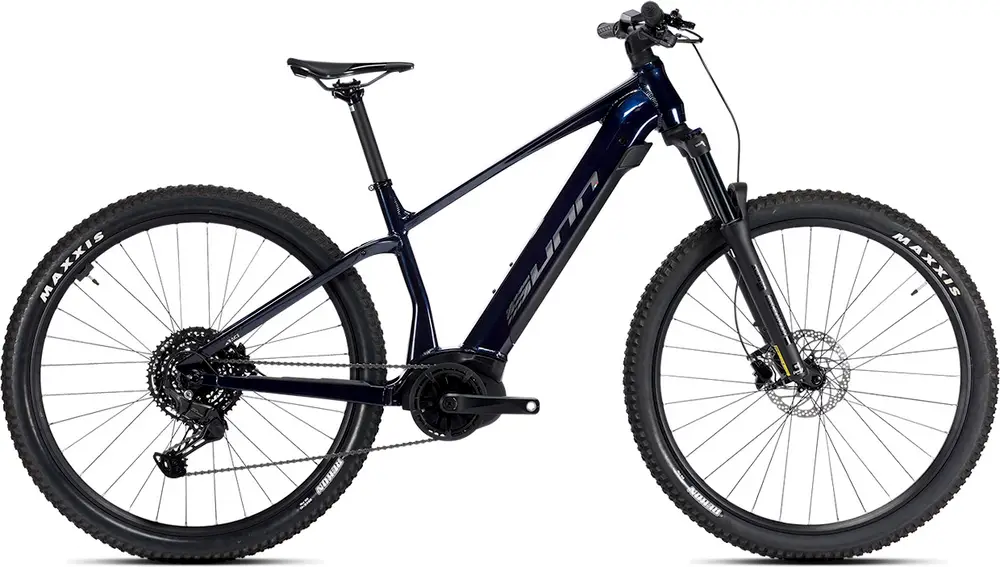

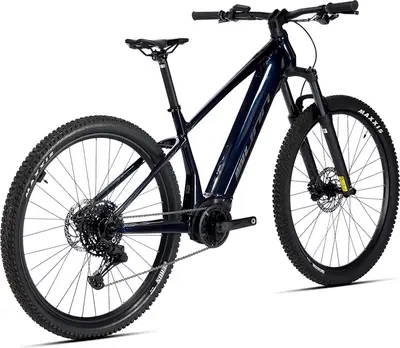

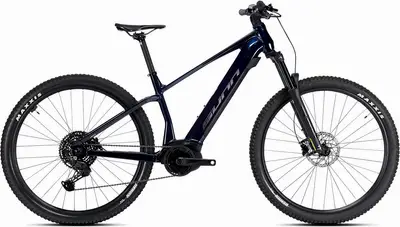

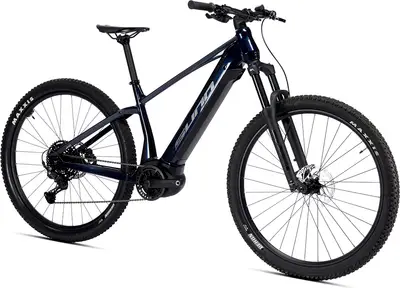

2025 SUNN

RAGE S1

A 29″ aluminum frame hardtail trail e-bike with mid-range components.
Compare the full range

Manufacturer Price

€3,199($3,720)
FrameAluminum
SuspensionHardtail, 130mm
ForkSuntour XCM
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetCUES
MotorBosch 250W 75Nm mid-drive
BatteryBosch 625Wh
BrakesShimano Hydraulic Disc
View on sunn.frLearn about SUNN
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
RAGE S1
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

RAGE S1

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full RAGE model range

View Comparison
Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

ALLOY 6061DB EDGE TUBING 29” INTEGRATED POWERTUBE HORIZONTAL 625Wh FULL INTERNAL CABLE ROUTING

BB Standard: Bosch, Press Fit

Fork

SR SUNTOUR XCM 34 BOOST, 130MM, 15x110MM

Travel: 130mm

Spring Type: Coil

Bottom Bracket

Bosch, press-fit

Stem

3D FORGED ALLOY 31.8, 45MM INTERNAL CABLE ROUTING

Handlebar

3D FORGED ALLOY 31.8, 45MM INTERNAL CABLE ROUTING

Saddle

SUNN BY DDK

Seatpost

AL 6061 31.6x350MM

Type: Rigid

Groupset
Rear Derailleur

SHIMANO CUES DU6000 GS/Shadow 10v

Crank

FSA CK-220 165MM MIRANDA 34T FOR BOSCH

Cassette

SHIMANO CS-LG300 10V 11-48T

Brakes

SHIMANO MT200 180/180

Type: Shimano Hydraulic Disc

Wheels
Rims

MACH1 CROSS R23 21c 32T

Front Hub

SHIMANO HB-TC500-15-B, 15x110MM, CENTERLOCK SHIMANO FH-TC500-HM-B, 12x148MM, CENTERLOCK

Rear Hub

SHIMANO HB-TC500-15-B, 15x110MM, CENTERLOCK SHIMANO FH-TC500-HM-B, 12x148MM, CENTERLOCK

Tires

MAXXIS REKON 29 x 2,40

Electric Components
Motor

BOSCH PERFORMANCE LINE SMART SYSTEM 250W/75Nm

Battery

BOSCH POWERTUBE 625WH
