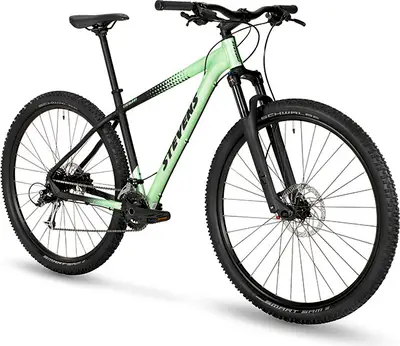

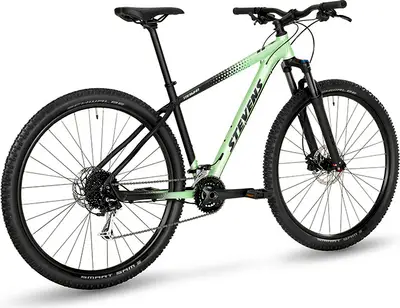

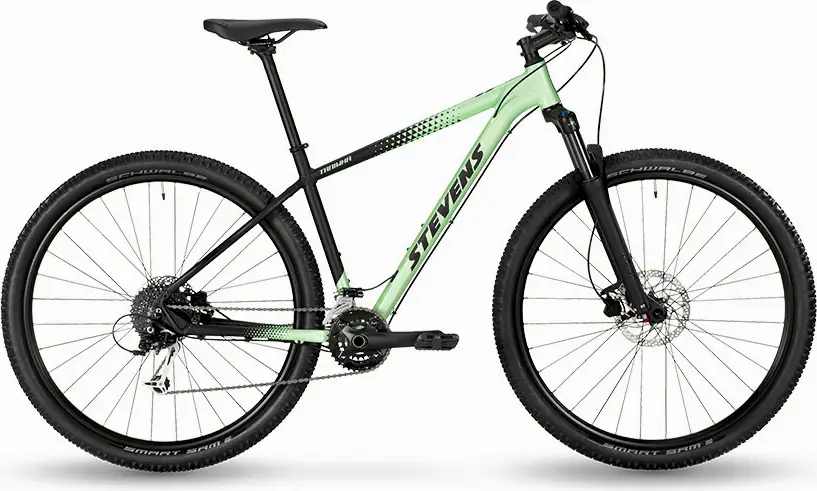

Ice Green Black

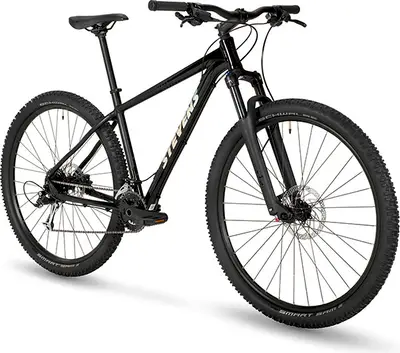

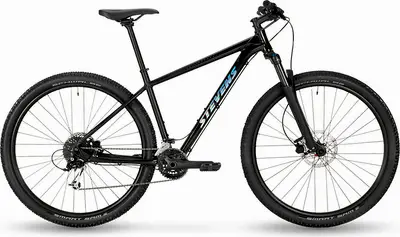

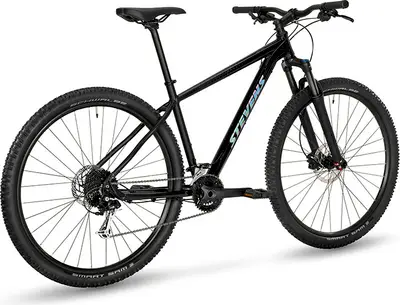

Stealth Black

SunRace CSM98, 9-speed, Combination: 11-13-15-18-21-24-28-32-36 T

27.5": Oxygen Scorpo | 29": Shimano FC-MT210-2, 36-22 T, BB type: BSA 73 mm / 2-Piece

SR Suntour X1 LOR-R, Travel: 100 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6"

Aluminium 6061 DB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: internal (shifting)/external (brake), Rack mounts

Oxygen Driver, Width: 740 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm

STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30

Sunrace RDM91, 8/9-speed, Total capacity: 40 T

Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm

Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 6°

Schwalbe Smart Sam Active-Line, Tire size: 27.5": 57-584 | 29": 57-622, SBC compound, KevlarGuard

This comfortable STEVENS hardtail is an attractive offer for you first off-road miles. Depending on frame size with either 27.5 or 29" wheels. Thanks to reliable and robust SunRace, Shimano, Tektro and Oxygen components rides will be fun for a long time – even in frame size 24 inch.

Stevens Taniwha

A 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.

Weight	31.7 lbs
Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour X1
Wheels	27.5″ Aluminum
Drivetrain	2 × 9
Groupset	SunRace M9
Brakes	Tektro Hydraulic Disc

Frame	Aluminium 6061 DB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: internal (shifting)/external (brake), Rack mounts BB Standard: BSA, 73mm, Threaded Colors: Ice Green Black; Stealth Black
Fork	SR Suntour X1 LOR-R, Travel: 100 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6" Travel: 100mm Spring Type: Coil
Bottom Bracket	BSA, 73mm, threaded
Headset	STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Stem	Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 6°
Handlebar	Oxygen Driver, Width: 740 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Saddle	Oxygen Raceline
Seatpost	Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	ATB Pro Reflex

Rear Derailleur	Sunrace RDM91, 8/9-speed, Total capacity: 40 T
Front Derailleur	Sunrace FDM966, 2-speed
Crank	27.5": Oxygen Scorpo \| 29": Shimano FC-MT210-2, 36-22 T, BB type: BSA 73 mm / 2-Piece
Shifters	Sunrace DLM903, 2-speed
Cassette	SunRace CSM98, 9-speed, Combination: 11-13-15-18-21-24-28-32-36 T
Chain	Shimano CN-HG53
Brakes	Tektro HD-T275, Hydraulic disc brake Type: Tektro Hydraulic Disc
Brake Levers	Tektro HD-T275, 3 finger

Rims	Oxygen RM-M19, ETRTO: 19 x 584
Front Hub	Shimano HB-TX505, Axle: QR9x100 mm
Rear Hub	Shimano FH-TX505-8, Axle: QR10x135 mm
Tires	Schwalbe Smart Sam Active-Line, Tire size: 27.5": 57-584 \| 29": 57-622, SBC compound, KevlarGuard

2024 StevensTaniwha

2024 Stevens
Taniwha
