Light Olive

SRAM Force AXS, ED-FRC-D2, Hydraulic disc brake, Flatmount standard

SRAM XG-1271, XG-1271-D1, 12-speed, Combination: 10-11-13-15-17-19-21-24-28-32-38-44 T

SRAM Force 1 D2 DUB, FC-FRC-1W-D2, 40 T, BB type: Pressfit BB86

STEVENS Full Carbon SL, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: flatmount disc

Carbon SL Fiber, O.L.D.: 142 mm, Brake: flatmount disc, BB: Pressfit BB86, Front derailleur mount: braze-on, Cable routing: internal, Fender + rack mounts

Oxygen Scorpo Aero Gravel, Drop: 122 mm, Reach: 70 mm, Clamp: 31.8 mm, Flare: 8°

Deda DCR 1 1/8"-1 1/2", Upper bearing cup: IS52/28.6, Lower bearing cup: IS52/40

SRAM Force AXS, RD-FRC-1E-D2, 12-speed, Orbit™ chain management, Total capacity: 44 T

Zipp 303 S DB, Axle: QR12x100 mm, Tubeless, Hookless

Oxygen Scorpo, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm

Deda Superbox, Handlebar clamp: 31.8 mm, Angle: -8°, Internal cable routing (DCR)

Continental Terra Speed, Tire size: 40-622, Foldable, Black-Chili Compound, ProTection, Tubeless Ready

For the new model year, we are expanding our popular Camino gravel bike series, which has won awards from bike magazines, with a further equipment variant. With the Camino AXS, we are adding an even sportier version to our Camino and Camino Pro. Made for gravel races and particularly sporty laps on varying terrain. The Camino AXS is the "racy" version of the popular Camino Pro and comes with extremely high-quality equipment details such as the new SRAM Force AXS 12-speed wireless shifting group. With a 40-tooth chainring and a 10-44-tooth cassette, it offers a very wide range for fast stages on the flat as well as for climbs in the mountains. The sporty appearance of the bike is supported by the Zipp 303 S wheels with 45 millimetre rim height. They offer excellent aerodynamic properties, optimised stiffness and they are also tubeless-ready. The lightweight carbon frame of the Camino AXS is equipped with a multitude of mounting eyelets on the top tube, down tube and seat tube. They allow extensive mounting of bikepacking accessories and bags.

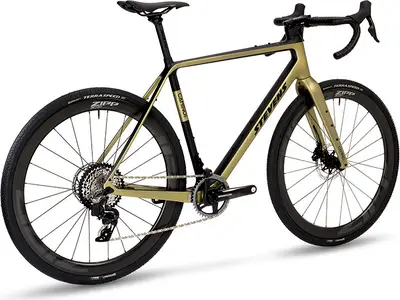

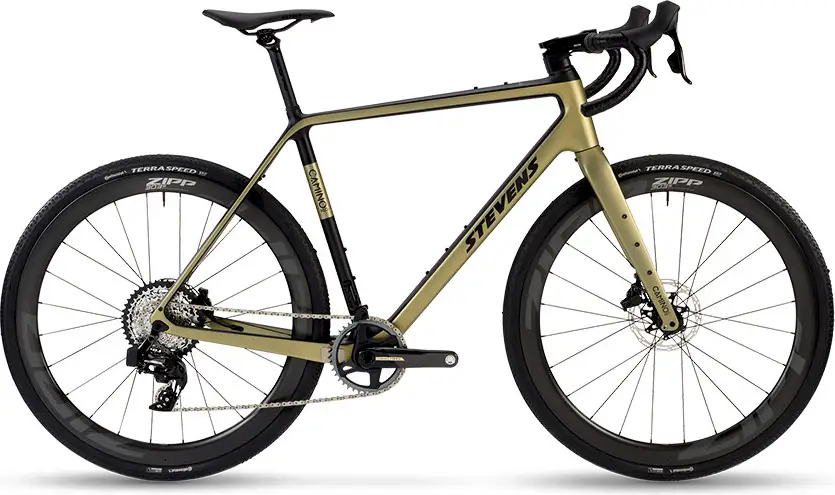

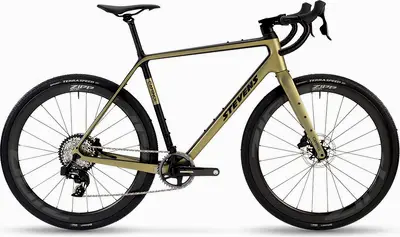

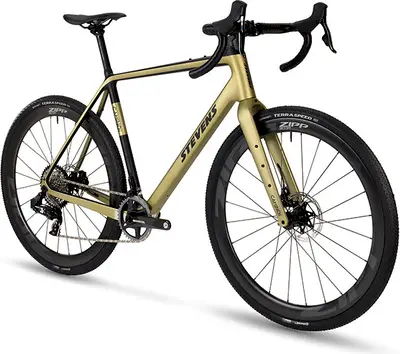

Stevens Camino AXS

48cm

51cm

54cm

56cm

58cm

61cm

A carbon frame gravel bike with high-end components and sram force hydraulic disc brakes.

Weight	18.5 lbs
Frame	Carbon
Suspension	Rigid
Fork	Carbon
Wheels	700c Carbon
Drivetrain	1 × 12 Electronic
Groupset	Force, Force eTap
Brakes	SRAM Force Hydraulic Disc

Frame	Carbon SL Fiber, O.L.D.: 142 mm, Brake: flatmount disc, BB: Pressfit BB86, Front derailleur mount: braze-on, Cable routing: internal, Fender + rack mounts BB Standard: BB86/BB92, Press Fit Color: Light Olive
Fork	STEVENS Full Carbon SL, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: flatmount disc
Bottom Bracket	BB86/BB92, press-fit
Headset	Deda DCR 1 1/8"-1 1/2", Upper bearing cup: IS52/28.6, Lower bearing cup: IS52/40
Stem	Deda Superbox, Handlebar clamp: 31.8 mm, Angle: -8°, Internal cable routing (DCR)
Handlebar	Oxygen Scorpo Aero Gravel, Drop: 122 mm, Reach: 70 mm, Clamp: 31.8 mm, Flare: 8°
Saddle	Oxygen Triton
Seatpost	Oxygen Scorpo, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm Type: Rigid

Rear Derailleur	SRAM Force AXS, RD-FRC-1E-D2, 12-speed, Orbit™ chain management, Total capacity: 44 T
Crank	SRAM Force 1 D2 DUB, FC-FRC-1W-D2, 40 T, BB type: Pressfit BB86
Shifters	SRAM Force AXS HRD
Cassette	SRAM XG-1271, XG-1271-D1, 12-speed, Combination: 10-11-13-15-17-19-21-24-28-32-38-44 T
Chain	SRAM Force, CN-FRC-D1, Power-Lock
Brakes	SRAM Force AXS, ED-FRC-D2, Hydraulic disc brake, Flatmount standard Type: SRAM Force Hydraulic Disc

Rims	Zipp 303 S DB, Axle: QR12x100 mm, Tubeless, Hookless
Tires	Continental Terra Speed, Tire size: 40-622, Foldable, Black-Chili Compound, ProTection, Tubeless Ready
