Royal Purple

Chrome Red Black

Shimano CS-HG31, 8-speed, Combination: 11-13-15-18-21-24-28-32 T

Oxygen Aluminium Pro, 32 T, BB type: BSA 68 mm / Square taper (118 mm axle length), Chainguard

STEVENS Alu Unicrown, Aluminium steerer, Steerer 1 1/8", O.L.D.: 100 mm, Brake: V-Brake

Aluminium 6061 TB, O.L.D.: 135 mm, Brake: cantilever, BB: BSA 68 mm, Cable routing: external, Rack mounts

Oxygen Pistol, Width: 560 mm, Backsweep: 9°, Rise: 12 mm, Clamp: 25.4 mm

STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30

Shimano Altus, RD-M310, 8-speed, Total capacity: 43 T

Oxygen Aluminium, Length: 250 mm, Diameter: 27.2 mm, Insertion depth: min. 80 mm

Shimano SL-RS45-8R Revo, Revo shifter, 8-speed

Schwalbe Billy Bonkers, Tire size: 50-507, Active Line, KevlarGuard, LiteSkin

From now on your favorite off-road toy won't weigh any more than Daddy's hardtail. It's because STEVENS dug deep into its bag of tricks and used a compact frame, aluminium fork and extra light drivetrain to easily undercut the 10kg threshold. See for yourself how it turned out!

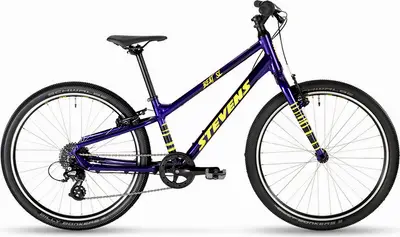

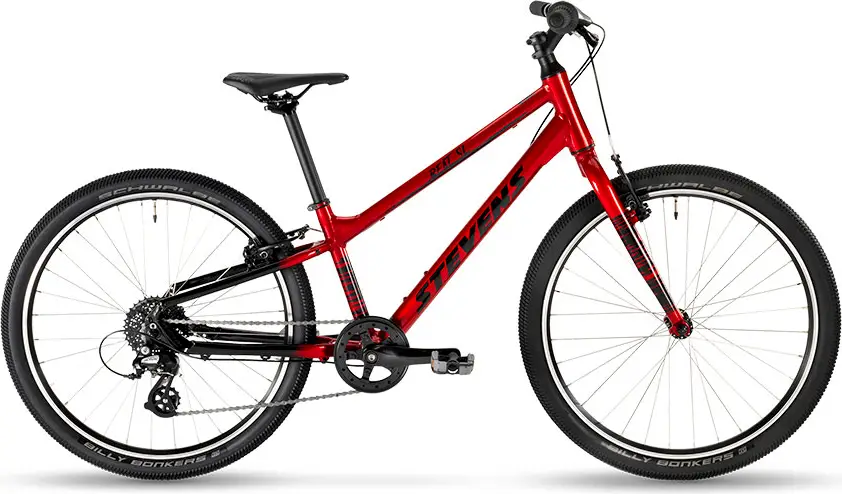

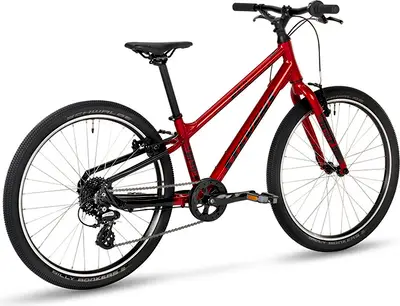

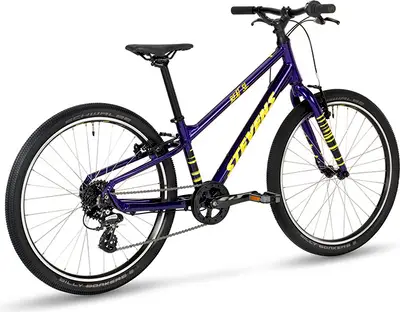

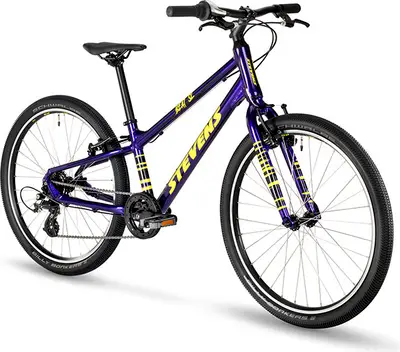

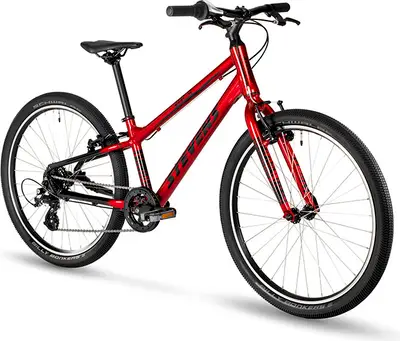

Stevens Beat SL 24”

12.5"

A 24″ aluminum frame general youth bike with modest components and tektro rim brakes.

Weight	21.6 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	24″ Aluminum
Drivetrain	1 × 8
Groupset	Tourney, Altus
Brakes	Tektro Rim

Frame	Aluminium 6061 TB, O.L.D.: 135 mm, Brake: cantilever, BB: BSA 68 mm, Cable routing: external, Rack mounts BB Standard: BSA, 68mm, Threaded Colors: Royal Purple; Chrome Red Black
Fork	STEVENS Alu Unicrown, Aluminium steerer, Steerer 1 1/8", O.L.D.: 100 mm, Brake: V-Brake
Bottom Bracket	BSA, 68mm, threaded
Headset	STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Handlebar	Oxygen Pistol, Width: 560 mm, Backsweep: 9°, Rise: 12 mm, Clamp: 25.4 mm
Saddle	Oxygen Sportline
Seatpost	Oxygen Aluminium, Length: 250 mm, Diameter: 27.2 mm, Insertion depth: min. 80 mm Type: Rigid
Pedals	KID Reflex

Rear Derailleur	Shimano Altus, RD-M310, 8-speed, Total capacity: 43 T
Crank	Oxygen Aluminium Pro, 32 T, BB type: BSA 68 mm / Square taper (118 mm axle length), Chainguard
Shifters	Shimano SL-RS45-8R Revo, Revo shifter, 8-speed
Cassette	Shimano CS-HG31, 8-speed, Combination: 11-13-15-18-21-24-28-32 T
Chain	KMC Z8.3
Brakes	Tektro STB-01, V-Brake Type: Tektro Rim
Brake Levers	Tektro TS325A, 3 finger

Rims	Oxygen RM-M17, ETRTO: 17 x 507
Front Hub	Formula FM-21, Axle: QR9x100 mm
Rear Hub	Formula FM-32, Axle: QR9x135 mm
Tires	Schwalbe Billy Bonkers, Tire size: 50-507, Active Line, KevlarGuard, LiteSkin

2024 StevensBeat SL 24”

2024 Stevens
Beat SL 24”
