Olive

Shimano CS-HG201, 9-speed, Combination: 11-13-15-17-19-21-24-28-32 T

Shimano FC-T4010-8, 48-36-26 T, BB type: BSA 73 mm / Octalink (axle length: 126 mm), Chainguard

SR Suntour NCX-D LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts

Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Cable routing: external, Fender + rack mounts

Oxygen Driver, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm

STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30

Sunrace RDM91, 8/9-speed, Total capacity: 40 T

Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm

Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°

Schwalbe Smart Sam Active-Line, Tire size: 42-622, SBC compound, KevlarGuard

The 5X' streamlined appearance is straight forward yet comfortable - with our light, triple butted aluminium frame and the finely tuned suspension fork. Schwalbe tires run smoothly over any solid ground - and nothing can stop them, except the powerful hydraulic brakes with their shiny discs.

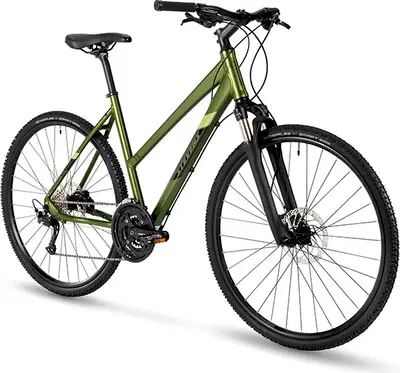

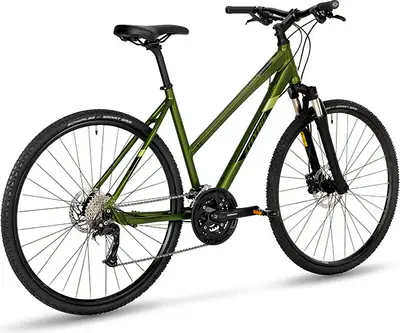

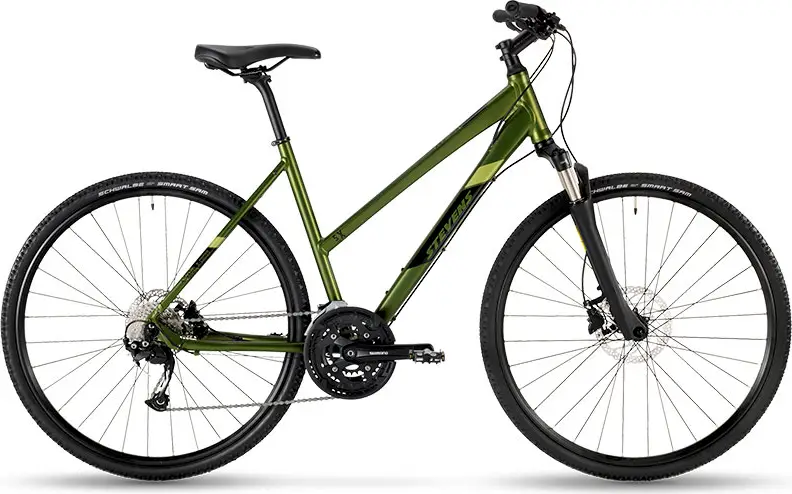

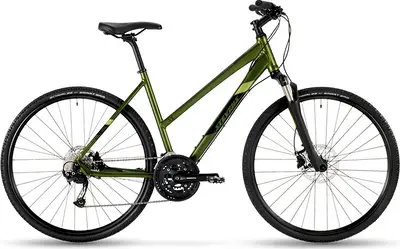

Stevens 5X LT

46cm

50cm

54cm

A 700c aluminum frame hybrid bike with mid-range components and tektro hydraulic disc brakes.

Weight	30.6 lbs
Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NCX
Wheels	700c Aluminum
Drivetrain	3 × 9
Groupset	Alivio, SunRace M9
Brakes	Tektro Hydraulic Disc

Frame	Aluminium 6061 TB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Cable routing: external, Fender + rack mounts BB Standard: BSA, 73mm, Threaded Color: Olive
Fork	SR Suntour NCX-D LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts Travel: 63mm Spring Type: Coil
Bottom Bracket	BSA, 73mm, threaded
Headset	STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Stem	Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar	Oxygen Driver, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm
Saddle	Oxygen Lynx
Seatpost	Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	ATB Alu Comp Reflex

Rear Derailleur	Sunrace RDM91, 8/9-speed, Total capacity: 40 T
Front Derailleur	Sunrace FDM924, 3-speed
Crank	Shimano FC-T4010-8, 48-36-26 T, BB type: BSA 73 mm / Octalink (axle length: 126 mm), Chainguard
Shifters	Sunrace DLM903, 9-speed
Cassette	Shimano CS-HG201, 9-speed, Combination: 11-13-15-17-19-21-24-28-32 T
Chain	Shimano CN-HG53
Brakes	Tektro HD-T275, Hydraulic disc brake Type: Tektro Hydraulic Disc
Brake Levers	Tektro HD-T275, 3 finger

Rims	Oxygen RM-M19, ETRTO: 19 x 622
Front Hub	Formula CL-25, Axle: QR9x100 mm
Rear Hub	Shimano FH-M3050, Axle: QR10x135 mm
Tires	Schwalbe Smart Sam Active-Line, Tire size: 42-622, SBC compound, KevlarGuard

2024 Stevens5X LT

2024 Stevens
5X LT
