Phantom Grey

Shimano CS-HG31, 8-speed, Combination: 11-13-15-17-20-23-26-30 T

Shimano Tourney, FC-TX801, 48-38-28 T, BB type: BSA 73mm / 2-Piece

SR Suntour NEX-P, Travel: 63 mm, Coil spring, Steerer 1 1/8", O.L.D.: 100 mm, Brake: cantilever

Aluminium 6061, O.L.D.: 135 mm, Brake: cantilever, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: external, Fender + rack mounts

Oxygen Driver, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm

STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30

Shimano Acera, RD-M3020-8, 7/8-speed, Total capacity: 40 T

Oxygen Aluminium, Length: 250 mm, Diameter: 27.2 mm, Insertion depth: min. 80 mm

Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°

Schwalbe Smart Sam Active-Line, Tire size: 42-622, SBC compound, KevlarGuard

And nothing overcomes the limits of routine as easily as a nimble, reliable bike. The adjustable suspension fork smoothly irons out the creases of the city and the deep wrinkles of the countryside. Shifting and changing gears? The Shimano 3x8-speed drivetrain takes care of that intuitively.

Weight	29.8 lbs
Frame	Aluminum
Wheels	700c Aluminum
Drivetrain	3 × 8
Groupset	Tourney, Acera
Brakes	Tektro Rim

Frame	Aluminium 6061, O.L.D.: 135 mm, Brake: cantilever, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: external, Fender + rack mounts BB Standard: BSA, 73mm, Threaded Color: Phantom Grey
Fork	SR Suntour NEX-P, Travel: 63 mm, Coil spring, Steerer 1 1/8", O.L.D.: 100 mm, Brake: cantilever Spring Type: Coil
Bottom Bracket	BSA, 73mm, threaded
Headset	STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Stem	Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar	Oxygen Driver, Width: 630 mm, Backsweep: 15°, Rise: 20 mm, Clamp: 31.8 mm
Saddle	Oxygen Lynx
Seatpost	Oxygen Aluminium, Length: 250 mm, Diameter: 27.2 mm, Insertion depth: min. 80 mm Type: Rigid
Pedals	ATB Pro Reflex

Rear Derailleur	Shimano Acera, RD-M3020-8, 7/8-speed, Total capacity: 40 T
Front Derailleur	Shimano Altus, FD-M310-M6, 3-speed
Crank	Shimano Tourney, FC-TX801, 48-38-28 T, BB type: BSA 73mm / 2-Piece
Shifters	Shimano ST-EF500, 3-speed, 2 finger
Cassette	Shimano CS-HG31, 8-speed, Combination: 11-13-15-17-20-23-26-30 T
Chain	KMC Z8.3
Brakes	Tektro STB-01, V-Brake Type: Tektro Rim

Rims	Oxygen COMP A17, ETRTO: 17 x 622
Front Hub	Formula FM-21, Axle: QR9x100 mm
Rear Hub	Formula FM-32, Axle: QR9x135 mm
Tires	Schwalbe Smart Sam Active-Line, Tire size: 42-622, SBC compound, KevlarGuard

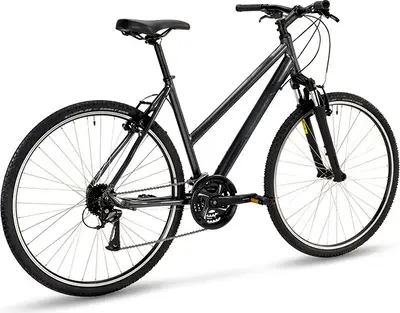

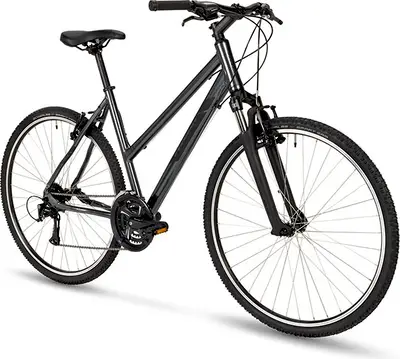

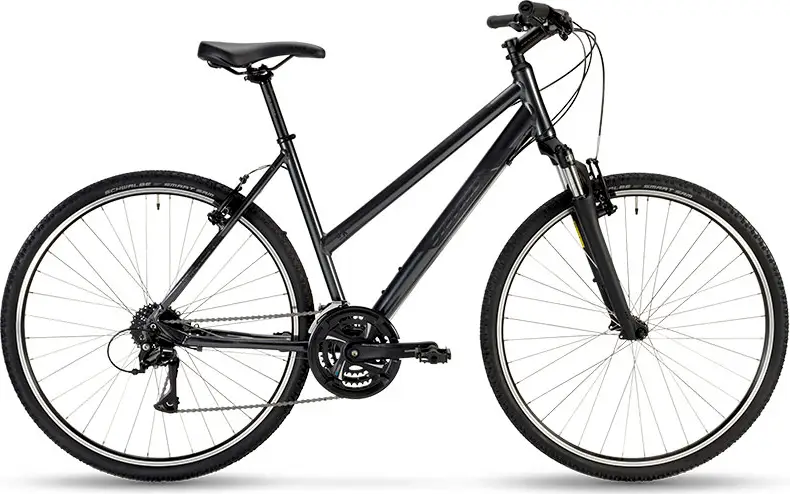

2024 Stevens3X LT

2024 Stevens
3X LT
