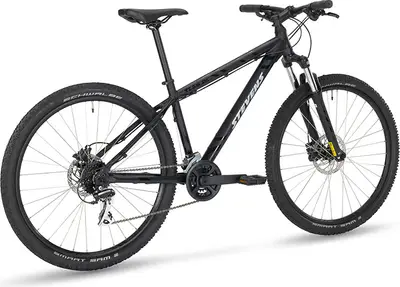

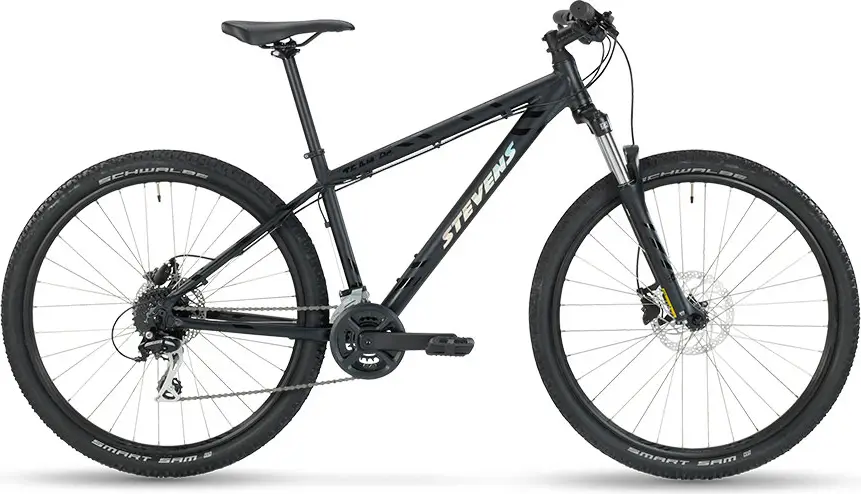

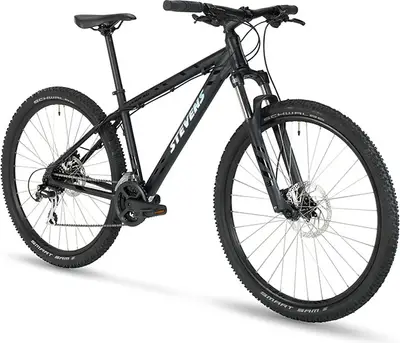

Stealth Black

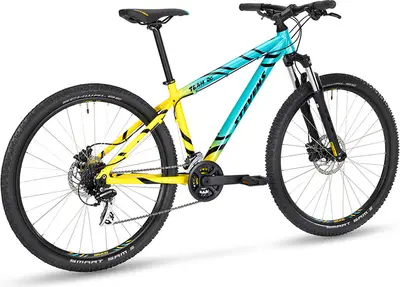

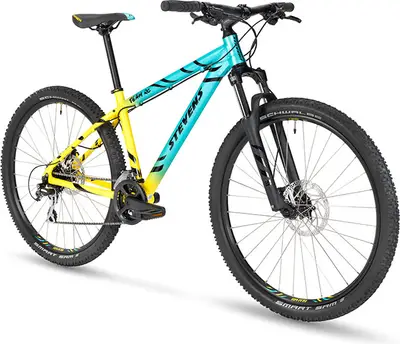

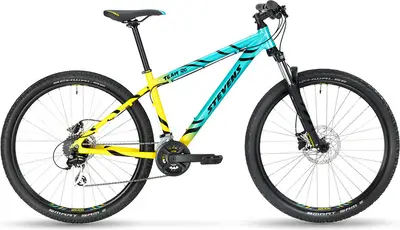

Lemon Turquoise

Front: Shimano BR-MT200, Hydraulic disc brake, Rear: Shimano BR-MT200, Hydraulic disc brake

Shimano CS-HG200-8, 8-speed, Combination: 12-14-16-18-21-24-28-32 T

Oxygen Aluminium Forged, 36-22 T, BB type: BSA 73 mm / Square Taper (axle length: 122 mm), Chainguard

Aluminium 6061 DB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: external, Rack mounts

Oxygen Scorpo, Width: 640 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm

STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30

Shimano Acera Shadow, RD-M360-SGS, 8-speed, Total capacity: 43 T

Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm

Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 6°

Schwalbe Smart Sam Active-Line, Tire size: 54-584, SBC compound, KevlarGuard

When the aspiring junior MTB racers are ready for 27.5" wheels, the STEVENS Team RC is his ideal tool for sportive cross country rides. No need to worry about reliability or longevity, because we only equip our bikes with trustworthy parts. Beginning with Shimano's hydraulic disc brakes ...

Stevens Team RC 27.5”

A 27.5″ aluminum frame general youth bike with modest components and shimano hydraulic disc brakes.

Weight	30.2 lbs
Frame	Aluminum
Suspension	Rigid
Wheels	27.5″ Aluminum
Drivetrain	2 × 8
Groupset	Acera, Altus
Brakes	Shimano Hydraulic Disc

Frame	Aluminium 6061 DB, O.L.D.: 135 mm, Brake: IS disc, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: external, Rack mounts BB Standard: BSA, 73mm, Threaded Colors: Stealth Black; Lemon Turquoise
Bottom Bracket	BSA, 73mm, threaded
Headset	STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Stem	Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 6°
Handlebar	Oxygen Scorpo, Width: 640 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm
Saddle	Oxygen Raceline
Seatpost	Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	MTB Flatpedal Reflex

Rear Derailleur	Shimano Acera Shadow, RD-M360-SGS, 8-speed, Total capacity: 43 T
Front Derailleur	Shimano Altus, FD-M315-TS, 2-speed
Crank	Oxygen Aluminium Forged, 36-22 T, BB type: BSA 73 mm / Square Taper (axle length: 122 mm), Chainguard
Shifters	Shimano SL-M315, 2-speed
Cassette	Shimano CS-HG200-8, 8-speed, Combination: 12-14-16-18-21-24-28-32 T
Chain	Shimano HG-40
Brakes	Front: Shimano BR-MT200, Hydraulic disc brake, Rear: Shimano BR-MT200, Hydraulic disc brake Type: Shimano Hydraulic Disc
Brake Levers	Shimano BL-MT200, 3 finger

Rims	Oxygen RM-M19, ETRTO: 19 x 507
Front Hub	Shimano HB-TX505, Axle: QR9x100 mm
Rear Hub	Shimano FH-TX505-8, Axle: QR10x135 mm
Tires	Schwalbe Smart Sam Active-Line, Tire size: 54-584, SBC compound, KevlarGuard

2022 StevensTeam RC 27.5”

2022 Stevens
Team RC 27.5”
