Blue Violet Black

Front: Shimano Deore XT, BR-M8100, Hydraulic disc brake, Rear: Shimano Deore XT, BR-M8100, Hydraulic disc brake

SRAM XG 1275 Eagle, 12-speed, Combination: 10-12-14-16-18-21-24-28-32-36-42-52 T

SRAM GX Eagle, 34 T, BB type: Press Fit MTB 89/92 mm, Boost chain line

Rock Shox SID SL Select+, Travel: 100 mm, Air suspension, Tapered Steerer 1 1/8" - 1.5", O.L.D.: 110 mm, Brake: postmount disc 6"

Carbon SL HMF, O.L.D.: 148 mm, Brake: postmount disc 6", BB: Pressfit 92, Front derailleur mount: direct mount (high), Cable routing: internal

Oxygen Scorpo MTB, Width: 700 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm

STEVENS MTB Taper 1 1/8"-1 1/2", Upper bearing cup: IS42/28.6, Lower bearing cup: IS52/40

SRAM GX Eagle AXS, RD-GX-1E-A1, 12-speed, Cage Lock™, Roller Bearing Clutch™, X-Actuation™, Total capacity: 42 T

DT Swiss X 1900 Spline, Axle: QR15x110 mm

Oxygen Scorpo MTB, Length: 380 mm, Diameter: 30.9 mm, Insertion depth: min. 100 mm

Oxygen Scorpo MTB, Handlebar clamp: 31.8 mm, Angle: 5°

Schwalbe Racing Ray Evolution, Tire size: 57-622, Foldable, ADDIX Speed compound, LiteSkin, Tubeless Easy

No more shift cables, max shifting precision. That’s what you get when you add SRAM’s new wireless GX AXS radio shifting to our STEVENS Sonora. As SRAM’s entry into the wireless world for mountain bikes, this wireless shifting system is specially designed to meet the unique requirements of trail-oriented bikes. It’s extremely robust and offers maximum shifting performance. In addition, the friction-optimized RockShox SID Select+ air suspension fork ensures first-class handling of this race-proven carbon hardtail.

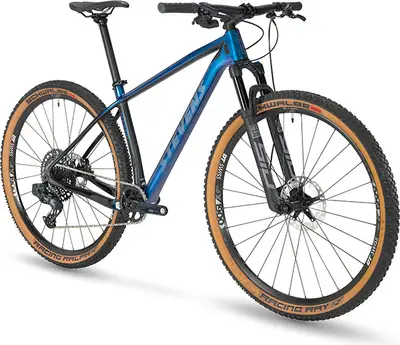

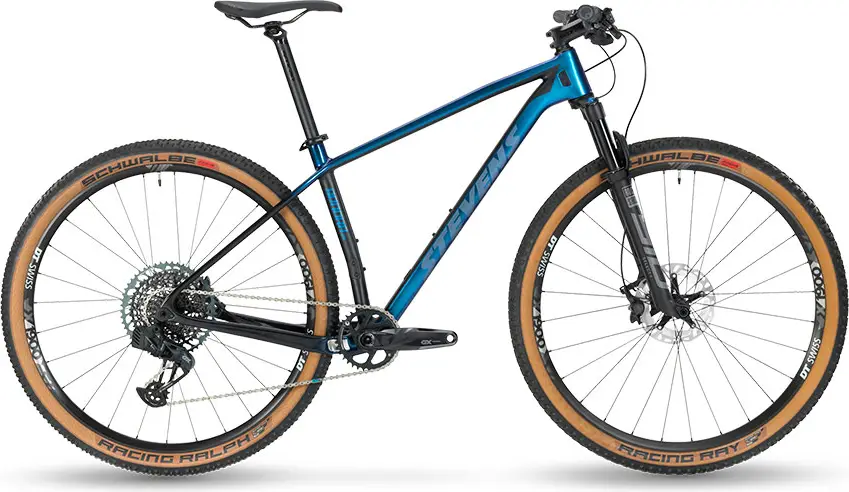

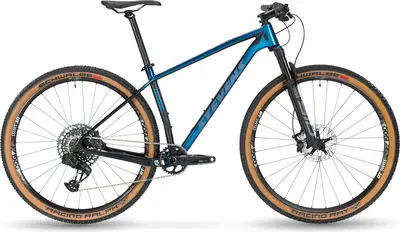

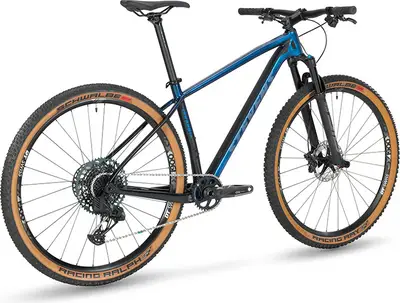

Stevens Sonora GX AXS

A 29″ carbon frame hardtail crosscountry bike with high-end components.

Weight	22.0 lbs
Frame	Carbon
Suspension	Hardtail, 100mm
Fork	RockShox SID SL Select
Wheels	29″ Aluminum
Drivetrain	1 × 12 Electronic
Groupset	Eagle AXS, GX Eagle AXS
Brakes	Shimano XT Hydraulic Disc

Frame	Carbon SL HMF, O.L.D.: 148 mm, Brake: postmount disc 6", BB: Pressfit 92, Front derailleur mount: direct mount (high), Cable routing: internal BB Standard: BB86/BB92, Press Fit Color: Blue Violet Black
Fork	Rock Shox SID SL Select+, Travel: 100 mm, Air suspension, Tapered Steerer 1 1/8" - 1.5", O.L.D.: 110 mm, Brake: postmount disc 6" Travel: 100mm Spring Type: Air
Bottom Bracket	BB86/BB92, press-fit
Headset	STEVENS MTB Taper 1 1/8"-1 1/2", Upper bearing cup: IS42/28.6, Lower bearing cup: IS52/40
Stem	Oxygen Scorpo MTB, Handlebar clamp: 31.8 mm, Angle: 5°
Handlebar	Oxygen Scorpo MTB, Width: 700 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm
Saddle	Oxygen Roccia
Seatpost	Oxygen Scorpo MTB, Length: 380 mm, Diameter: 30.9 mm, Insertion depth: min. 100 mm Type: Rigid

Rear Derailleur	SRAM GX Eagle AXS, RD-GX-1E-A1, 12-speed, Cage Lock™, Roller Bearing Clutch™, X-Actuation™, Total capacity: 42 T
Crank	SRAM GX Eagle, 34 T, BB type: Press Fit MTB 89/92 mm, Boost chain line
Shifters	SRAM Eagle GX AXS, 12-speed
Cassette	SRAM XG 1275 Eagle, 12-speed, Combination: 10-12-14-16-18-21-24-28-32-36-42-52 T
Chain	SRAM Eagle GX
Brakes	Front: Shimano Deore XT, BR-M8100, Hydraulic disc brake, Rear: Shimano Deore XT, BR-M8100, Hydraulic disc brake Type: Shimano XT Hydraulic Disc
Brake Levers	Shimano Deore XT, BL-M8100, 2 finger

Rims	DT Swiss X 1900 Spline, Axle: QR15x110 mm
Tires	Schwalbe Racing Ray Evolution, Tire size: 57-622, Foldable, ADDIX Speed compound, LiteSkin, Tubeless Easy

2022 StevensSonora GX AXS

2022 Stevens
Sonora GX AXS
