India Ink

Front: Tektro STB-01, V-Brake, Rear: Tektro STB-01, V-Brake

Shimano CS-HG31, 8-speed, Combination: 11-13-15-18-21-24-28-32 T

Shimano FC-TY501, 48-38-28 T, BB type: BSA 68 mm / Square Taper (axle length: 122,5 mm)

STEVENS T-12V, Steerer 1 1/8", O.L.D.: 100 mm, Brake: Cantilever, Fender and lowrider mounts

Aluminium 6061, O.L.D.: 135 mm, Brake: cantilever, BB: BSA 68 mm, Front derailleur mount: clamp, Cable routing: external, Fender + rack mounts

Shimano DH-3D37, Hub dynamo, Axle: QR9x100 mm threaded

Oxygen Driver, Width: 630 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm

STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30

Front: B+M Upp, Illuminance: 30 lux, Close range light, Rear: AXA Juno, Stationary taillight

Shimano Alivio Trekking, RD-T4000-SGS, 8/9-speed, Total capacity: 45 T

Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm

Oxygen Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°

Schwalbe Citizen Active-Line, Tire size: 47-622, SBC compound, KevlarGuard, Reflective stripes

Find your own rhythm. Float cheerfully through town and along bike paths, hypnotically glide over long distances. A STEVENS Jazz Lite has it all. And because every single part was carefully chosen, you'll be in tune with the groove.

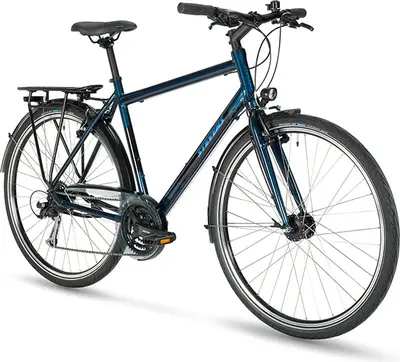

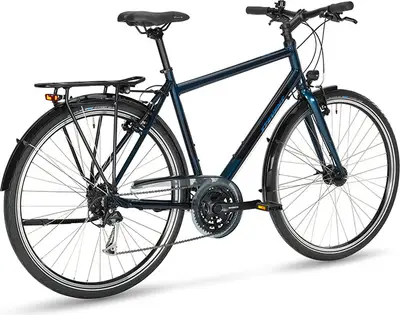

Stevens Jazz Lite Gent

48cm

52cm

55cm

58cm

61cm

A 700c aluminum frame hybrid bike with mid-range components and tektro rim brakes.

Weight	31.7 lbs
Frame	Aluminum
Suspension	Rigid
Wheels	700c Aluminum
Drivetrain	3 × 8
Groupset	Alivio, Tourney
Brakes	Tektro Rim

Frame	Aluminium 6061, O.L.D.: 135 mm, Brake: cantilever, BB: BSA 68 mm, Front derailleur mount: clamp, Cable routing: external, Fender + rack mounts BB Standard: BSA, 68mm, Threaded Color: India Ink
Fork	STEVENS T-12V, Steerer 1 1/8", O.L.D.: 100 mm, Brake: Cantilever, Fender and lowrider mounts
Bottom Bracket	BSA, 68mm, threaded
Headset	STEVENS MTB 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Stem	Oxygen Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar	Oxygen Driver, Width: 630 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm
Saddle	Selle Royal Wave Gent
Seatpost	Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	City Reflex

Rear Derailleur	Shimano Alivio Trekking, RD-T4000-SGS, 8/9-speed, Total capacity: 45 T
Front Derailleur	Shimano Altus, FD-M310-M3, 3-speed
Crank	Shimano FC-TY501, 48-38-28 T, BB type: BSA 68 mm / Square Taper (axle length: 122,5 mm)
Shifters	Shimano ST-EF500, 3-speed, 2 finger
Cassette	Shimano CS-HG31, 8-speed, Combination: 11-13-15-18-21-24-28-32 T
Chain	KMC Z8.3
Brakes	Front: Tektro STB-01, V-Brake, Rear: Tektro STB-01, V-Brake Type: Tektro Rim

Rims	Oxygen RM-19, ETRTO: 19 x 622
Front Hub	Shimano DH-3D37, Hub dynamo, Axle: QR9x100 mm threaded
Rear Hub	Shimano FH-TX505, Axle: QR10x135 mm
Tires	Schwalbe Citizen Active-Line, Tire size: 47-622, SBC compound, KevlarGuard, Reflective stripes

Lights	Front: B+M Upp, Illuminance: 30 lux, Close range light, Rear: AXA Juno, Stationary taillight
Fenders	SKS-Muguard
Racks	Racktime rear rack, System: SNAP IT
Bell	STEVENS Alu bell

2022 StevensJazz Lite Gent

2022 Stevens
Jazz Lite Gent
