Velvet Black

Front: Shimano BR-MT200, Hydraulic disc brake, Rear: Shimano BR-MT200, Hydraulic disc brake

Shimano CS-HG201, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T

Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard

SR Suntour NX1-Coil LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts

Aluminium 6061, O.L.D.: 135 mm, Brake: IS disc, BB: Bosch, Cable routing: internal, Fender + rack mounts

Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm

STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30

Front: AXA Compactline 35, Illuminance: 35 lux, Rear: AXA Blueline, Stationary taillight

Bosch G3 Active Line Cruise, Continuous rated power: 250 W, Max. torque: 40 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-250 % plus walk assistance

Shimano Altus, RD-M2000-SGS, 9-speed, Total capacity: 45 T

Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm

Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)

Schwalbe Marathon, Tire size: 40-622, Endurance compound, GreenGuard, Reflective stripes

A stiff frame with suspension fork and comfortable geometry. Reliable components from Shimano derailleurs to hydraulic disc brakes. Functional accessories for every-day use and touring on the weekend. While until now you had to use your own power for pedalling the E-Molveno now makes it easy for you to switch to an e-powered bike - and that for an incredibly attractive entry-level price.

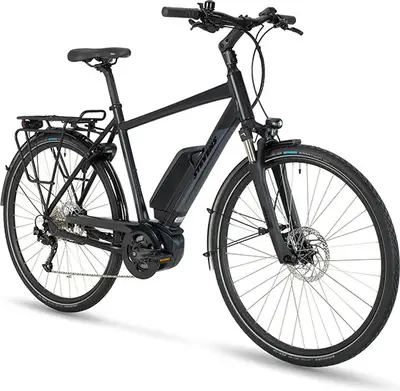

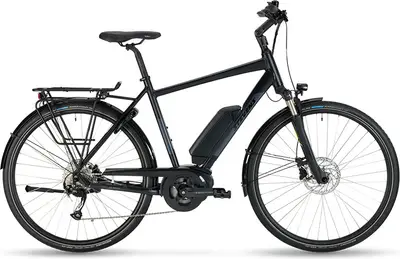

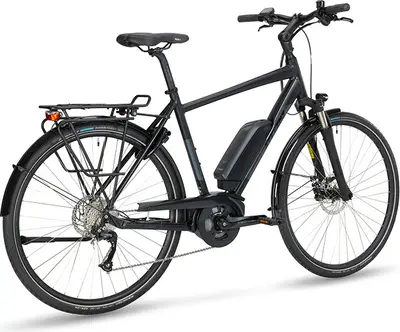

Stevens E-Molveno Gent

48cm

52cm

55cm

58cm

61cm

A 700c aluminum frame commuter e-bike with modest components and shimano hydraulic disc brakes.

Weight	51.1 lbs
Frame	Aluminum
Suspension	Hardtail, 63mm
Wheels	700c Aluminum
Drivetrain	1 × 9
Groupset	Altus
Motor	Bosch 250W 40Nm mid-drive
Brakes	Shimano Hydraulic Disc

Frame	Aluminium 6061, O.L.D.: 135 mm, Brake: IS disc, BB: Bosch, Cable routing: internal, Fender + rack mounts BB Standard: Bosch, Press Fit Color: Velvet Black
Fork	SR Suntour NX1-Coil LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts Travel: 63mm Spring Type: Coil
Bottom Bracket	Bosch, press-fit
Headset	STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Stem	Oxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0° - 90°)
Handlebar	Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm
Saddle	Selle Royal Nuvola Gent
Seatpost	Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	City Reflex

Rear Derailleur	Shimano Altus, RD-M2000-SGS, 9-speed, Total capacity: 45 T
Crank	Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard
Shifters	Shimano Altus, SL-M2010-9R, 9-speed
Cassette	Shimano CS-HG201, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T
Chain	KMC X9 NPGY
Brakes	Front: Shimano BR-MT200, Hydraulic disc brake, Rear: Shimano BR-MT200, Hydraulic disc brake Type: Shimano Hydraulic Disc
Brake Levers	Shimano BL-MT200, 3 finger

Rims	Oxygen RM-T20 Disc, ETRTO: 20 x 622
Front Hub	Shimano TX505, Axle: QR9x100 mm
Rear Hub	Shimano FH-TX505, Axle: QR10x135 mm
Tires	Schwalbe Marathon, Tire size: 40-622, Endurance compound, GreenGuard, Reflective stripes

Motor	Bosch G3 Active Line Cruise, Continuous rated power: 250 W, Max. torque: 40 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-250 % plus walk assistance
Display	Bosch Purion
Charger	Bosch 2A charger

Lights	Front: AXA Compactline 35, Illuminance: 35 lux, Rear: AXA Blueline, Stationary taillight
Fenders	SKS mudguards
Racks	STEVENS rear rack
Bell	STEVENS D85 bell

2022 StevensE-Molveno Gent

2022 Stevens
E-Molveno Gent
