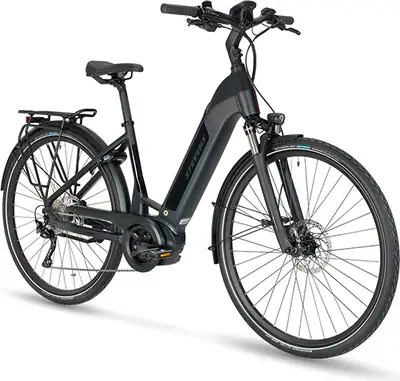

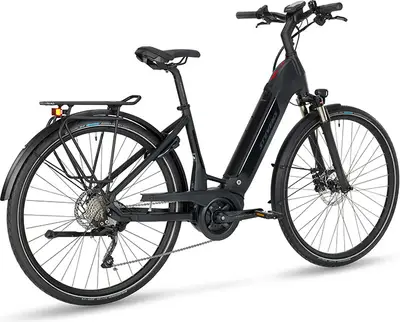

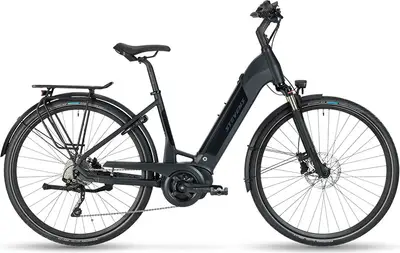

Today’s Deals2022 Stevens
E-Lavena PT5 Forma
A 700c aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,499($4,053)| Weight | 57.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 63mm |
| Fork | Suntour NCX |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 250W 65Nm mid-drive |
| Brakes | Shimano Hydraulic Disc |
| Frame | Aluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Bosch, Cable routing: internal, Fender + rack mounts, Carrying handle, PowerTube box (lockable) BB Standard: Bosch, Press Fit Color: Stealth Black |
|---|---|
| Fork | SR Suntour NCX-D Air LO, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts Travel: 63mm Spring Type: Air |
| Bottom Bracket | Bosch, press-fit |
| Headset | STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/39.8 |
| Stem | Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 35° |
| Handlebar | Oxygen E-Scorpo, Width: 680 mm, Backsweep: 5°, Rise: 25 mm, Clamp: 31.8 mm |
| Saddle | Selle Royal E-Zone |
| Seatpost | Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm Type: Rigid |
| Pedals | City Reflex |
| Rear Derailleur | Shimano Deore Trekking Shadow, RD-T6000-SGS, 10-speed, Total capacity: 47 T |
|---|---|
| Crank | Oxygen E-Scorpo, BB type: Bosch / BNI, Chainguard |
| Shifters | Shimano Deore, SL-M6000, 10-speed |
| Cassette | Shimano CS-HG50-10, CS-HG50, 10-speed, Combination: 11-13-15-17-19-21-24-28-32-36 T |
| Chain | KMC X10eS EPT |
| Brakes | Front: Shimano BR-MT200, Hydraulic disc brake, Rear: Shimano BR-MT200, Hydraulic disc brake Type: Shimano Hydraulic Disc |
| Brake Levers | Shimano BL-MT200, 3 finger |
| Rims | Oxygen RM-T20 Disc, ETRTO: 20 x 622 |
|---|---|
| Front Hub | Shimano Deore, HB-M6010, Axle: QR15x100 mm threaded |
| Rear Hub | Shimano FH-TX505, Axle: QR10x135 mm |
| Tires | Schwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes |
| Motor | Bosch G3 Performance Line Cruise, Continuous rated power: 250 W, Max. torque: 65 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 55-300 % plus walk assistance, Mileage: See BOSCH Range Assistant |
|---|---|
| Display | Bosch Intuvia |
| Charger | Bosch 4A charger |
| Lights | Front: B+M IQ Myc T Senso, Illuminance: 50 lux, Close range light, Daylight function, Automatic on/off, Rear: B+M Shine Evo, Integrated taillight |
|---|---|
| Fenders | SKS mudguards |
| Racks | Racktime Shine Evo RTA rear rack, Rear rack mount: RTA, System: SNAP IT |
| Bell | STEVENS D85 bell |
First added March 17
Last updated November 16
Not listed for 939 days
