Stealth Black

Front: Shimano Deore XT, BR-M8100, Hydraulic disc brake, Rear: Shimano Deore XT, BR-M8100, Hydraulic disc brake

Shimano Deore, CS-M6100, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T

SR Suntour NRX-E LOR Air, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6"

Aluminium 6061 TB, O.L.D.: 142 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts

Oxygen E-Scorpo, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm

STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40

Bosch G4 Performance Line CX Cruise, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant

Shimano Deore XT Shadow+, RD-M8100-SGS, 12-speed, Total capacity: 41 T

Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm

Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°

Continental Double Fighter III, Tire size: 50-622

Even some motorbikes don't have as much torque (85Nm) as the powerful Bosch Performance Line CX motor (4th generation!). Prestigious shift and brake components like these are usually found on high-quality mountain bikes. But its true potential is brought forward by the STEVENS add-ons - mainly the new frame with super-low (and perfectly protected) battery placement and sporty-but-comfortable seating position.

Stevens E-8X Gent

48cm

52cm

55cm

58cm

61cm

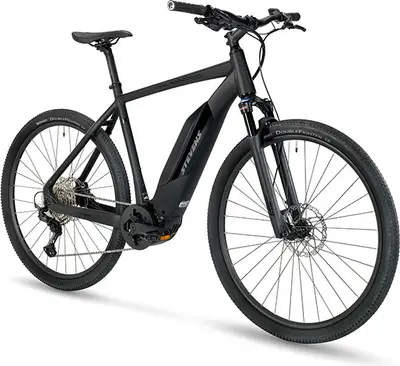

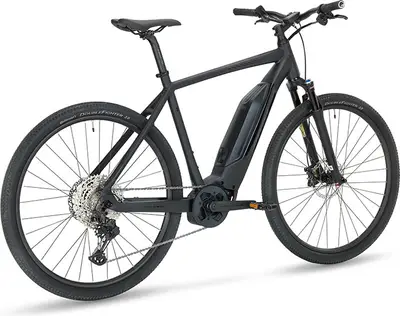

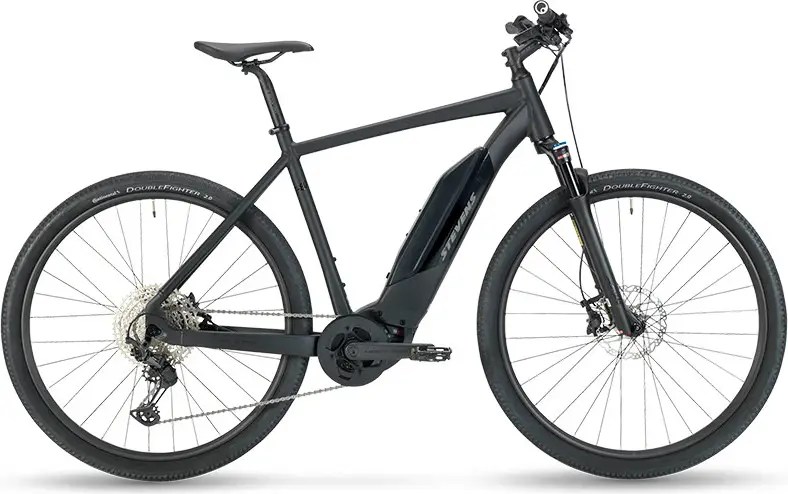

A 29″ aluminum frame hybrid e-bike with high-end components and shimano xt hydraulic disc brakes.

Weight	46.1 lbs
Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour NRX E
Wheels	29″ Aluminum
Drivetrain	1 × 12
Groupset	XT
Motor	Bosch 250W 85Nm mid-drive
Brakes	Shimano XT Hydraulic Disc

Frame	Aluminium 6061 TB, O.L.D.: 142 mm, Brake: postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts BB Standard: Bosch, Press Fit Color: Stealth Black
Fork	SR Suntour NRX-E LOR Air, Travel: 63 mm, Air suspension, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6" Travel: 63mm Spring Type: Air
Bottom Bracket	Bosch, press-fit
Headset	STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Stem	Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar	Oxygen E-Scorpo, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Saddle	Oxygen Havoc
Seatpost	Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	MTB Alu Flatpedal Reflex

Rear Derailleur	Shimano Deore XT Shadow+, RD-M8100-SGS, 12-speed, Total capacity: 41 T
Crank	Oxygen E-Scorpo, BB type: Bosch / ISIS
Shifters	Shimano Deore XT, SL-M8100-R, 12-speed
Cassette	Shimano Deore, CS-M6100, 12-speed, Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Chain	Shimano CN-M6100
Brakes	Front: Shimano Deore XT, BR-M8100, Hydraulic disc brake, Rear: Shimano Deore XT, BR-M8100, Hydraulic disc brake Type: Shimano XT Hydraulic Disc
Brake Levers	Shimano BL-T8100

Rims	Oxygen RM-T20 Disc, ETRTO: 20 x 622
Front Hub	Shimano MT410-B, Axle: QR15x110 mm
Rear Hub	Shimano MT410, Axle: QR12x148 mm
Tires	Continental Double Fighter III, Tire size: 50-622

Motor	Bosch G4 Performance Line CX Cruise, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant
Display	Bosch Kiox
Charger	Bosch 4A charger

2022 StevensE-8X Gent
