Glazed Green

Front: Shimano BR-MT200, Hydraulic disc brake, Rear: Shimano BR-MT200, Hydraulic disc brake

Shimano CS-HG400-9, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T

Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard

SR Suntour Mobie25 LOR, Travel: 63 mm, Coil spring, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6"

Aluminium 6061 TB, O.L.D.: 135 mm, Brake: Postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts

Oxygen E-Scorpo, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm

STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40

Front: Trelock I Veo, Illuminance: 50 lux, Rear: Trelock Duo Flat, Stationary taillight

Bosch G3 Active Line Plus Cruise, Continuous rated power: 250 W, Max. torque: 50 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-270 % plus walk assistance

Racktime E-14 RTA rear rack, System: SNAP IT

Shimano Alivio Shadow, RD-M3100-SGS, 9-speed, Total capacity: 45 T

Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm

Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°

Continental Double Fighter III, Tire size: 50-622, Reflective stripes

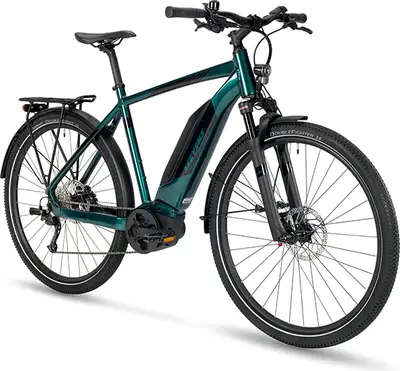

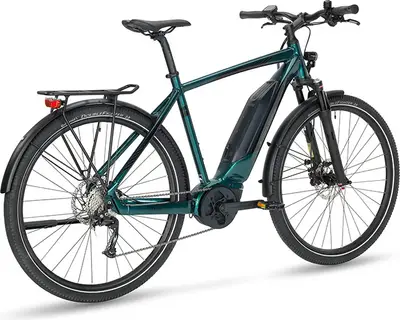

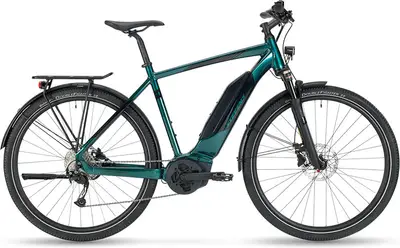

The E-4X Tour offers a first-class setup for your debut into the world of sporty-active cycling pleasure: As a descendant of STEVENS' X-Cross bikes, it weighs in at a slim 23.3kg - without sacrificing any robustness, reliability or functionality. The electric support of Bosch's smooth Active Line Plus motor is plenty sufficient, even for long days on the bike. This is thanks to its powerful 500Wh battery. Strong hydraulic disc brakes (180/180 mm!), 9-speed shifting with generous ratio spread and all-round Continental tires expertly handle the most beautiful mountainous routes. It’s also got you covered comfort-wise thanks to its active suspension fork as well as sufficient loading capacity.

Stevens E-4X Tour Gent

48cm

52cm

55cm

58cm

61cm

A 29″ aluminum frame commuter e-bike with mid-range components and shimano hydraulic disc brakes.

Weight	51.4 lbs
Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Suntour MOBIE
Wheels	29″ Aluminum
Drivetrain	1 × 9
Groupset	Alivio
Motor	Bosch 250W 50Nm mid-drive
Brakes	Shimano Hydraulic Disc

Frame	Aluminium 6061 TB, O.L.D.: 135 mm, Brake: Postmount disc 7", BB: Bosch, Cable routing: internal, Fender + rack mounts BB Standard: Bosch, Press Fit Color: Glazed Green
Fork	SR Suntour Mobie25 LOR, Travel: 63 mm, Coil spring, Lockout, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 6" Travel: 63mm Spring Type: Coil
Bottom Bracket	Bosch, press-fit
Headset	STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Stem	Oxygen E-Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar	Oxygen E-Scorpo, Width: 700 mm, Backsweep: 9°, Rise: 25 mm, Clamp: 31.8 mm
Saddle	Oxygen Havoc
Seatpost	Oxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	MTB Alu Flatpedal Reflex

Rear Derailleur	Shimano Alivio Shadow, RD-M3100-SGS, 9-speed, Total capacity: 45 T
Crank	Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard
Shifters	Shimano Alivio, SL-M3100, 9-speed
Cassette	Shimano CS-HG400-9, 9-speed, Combination: 11-13-15-17-20-23-26-30-36 T
Chain	Shimano CN-HG53
Brakes	Front: Shimano BR-MT200, Hydraulic disc brake, Rear: Shimano BR-MT200, Hydraulic disc brake Type: Shimano Hydraulic Disc
Brake Levers	Shimano BL-MT200, 3 finger

Rims	Oxygen RM-T20 Disc, ETRTO: 20 x 622
Front Hub	Shimano HB-MT400, Axle: QR15x100 mm
Rear Hub	Shimano FH-TX505-8, Axle: QR10x135 mm
Tires	Continental Double Fighter III, Tire size: 50-622, Reflective stripes

Motor	Bosch G3 Active Line Plus Cruise, Continuous rated power: 250 W, Max. torque: 50 Nm, Breakaway at 25 km/h (15.5 mph), Mileage: See BOSCH Range Assistant, No of notches: 4 drive modes with support levels 40-270 % plus walk assistance
Display	Bosch Purion
Charger	Bosch 2A charger

Lights	Front: Trelock I Veo, Illuminance: 50 lux, Rear: Trelock Duo Flat, Stationary taillight
Fenders	SKS mudguards
Racks	Racktime E-14 RTA rear rack, System: SNAP IT
Bell	STEVENS D85 bell

2022 StevensE-4X Tour Gent

2022 Stevens
E-4X Tour Gent
