Stealth Black

Front: Shimano Deore, BR-M6000, Hydraulic disc brake, Rear: Shimano Deore, BR-M6000, Hydraulic disc brake

STEVENS S-Lite Aluminium, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 7", Fender + rack mounts

Aluminium 7005 TB, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Pinion, Cable routing: external, Fender + rack mounts, Adjustable dropouts, Bolted seatstay (drive side)

Shimano DH-UR708-3D, Hub dynamo, Axle: QR15x100 mm

Oxygen Scorpo, Width: 640 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm

STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40

Front: B+M IQ Myc T Senso+, Illuminance: 50 lux, Close range light, Daylight function, Automatic on/off, Rear: B+M Shine Evo, Integrated taillight

Racktime Shine Evo RTA rear rack, Rear rack mount: RTA, System: SNAP IT

Oxygen Scorpo, Length: 320 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm

Oxygen Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°

Schwalbe Marathon Racer, Tire size: 40-622, Foldable, Speedgrip compound, RaceGuard, Reflective stripes

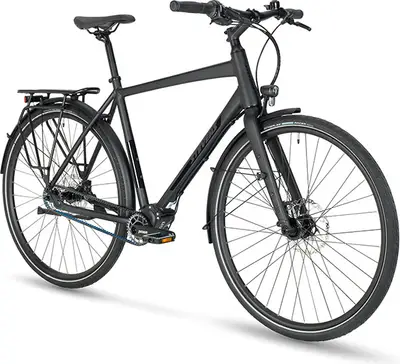

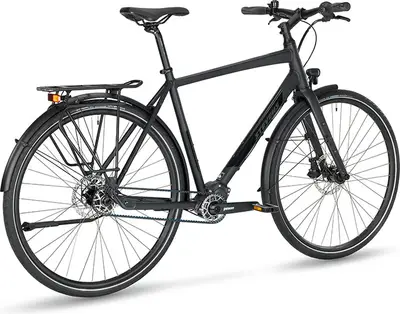

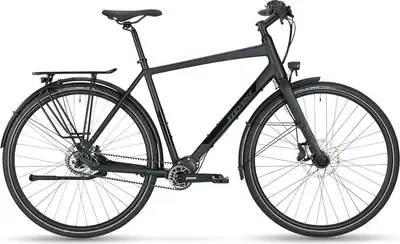

Under its elegant matt black appearance numerous qualities are hidden that will convince the rider from the very first pedal stroke. The ensemble of a lightweight aluminium frame, STEVENS' proprietary S-Lite Aluminium fork and the innovative 12-speed gear box with Magnesium housing results in a low overall weight despite the full street kit – and thus in high agility. The belt drive will do its duty over many thousand kilometers with very little maintenance. And the well-balanced seating position is just right no matter if for relaxed cruising through the city or a fast-paced weekend outing.

Stevens C12 Lite

52cm

55cm

58cm

61cm

A 700c aluminum frame hybrid bike with high-end components and shimano deore hydraulic disc brakes.

Weight	32.0 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	Belt Drive, Internally Geared Hub
Groupset	Gates CDX
Brakes	Shimano Deore Hydraulic Disc

Frame	Aluminium 7005 TB, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Pinion, Cable routing: external, Fender + rack mounts, Adjustable dropouts, Bolted seatstay (drive side) BB Standard: Pinion, Press Fit Color: Stealth Black
Fork	STEVENS S-Lite Aluminium, Tapered Steerer 1 1/8" - 1 1/2", O.L.D.: 100 mm, Brake: postmount disc 7", Fender + rack mounts
Bottom Bracket	Pinion, press-fit
Headset	STEVENS AH Taper 1 1/8"-1 1/2", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS55/40
Stem	Oxygen Scorpo, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar	Oxygen Scorpo, Width: 640 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm
Saddle	Selle Royal Vivo Ergo Sport
Seatpost	Oxygen Scorpo, Length: 320 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	ATB Alu Pro Reflex

Crank	Gates CDX chainring, 32 T
Shifters	Pinion 12-spd twist shifter
Cassette	Gates CDX Center Track sprocket, 28 T
Brakes	Front: Shimano Deore, BR-M6000, Hydraulic disc brake, Rear: Shimano Deore, BR-M6000, Hydraulic disc brake Type: Shimano Deore Hydraulic Disc
Brake Levers	Shimano BL-T6000

Rims	Oxygen RM-X19 Disc, ETRTO: 19 x 622
Front Hub	Shimano DH-UR708-3D, Hub dynamo, Axle: QR15x100 mm
Rear Hub	Pinion H2. R, Axle: QR10x135 mm
Tires	Schwalbe Marathon Racer, Tire size: 40-622, Foldable, Speedgrip compound, RaceGuard, Reflective stripes

Lights	Front: B+M IQ Myc T Senso+, Illuminance: 50 lux, Close range light, Daylight function, Automatic on/off, Rear: B+M Shine Evo, Integrated taillight
Fenders	SKS mudguards
Racks	Racktime Shine Evo RTA rear rack, Rear rack mount: RTA, System: SNAP IT
Bell	STEVENS D85 bell

2022 StevensC12 Lite

2022 Stevens
C12 Lite
