Forest Green

Front: Shimano BR-T4000, V-Brake, Rear: Shimano BR-T4000, V-Brake

Shimano CS-HG400, 9-speed, Combination: 11-12-14-16-18-21-24-28-32 T

Shimano FC-T4010-8, 48-36-26 T, BB type: BSA 73 mm / Octalink (axle length: 126 mm), Chainguard

STEVENS S-Lite Aluminium, Steerer 1 1/8", O.L.D.: 100 mm, Brake: Cantilever, Fender and lowrider mounts

Aluminium 6061 DB, O.L.D.: 135 mm, Brake: cantilever, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: internal, Fender + rack mounts

Shimano Acera Trekking, FD-T3000-TSL3, 3-speed

Shimano DH-C3000-3N-QR, Hub dynamo, Axle: QR9x100 mm

Oxygen Driver, Width: 640 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm

STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30

Front: B+M Lumotec Dopp T Senso+, Illuminance: 30 lux, Close range light, Daylight function, Automatic on/off, Rear: AXA Juno, Stationary taillight

Shimano Alivio Shadow, RD-M3100-SGS, 9-speed, Total capacity: 45 T

Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm

Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°

Schwalbe G-One Allround Performance, Tire size: 35-622, ADDIX compound, RaceGuard, Reflective stripes

You do not want to pay a fortune for your first light tourer. You also do not want riding pleasure to be compromised by technical failure. May we introduce you to the 4X Lite Tour - with proven Shimano Alivio/Acera shifting components, well performing components throughout and, of course, your fair share of STEVENS know-how.

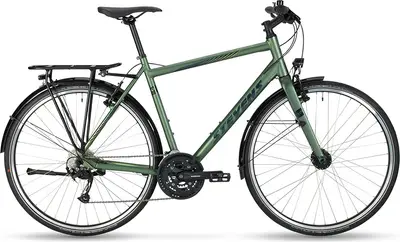

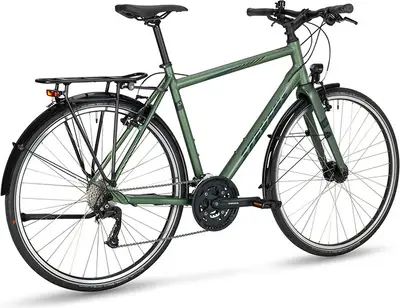

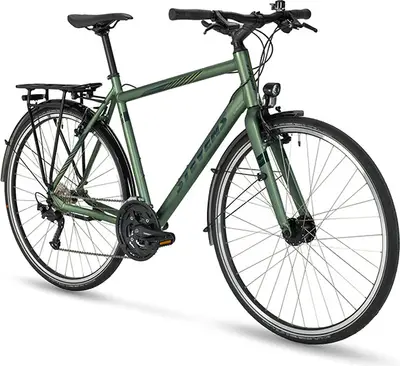

Stevens 4X Lite Tour Gent

48cm

52cm

55cm

58cm

61cm

A 700c aluminum frame commuter bike with mid-range components and shimano alivio rim brakes.

Weight	31.1 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	3 × 9
Groupset	Alivio, Acera
Brakes	Shimano Alivio Rim

Frame	Aluminium 6061 DB, O.L.D.: 135 mm, Brake: cantilever, BB: BSA 73 mm, Front derailleur mount: clamp, Cable routing: internal, Fender + rack mounts BB Standard: BSA, 73mm, Threaded Color: Forest Green
Fork	STEVENS S-Lite Aluminium, Steerer 1 1/8", O.L.D.: 100 mm, Brake: Cantilever, Fender and lowrider mounts
Bottom Bracket	BSA, 73mm, threaded
Headset	STEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
Stem	Oxygen Driver, Handlebar clamp: 31.8 mm, Angle: 17°
Handlebar	Oxygen Driver, Width: 640 mm, Backsweep: 9°, Rise: 15 mm, Clamp: 31.8 mm
Saddle	Oxygen Raceline
Seatpost	Oxygen Driver, Length: 350 mm, Diameter: 27.2 mm, Insertion depth: min. 100 mm Type: Rigid
Pedals	ATB Alu Comp Reflex

Rear Derailleur	Shimano Alivio Shadow, RD-M3100-SGS, 9-speed, Total capacity: 45 T
Front Derailleur	Shimano Acera Trekking, FD-T3000-TSL3, 3-speed
Crank	Shimano FC-T4010-8, 48-36-26 T, BB type: BSA 73 mm / Octalink (axle length: 126 mm), Chainguard
Shifters	Shimano Alivio, SL-M3100, 3-speed
Cassette	Shimano CS-HG400, 9-speed, Combination: 11-12-14-16-18-21-24-28-32 T
Chain	Shimano CN-HG53
Brakes	Front: Shimano BR-T4000, V-Brake, Rear: Shimano BR-T4000, V-Brake Type: Shimano Alivio Rim
Brake Levers	Shimano BL-T4010, 3 finger

Rims	Oxygen RM-X19, ETRTO: 19 x 622
Front Hub	Shimano DH-C3000-3N-QR, Hub dynamo, Axle: QR9x100 mm
Rear Hub	Shimano FH-T3000, Axle: QR10x135 mm
Tires	Schwalbe G-One Allround Performance, Tire size: 35-622, ADDIX compound, RaceGuard, Reflective stripes

Lights	Front: B+M Lumotec Dopp T Senso+, Illuminance: 30 lux, Close range light, Daylight function, Automatic on/off, Rear: AXA Juno, Stationary taillight
Fenders	SKS mudguards
Racks	Racktime rear rack, System: SNAP IT
Bell	STEVENS Alu bell

2022 Stevens4X Lite Tour Gent

2022 Stevens
4X Lite Tour Gent
