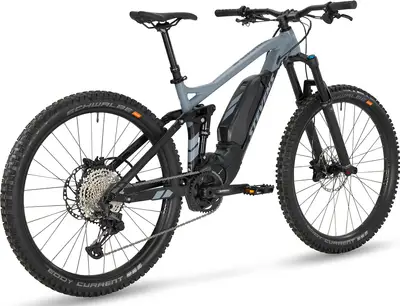

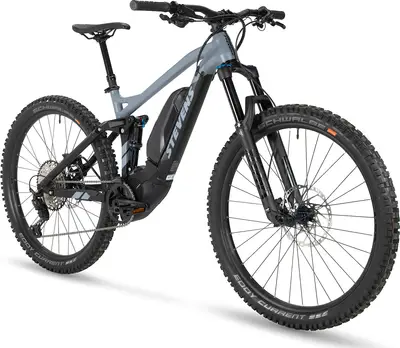

2020 Stevens

E-Whaka

A 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Weight49.8 lbs
FrameAluminum
SuspensionFull, 130 / 140mm
ForkFox Rhythm Float 34
ShockFox Float DPX2 Performance
Wheels27.5″ Aluminum
Drivetrain1 × 12
GroupsetXT, SLX
MotorShimano 250W 70Nm mid-drive
BatteryShimano 504Wh
BrakesShimano Hydraulic Disc
SeatpostDropper
View on stevensbikes.deLearn about Stevens
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
E-Whaka
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

E-Whaka

26 mph

Similar Bikes

Highest gear

(descending)

Geometry
Specs
Build
Frame

Aluminum

BB Standard: STEPS, Press Fit

Fork

FOX FLOAT 34 Rhythm E-Bike+, 51mm offset

Travel: 140mm

Spring Type: Air

Shock

FOX FLOAT DPX2 Performance E-Bike, 185mm x 50mm, trunnion mount

Travel: 130mm

Bottom Bracket

STEPS, press-fit

Headset

Stevens MTB Taper, ZS44/28.6 upper, ZS55/40 lower

Stem

Oxygen E-Scorpo, 31.8mm bar clamp, 6° rise, 50mm length (16"/18"/20"), 60mm length (22")

Handlebar

Oxygen E-Scorpo, 760mm width, 9° backsweep, 25mm rise, 31.8mm clamp diameter

Saddle

Oxygen Roccia

Seatpost

KS LEV-SI dropper, 100mm/125mm/150mm drop

Type: Dropper

Pedals

MTB Alu Flatpedal Reflex

Groupset
Rear Derailleur

Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage

Front Derailleur

N/A

Crank

Shimano STEPS E8000, 170mm length

Shifters

Shimano SLX M7100, 12-speed

Cassette

Shimano SLX M7100, 12-speed, 10-51 tooth

Chain

Shimano SLX M7100, 12-speed

Chain Guide

e*thirteen upper slider

Brakes

Shimano MT520, 4-piston, Shimano RT64 203mm CENTER LOCK rotors

Type: Shimano Hydraulic Disc

Brake Levers

Shimano MT501

Wheels
Rims

SUNringlé Duroc TR35

Front Hub

Shimano SLX, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Rear Hub

Shimano SLX, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Tires

Schwalbe Eddy Current, Evolution, foldable, Addix Soft compound, tubeless easy, 27.5" x 2.6"

Electric Components
Motor

Shimano STEPS E8000, 250W, 70Nm torque

Battery

Shimano STEPS E8010, 36V, lithium-ion, 14Ah, with ABUS lock

Remote

Shimano STEPS E7000

Display

Shimano STEPS E7000
