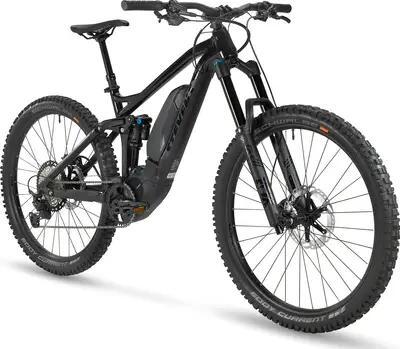

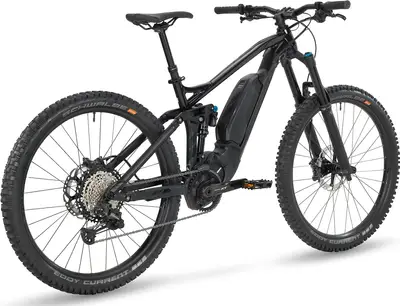

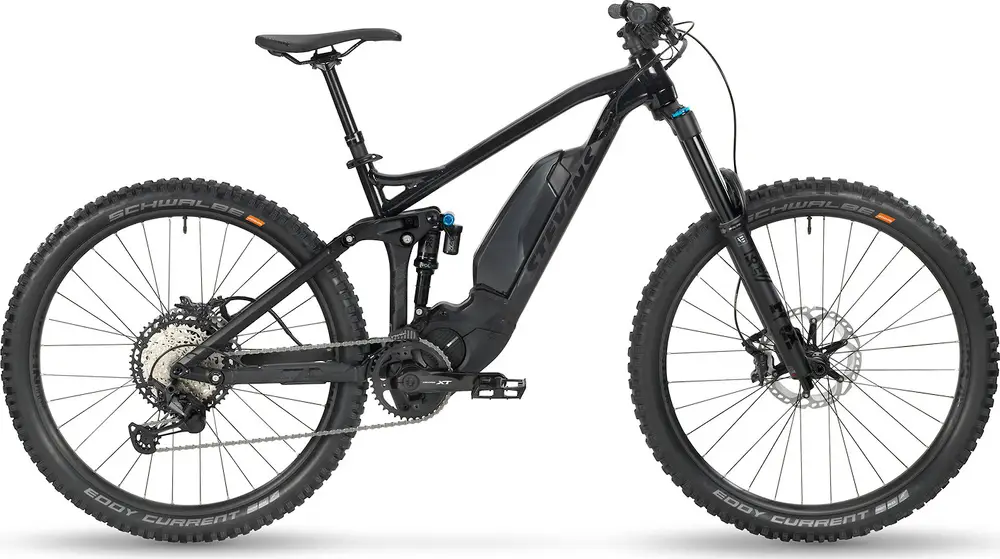

2020 Stevens

E-Sledge ES

A 27.5″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range

Weight49.6 lbs
FrameAluminum
SuspensionFull, 150 / 160mm
ForkFox Performance Elite Float 36
ShockFox Float DPX2 Performance Elite
Wheels27.5″ Aluminum
Drivetrain1 × 12
GroupsetXT
MotorShimano 250W 70Nm mid-drive
BatteryShimano 504Wh
BrakesHydraulic Disc
SeatpostDropper
Learn about Stevens
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
E-Sledge ES
Other Enduro bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

E-Sledge ES

26 mph

Similar Bikes

Highest gear

(descending)

Reviews
E-Mountainbike Magazine
STEVENS E-Sledge+ ES review – What’s this northern bike going to bring to the trails?

Mar 2017 · Christoph Bayer

Weltoffen und bodenständig, so beschreibt sich die deutsche Bikemarke STEVENS auf ihrer Homepage selbst und so wirkt auch das neue STEVENS E-Sledge+ ES.

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Aluminum

BB StandardBSA, 73mm, Threaded

Fork

FOX FLOAT 36 Performance Elite E-Bike+, 51mm offset

Travel160mm

Spring TypeAir

Shock

FOX FLOAT DPX2 Performance Elite E-Bike, 185mm x 55mm, trunnion mount

Travel150mm

Spring TypeAir

Bottom Bracket

BSA, 73mm, threaded

Headset

Stevens MTB Taper, ZS44/28.6 upper, ZS55/40 lower

Stem

Oxygen E-Scorpo, 31.8mm bar clamp, 6° rise, 50mm length (16"/18"/20"), 60mm length (22")

Handlebar

Oxygen E-Scorpo, 760mm width, 9° backsweep, 25mm rise, 31.8mm clamp diameter

Saddle

Oxygen Roccia

Seatpost

KS LEV-SI dropper, 100mm/125mm/150mm drop

TypeDropper

Pedals

MTB Alu Flatpedal Reflex

Groupset
Rear Derailleur

Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage

Front Derailleur

N/A

Crank

Shimano Deore XT STEPS M8050, HOLLOWTECH, 170mm length

Shifters

Shimano Deore XT M8100, 12-speed, I-SPEC-EV clamp

Cassette

Shimano Deore XT M8100, 12-speed, 10-51 tooth

Chain

Shimano Deore XT M8100, 12-speed

Chain Guide

e*thirteen upper slider

Brakes

Shimano Deore XT M8120, 4-piston, Shimano MT800 203mm CENTER LOCK rotors

TypeHydraulic Disc

Brake Levers

Shimano Deore XT M8100

Wheels
Rims

SUNringlé Duroc TR35

Front Hub

Shimano Deore XT, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Rear Hub

Shimano Deore XT, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Tires

Schwalbe Eddy Current, Evolution, foldable, Addix Soft compound, tubeless easy, 27.5" x 2.6"

Electric Components
Motor

Shimano STEPS E8000, 250W, 70Nm torque

Battery

Shimano STEPS E8010, 36V, lithium-ion, 14Ah, with ABUS lock
