Today’s Deals2024 Silverback
S-Electro Diamond Trail

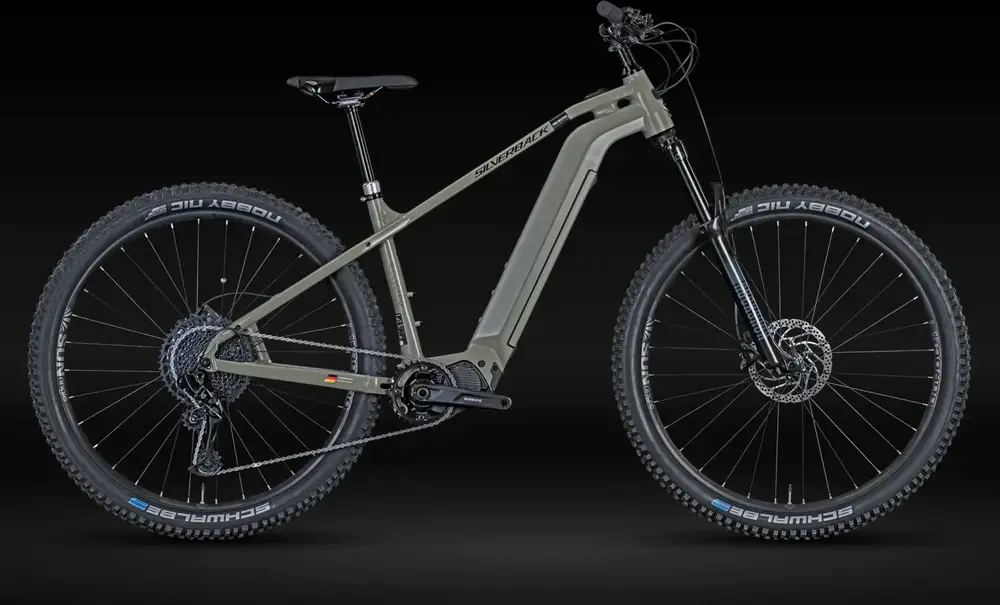

A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€3,999($4,653)| Weight | 47.4 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 140mm |
| Fork | RockShox 35 Gold RL |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Deore |
| Motor | Shimano 85Nm mid-drive |
| Battery | 720Wh |
| Brakes | Shimano Deore Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full S-Electro model range
View Comparison5'0" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'0" – 6'11"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Aluminium E - MTB frame designed to take a 720wh battery and Shimano STEPs EP8, E8000 or E7000 motor. Battery integrated inside frame.The geometry is designed for trail riding. This frame has tyre clearance for 29 x 2.6" tyres. BB Standard: STEPS, Press Fit Tire Clearance: 2.6" Color: Military-Green-Black |
|---|---|
| Fork | RockShox 35 Gold RL Debon Air 29" - 140mm - 44mm Offset Travel: 140mm Spring Type: Air |
| Bottom Bracket | STEPS, press-fit |
| Headset | Token TK035A-15 Sealed Bearing |
| Stem | SURFACE Trail alloy Stem |
| Handlebar | SURFACE alloy Trail 35mm Handlebar, Backsweep 6°, Rise 12mm |
| Saddle | SURFACE E-bike Ergo |
| Seatpost | SURFACE Dropper, 30.9mm Type: Dropper |
| Grips | SBC Lockon Grip |
| Rear Derailleur | Shimano RD-M5100 Deore, 11 Speed |
|---|---|
| Crank | Shimano FC-EM600 |
| Shifters | R: Shimano SL-M5100-R Deore, 11 Speed Rapidfire Plus |
| Cassette | Shimano CS-M5100 Deore, 11 Speed 11-51T |
| Chain | KMC X11-1 11 Speed |
| Brakes | F: Shimano MT410, Resin Pads Type: Shimano Deore Hydraulic Disc |
| Rims | F: SUNringlé Duroc 35, STR Tubeless ready, 32mm Internal Width |
|---|---|
| Front Hub | F: Shimano 15x110mm, 6 Bolt |
| Rear Hub | F: Shimano 15x110mm, 6 Bolt |
| Tires | F: Maxxis Assegai, 29x2.50WT, EXO+ TR, 3C MaxxTerra |
| Disc Rotors | F: Shimano SM-RT10 180mm, 6-Bolt |
| Motor | Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque |
|---|---|
| Battery | Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight |
| Display | Shimano SW-E7000, Left |
| Charger | Darfon Smart Plus Battery Charger, 100-240V, 4A, EU use |
