Today’s Deals2023 Silverback

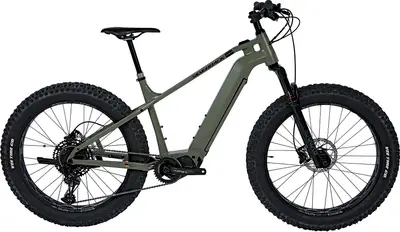

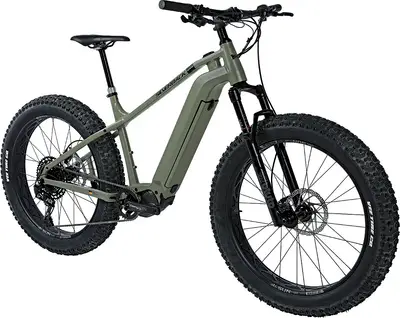

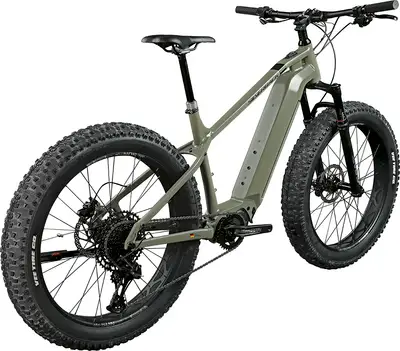

S-Electro Diamond Fat Explorer
A 26″ aluminum frame hardtail fat e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€4,499($5,235)| Weight | 54.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | Manitou Mastodon Comp |
| Wheels | 26″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | NX Eagle |
| Motor | Shimano 85Nm mid-drive |
| Battery | 720Wh |
| Brakes | Shimano Deore Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full S-Electro model range
View Comparison5'0" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'0" – 6'11"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Aluminium E - MTB frame, 720wh battery compatible. Shimano STEPs EP8, E8000 or E7000 compatible motor. The geometry is designed for the typical Fat Bike enthusiast making the ride experience feel comfortable on those long rides. This frame has tyre clearance for 26 x 4,8" tyres. Sizes range from S - XL BB Standard: STEPS, Press Fit Tire Clearance: 4.8" Color: Military Green |
|---|---|
| Fork | Manitou Mastodon Comp,Air Suspension fork,1.5" Tapered Steerer, 120 mm Travel, 15X150mm Travel: 120mm Spring Type: Air |
| Bottom Bracket | STEPS, press-fit |
| Headset | Token TK035A-15 Sealed Bearing |
| Stem | SURFACE Alloy Stem, 31.8mm, Rise 6°, with stainless steel bolts |
| Handlebar | SURFACE Alloy Handlebar, Dia:31.8mm, Backsweep:9°, Rise 5mm |
| Saddle | SURFACE E-BIKE saddle, Black, Cromo Rails |
| Seatpost | SURFACE Dropper Post with remote lock out, 30,9mm Type: Dropper |
| Grips | SBC Lockon Grip |

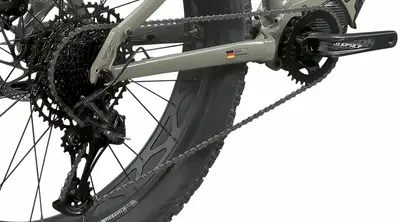

| Rear Derailleur | SRAM NX Eagle, 12 Speed, 50T |
|---|---|
| Crank | Alloy Fat Bike Crank, Anodized Black, EP8 |
| Shifters | L: NIL; R: SRAM SX Eagle Trigger Shifter |
| Cassette | SRAM SX Eagle, 11-50T |
| Chain | SRAM SX Eagle, 12 Speed |
| Brakes | F: Shimano BR-MT410, Resin Pads Type: Shimano Deore Hydraulic Disc |
| Rims | F: SUNringlé Mulefüt 80SL, Tubeless Ready |
|---|---|
| Front Hub | F: SUNringlé SRC 150x15, 6 Bolt |
| Rear Hub | F: SUNringlé SRC 150x15, 6 Bolt |
| Tires | F: VEE Tire Bulldozer 26x4.7", Foldable, Tubeless Ready, 72TPI |
| Disc Rotors | F: Shimano SM-RT10 180mm Rotor, 6-Bolt |

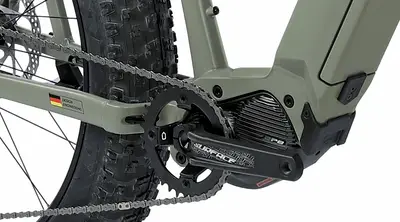

| Motor | Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque |
|---|---|
| Battery | Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight |
| Display | Shimano SC-EM800 Cycle Computer, 31.8mm |
| Charger | Darfon Smart Plus Battery Charger, 100-240V, 4A, EU use |
