2018 Scott
Voltage YZ 20

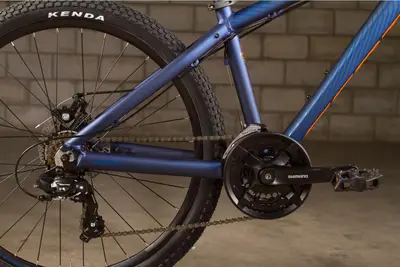

A 26″ aluminum frame hardtail dirt jump bike with mid-range components and mechanical disc brakes.
Compare the full range
| Weight | 30.8 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 26″ Aluminum |
| Groupset | Tourney, Shimano |
| Brakes | Mechanical Disc |
For This Bike
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2016 · Jonny Ashelford
Super-stiff and compact frame lets you try anything, but it’s let down by sub-par components for the price. Buy if you want an infectiously lively jump bike and don't mind shelling out on a few upgrades.
Stiff, compact frame makes for effortless fun
Geometry takes a bit of getting the hang of, some suspect kit that doesn't inspire confidence
Jul 2014 · Dirt HQ
Scott have launched a new Gambler and Voltage for 2015, we have the lowdown.
| Frame | Voltage YZ 6061 Alloy Hydroformed tubing Disc Dropout |
|---|---|
| Fork | Suntour XCM 100mm travel / preload adj. Travel: 100mm Spring Type: Coil |
| Shock | . Spring Type: Coil |
| Bottom Bracket | Shimano BB-UN-100 |
| Headset | Ritchey LOGIC ZERO-OE |
| Stem | HL TDS-C342 1 1/8" / +/-10° |
| Handlebar | HL MTB- AL-325BT / Alloy 680mm / 20mm uprise |
| Saddle | Syncros DJ3.0 / Steel Rails |
| Seatpost | HL SP-C212 Alloy / 31.6mm Type: Rigid |
| Pedals | VP-560 |
| Rear Derailleur | Shimano RD-TY300 / 21 Speed |
|---|---|
| Front Derailleur | Shimano FD-TY500 / 34.9mm |
| Crank | Shimano FC-TY501 42x34x24 w/CG |
| Shifters | Shimano ST-EF 41 L / 7R / EZ-fire plus |
| Cassette | Shimano MF-TZ21-7 / 14-28T |
| Chain | KMC Z-51 |
| Brakes | Tektro Mech. Disc Brake SCM-02 160mm Rotor Type: Mechanical Disc |
| Brake Levers | incl. |
| Rims | Syncros X-20 Disc / 32H / black |
|---|---|
| Spokes | 14 G / stainless / black |
| Front Hub | Formula DC-19-FQR |
| Rear Hub | Formula DC-31-RQR |
| Tires | Kenda K-905 26x2.3 / 30 TPI |
