2018 Scott
Voltage JR 20

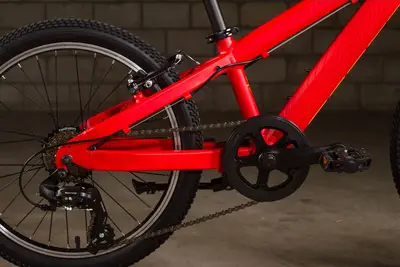

A 20″ aluminum frame mountain youth bike with mid-range components and rim brakes.
Compare the full range
| Weight | 25.6 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 40mm |
| Fork | Suntour XCT |
| Wheels | 20″ Aluminum |
| Drivetrain | 1 × 7 |
| Groupset | Tourney |
| Brakes | Rim |
For This Bike
Feb 2016 · Jonny Ashelford
Super-stiff and compact frame lets you try anything, but it’s let down by sub-par components for the price. Buy if you want an infectiously lively jump bike and don't mind shelling out on a few upgrades.
Stiff, compact frame makes for effortless fun
Geometry takes a bit of getting the hang of, some suspect kit that doesn't inspire confidence
Jul 2014 · Dirt HQ
Scott have launched a new Gambler and Voltage for 2015, we have the lowdown.
| Frame | Voltage 20 Junior Octagon tubing / Alloy 6061 P.G. |
|---|---|
| Fork | SR Suntour XCT-JR 20 40mm travel softer spring setup Travel: 40mm Spring Type: Coil |
| Bottom Bracket | Femin FP-B906SCT |
| Headset | Femin FP-H801S |
| Stem | LEADTEC LCS-7126 50mm |
| Handlebar | Junior Riser bar 540mm |
| Saddle | Syncros JR3.0 |
| Seatpost | Alloy 26.8x200mm Type: Rigid |
| Pedals | MARWI SP-700 |
| Rear Derailleur | Shimano RD-TY300 7 Speed |
|---|---|
| Crank | Prowheel A105PP 36T 127mm |
| Shifters | Shimano SL-RS36-7 Revo Shifter |
| Cassette | Shimano MF-TZ21 14-28T |
| Chain | KMC Z-51 |
| Brakes | Promax SCB 209 P Kids specific Type: Rim |
| Brake Levers | Tektro JL-510 TS |
| Rims | Shining V-6NS |
|---|---|
| Spokes | 14G / UCP / black |
| Front Hub | KT-122F / Nutted |
| Rear Hub | KT-122R / Nutted |
| Tires | Kenda K1166 / 20x1.95 / 22TPI |
Last updated March 4
Not listed for 2,252 days
