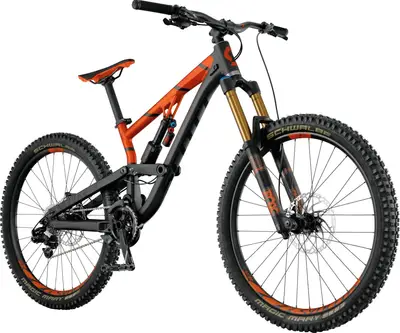

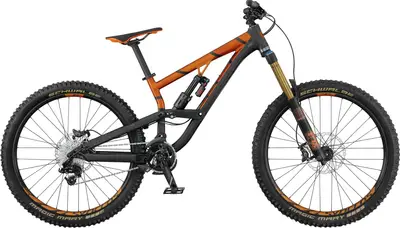

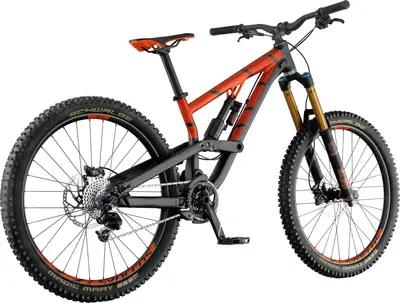

Voltage FR 710
A 27.5″ aluminum frame full suspension downhill bike with high-end components.
Compare the full range
Weight | 34.8 lbs |
---|---|
Frame | Aluminum |
Suspension | Full, 190 / 180mm |
Fork | Fox Float 36 |
Shock | Fox Float X2 Performance |
Wheels | 27.5″ Aluminum |
Drivetrain | 1 × 10 |
Groupset | X9, e*thirteen |
Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2015 · Rob Weaver
We’re big fans of the aggressive geometry and predictable suspension, though a lighter build would increase versatility. Buy if you're more about the downs than the ups and want a playful little brute of a bike that'll suck up anything you can throw at it
Reams of tweakability, including quickfire suspension travel changes, ugly terrain lights it on fire
Hefty build means climbing is a bit of a chore – though it will winch its way up most things if you've got the brawn
Jun 2014 · Dirt HQ
High Energy bike test on Scotts' "Affordable good times machine"...
Frame | Voltage FR Alloy 6061 Hydroformed tubing ISCG & ISCG05 tabs / headtube for 1.5" Dropout with 135x12mm thru axle 190mm travel |
---|---|
Fork | FOX 36 Air 27.5 180mm travel / Air / RC2 Travel: 180mm Spring Type: Air |
Shock | FOX Float X2 Air Performance Independent high/low comp. and rebound / RVS custom tuned / 241x76mm Travel: 190mm Spring Type: Air |
Bottom Bracket | Truvativ BB GXP / Shell 73mm |
Headset | Syncros FR adjustable Semi integrated / adj +-1° or +-2° with cup ID 49.6mm / OD 55mm |
Stem | Syncros XM1.5 35mm / 50mm / 0° |
Handlebar | Syncros DH1.5 35mm / 780mm / 20mm Rise Syncros Pro DH dual lock-on grips |
Saddle | Syncros XM2.0 / CrMo Rails |
Seatpost | Syncros FR2.0 / 31.6mm / zero offset Type: Rigid |
Pedals | Wellgo B155U SCT / flat / w/replaceable pins |
Rear Derailleur | SRAM X9 / short cage / 10 Speed |
---|---|
Front Derailleur | E.thirteen LG-1+ ISCG05 / w/Taco alloy backplate |
Crank | Truvativ Descendant 36T chainring / 170mm |
Shifters | SRAM X7 / Trigger Shifter |
Cassette | SRAM PG-1050 / 11-36T |
Chain | KMC X10 |
Brakes | Shimano XT BR-M8000 Disc 203mm / SM-RT66L Rotor Type: Hydraulic Disc |
Brake Levers | Shimano XT BL-M8000 |
Rims | Syncros MD27 27.5 Disc / 32H |
---|---|
Spokes | DT Swiss Champion / 2.0 black |
Front Hub | Formula DHL-92 / 110x20mm / thru axle |
Rear Hub | Formula DCL-360 135x12mm thru axle / sealed bearings |
Tires | Schwalbe Downhill Evolution Line Front: Magic Mary 27.5x2.35 VertStar Rear: Magic Mary 27.5x2.35 TrailStar Triple Nano Compound / Supergravity |
