Feimin, loose ball bearing, square taper, 68mm

Power, cable actuated disc, aluminum, 160 mm rotor

27.5", steel steerer, 100 mm QR, QR, 60 mm travel

6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger

Schwinn, steel, 680 mm width, 110 mm rise, 31.8 mm clamp

Steel, ball bearing, 10 mm x 135 mm QR, 32H, 6-bolt

Aluminum, aluminum double wall, 20 mm ID, 32H, non tubeless

Aluminum, threadless, 60 mm, 10° rise, 31.8 mm clamp

Throwback style meets modern comfort in the Vega SE. With foot-down geometry for easy starts and stops, it’s an ultra-fun way to zip around and still take in the scenery, whether it’s a day date, a girls’ night out, or a solo joy ride.

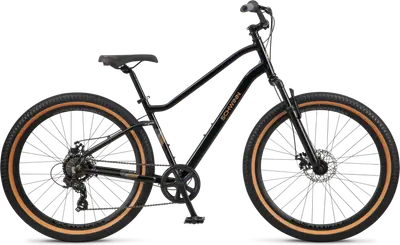

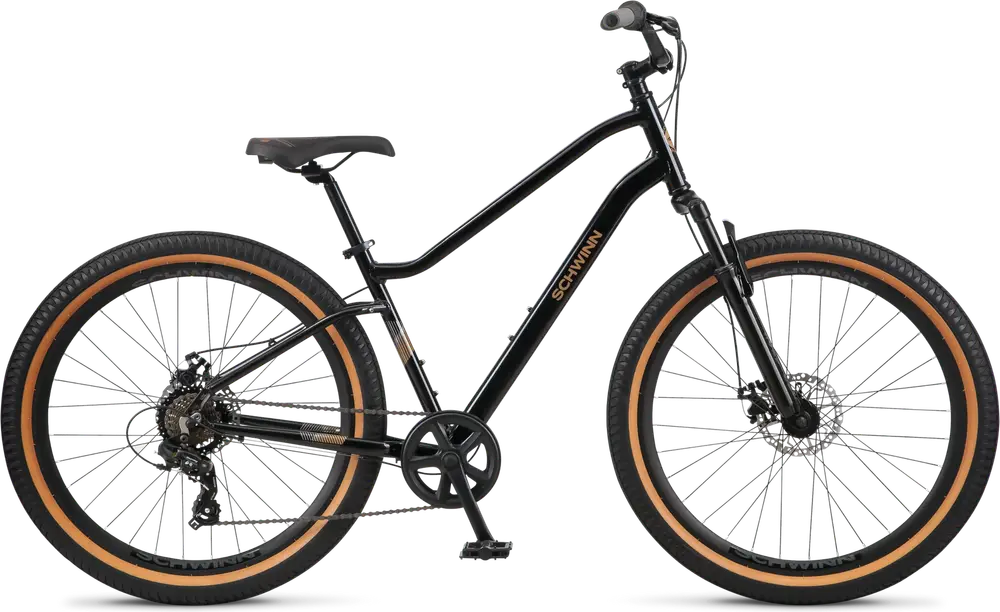

Schwinn Vega SE

One Size

A 650b aluminum frame commuter bike with mid-range components and mechanical disc brakes.

Frame	Aluminum
Suspension	Hardtail, 60mm
Fork	Steel
Wheels	650b Aluminum
Drivetrain	1 × 7
Groupset	Tourney
Brakes	Mechanical Disc

Frame	6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger
Fork	27.5", steel steerer, 100 mm QR, QR, 60 mm travel Travel: 60mm
Bottom Bracket	Feimin, loose ball bearing, square taper, 68mm
Headset	Threadless, 1-1/8 in, retainer bearing
Stem	Aluminum, threadless, 60 mm, 10° rise, 31.8 mm clamp
Handlebar	Schwinn, steel, 680 mm width, 110 mm rise, 31.8 mm clamp
Saddle	Schwinn Comfort, steel rails
Seatpost	Aluminum, 300 mm, 20 mm offset, 27.2 mm Type: Rigid
Pedals	Schwinn platform, plastic
Grips	Schwinn Comfort

Rear Derailleur	Shimano TY-300
Crank	Prowheel, aluminum, 42T
Shifters	Shimano REVOSHIFT twist, 7
Chain	KMC Z7
Brakes	Power, cable actuated disc, aluminum, 160 mm rotor Type: Mechanical Disc

Rims	Aluminum, aluminum double wall, 20 mm ID, 32H, non tubeless
Spokes	14G, steel
Rear Hub	Steel, ball bearing, 10 mm x 135 mm QR, 32H, 6-bolt
Tires	27.5 in x 2.4 in, wire bead

2023 SchwinnVega SE

2023 Schwinn
Vega SE
