VP, sealed cartridge, square taper, 68 mm

Zoom 730 AMS, 700c, steel steerer, 9 mm x 100 mm QR, 63 mm travel

Aluminum, 700c comfort tuned geometry, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube

Schwinn, steel, 660 mm width, 50 mm rise, 25.4 mm clamp

Threadless, ZS44, semi-cartridge bearings

Schwinn sport, aluminum, 10 mm x 135 mm QR, 32H

Aluminum, 300 mm, 18 mm offset, suspension, 27.2 mm

Schwinn, aluminum, threadless, adjustable rise, 25.4 mm clamp

The Schwinn Voyageur hybrid bike is fun and versatile for today’s comfort minded fitness rider. Whether leisurely riding on a bike path, riding through the city, or commuting to work, this bike is the perfect way to get back on the bike.

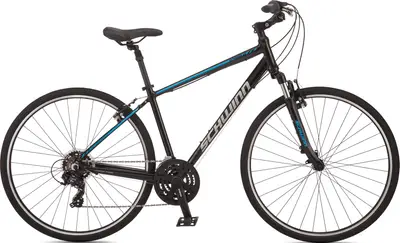

Schwinn Voyageur

A 700c aluminum frame hybrid bike with mid-range components and rim brakes.

Frame	Aluminum
Suspension	Hardtail, 63mm
Fork	Steel
Wheels	700c Aluminum
Drivetrain	3 × 7
Groupset	Tourney
Brakes	Rim

Frame	Aluminum, 700c comfort tuned geometry, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Fork	Zoom 730 AMS, 700c, steel steerer, 9 mm x 100 mm QR, 63 mm travel Travel: 63mm
Bottom Bracket	VP, sealed cartridge, square taper, 68 mm
Headset	Threadless, ZS44, semi-cartridge bearings
Stem	Schwinn, aluminum, threadless, adjustable rise, 25.4 mm clamp
Handlebar	Schwinn, steel, 660 mm width, 50 mm rise, 25.4 mm clamp
Saddle	Schwinn Comfort sport, steel rails
Seatpost	Aluminum, 300 mm, 18 mm offset, suspension, 27.2 mm Type: Suspension
Pedals	Schwinn comfort, nylon
Grips	Schwinn ergo, dual density

Rear Derailleur	Shimano Tourney RD-TY300
Front Derailleur	Shimano FD-TY500, 31.8 mm clamp
Crank	SR Suntour XCC, 48/38/28T
Shifters	Shimano REVOSHIFT twist, 21-speed
Chain	KMC Z7

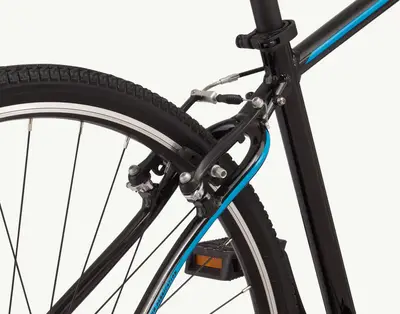

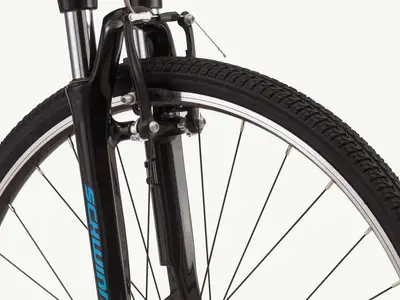

Brakes	Radius V993, linear pull, aluminum Type: Rim

Rims	Alex DC26, aluminum, double wall, 32H
Spokes	14G, stainless steel
Rear Hub	Schwinn sport, aluminum, 10 mm x 135 mm QR, 32H
Tires	Kenda Kourier, 700c x 38c, wire bead

2022 SchwinnVoyageur

2022 Schwinn
Voyageur
