Shimano BR-MT200, hydraulic disc, aluminum, 160 mm rotor

SR Suntour XCT30 DS, 29", steel steerer, 9 mm x 100 mm QR, 100 mm travel

N LITENED 2 aluminum, 29" mountain tuned geometry, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube

Schwinn, aluminum, 680 mm width, 25 mm rise, 31.8 mm clamp

Threadless, ZS44, semi-cartridge bearings

Schwinn mountain disc, aluminum, 10 mm x 135 mm QR, 32H, 6-bolt

Schwinn, aluminum, threadless, 7° rise, 31.8 mm clamp

WTB Transition sport, 27.5 in x 2.25 in / 29 in x 2.25 in, wire bead

Get race-ready XC performance with the Moab 3 mountain bike by Schwinn. The Moab 3 is ideal for the cross-country rider who's looking for a performance upgrade. Whether you want to start racing or just need a little more bike for your weekend rides, the Moab series is an excellent choice.

Schwinn Moab 3

A 27.5″ aluminum frame hardtail crosscountry bike with modest components.

Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour XCT
Wheels	27.5″ Aluminum
Drivetrain	3 × 8
Groupset	Tourney, Acera
Brakes	Shimano Hydraulic Disc

Frame	N LITENED 2 aluminum, 29" mountain tuned geometry, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Fork	SR Suntour XCT30 DS, 29", steel steerer, 9 mm x 100 mm QR, 100 mm travel Travel: 100mm Spring Type: Coil
Bottom Bracket	VP, cartridge, square taper, 68 mm
Headset	Threadless, ZS44, semi-cartridge bearings
Stem	Schwinn, aluminum, threadless, 7° rise, 31.8 mm clamp
Handlebar	Schwinn, aluminum, 680 mm width, 25 mm rise, 31.8 mm clamp
Saddle	Schwinn mountain, steel rails
Seatpost	Aluminum, 350 mm, 15 mm offset, 27.2 mm Type: Rigid
Pedals	Schwinn mountain, nylon
Grips	Schwinn mountain Kraton

Rear Derailleur	Shimano Acera RD-M360
Front Derailleur	Shimano FD-TY700, 31.8 mm clamp
Crank	SR Suntour XCE, 42/34/24T
Shifters	Shimano EF500 EZ-FIRE, 24-speed
Chain	KMC Z8.1

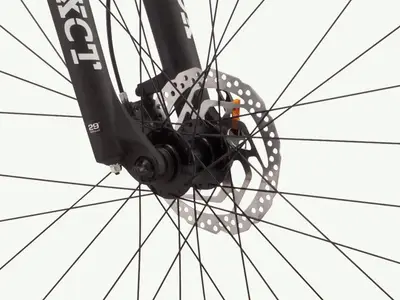

Brakes	Shimano BR-MT200, hydraulic disc, aluminum, 160 mm rotor Type: Shimano Hydraulic Disc

Rims	WTB SX19, aluminum, double wall, 32H
Spokes	14G, stainless steel
Rear Hub	Schwinn mountain disc, aluminum, 10 mm x 135 mm QR, 32H, 6-bolt
Tires	WTB Transition sport, 27.5 in x 2.25 in / 29 in x 2.25 in, wire bead

2022 SchwinnMoab 3

2022 Schwinn
Moab 3
