Today’s Deals2025 Schindelhauer

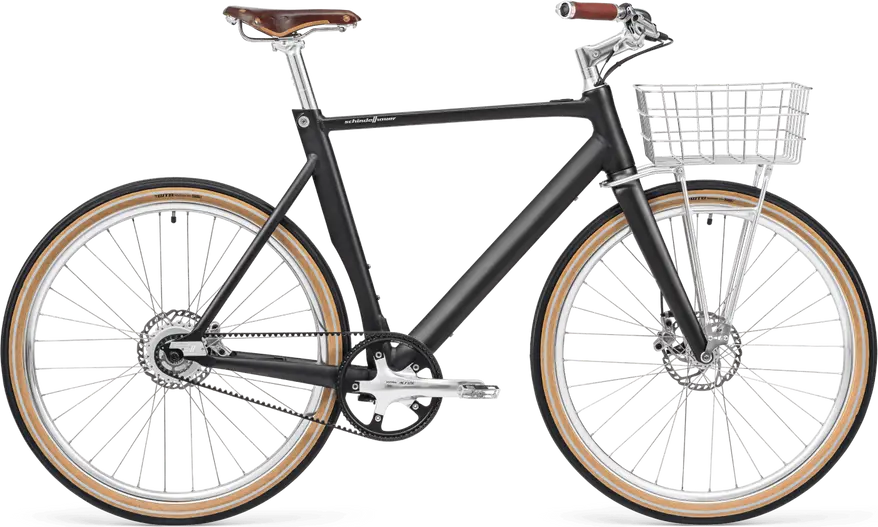

Arthur Cruiser
A 650b aluminum frame commuter e-bike with modest components and shimano alfine hydraulic disc brakes.
Compare the full range
| Weight | 35.1 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 650b Aluminum |
| Drivetrain | Internally Geared Hub |
| Groupset | Alfine |
| Motor | MAHLE 250W 40Nm hub-drive |
| Battery | MAHLE 250Wh |
| Brakes | Shimano Alfine Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated seat post clamp, smooth welded Color: Graphite Black |
|---|---|
| Fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
| Bottom Bracket | Press-Fit bottom bracket |
| Headset | Acros - ICR 1,5'' |
| Stem | Satori – Stealth, aluminium |
| Handlebar | LightSKIN – handlebar integrated LED-front-light |
| Saddle | Brooks – Swift |
| Seatpost | LightSKIN – seat post integrated LED-rear-light Type: Rigid |
| Pedals | Schindelhauer – Urban Pedal, aluminium, CNC machined |
| Grips | Schindelhauer – ergo leather grips |
| Crank | Shimano – Alfine Hollowtech II |
|---|---|
| Shifters | -- |
| Brakes | Shimano - Alfine S7000 disc brake (hydraulic), 160mm Type: Shimano Alfine Hydraulic Disc |
| Rims | Schindelhauer – high flange front hub disc, X35 motor HUB Drive M1, Alexrims – EXR25 rims with eyelets, Sapim – Race spokes, 3-cross and 1-cross laced |
|---|---|
| Tires | WTB – Horizon 47-584, with reflex stripes |
| Motor | Mahle X35 – Motor HUB Drive M1, power: 250 W, torque: 40 Nm, max. support up to 25 km/h |
|---|---|
| Battery | Mahle X35 – intube battery, energy: 250 Wh |
| Display | Mahle X35 – iWoc ONE |
| Charger | Original charger for the MAHLE X35 models. |
| Fenders | Mudguard mounting possible |
|---|---|
| Racks | Pelago Rasket with Adapter-Set |
