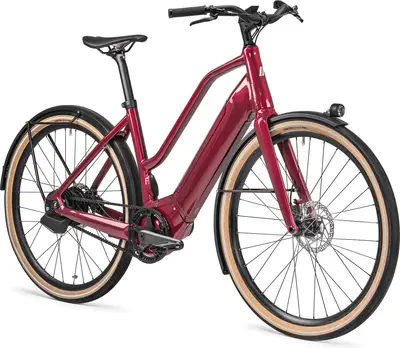

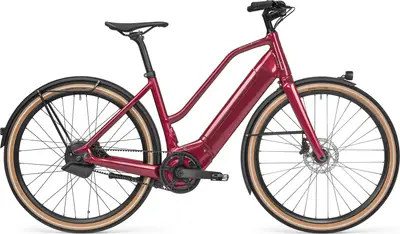

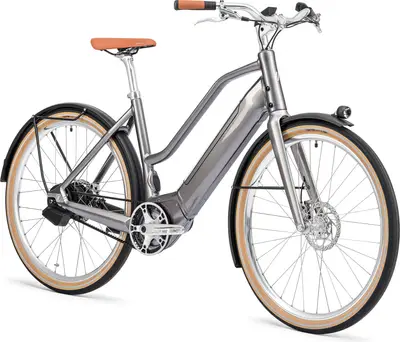

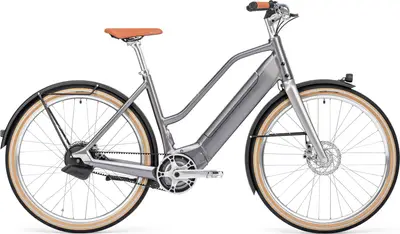

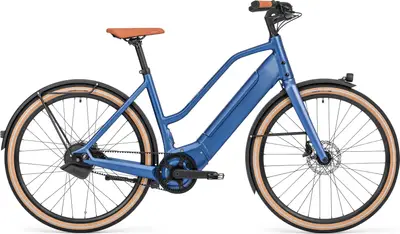

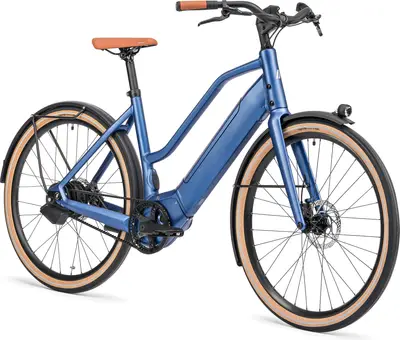

Today’s Deals2022 Schindelhauer
Hannah
A 650b aluminum frame commuter e-bike with shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€5,595($6,507)| Weight | 54.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 650b Aluminum |
| Drivetrain | Internally Geared Hub |
| Motor | Bosch 250W 65Nm mid-drive |
| Battery | Bosch 500Wh |
| Brakes | Shimano Hydraulic Disc |
5'2" – 5'9"
5'8" – 6'2"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded Colors: Garnet Red; Pearl Blue; Titanium Silver |
|---|---|
| Fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
| Headset | Tange Seiki – integrated, 1 1/8-1.5 |
| Stem | Satori – Stealth, aluminium |
| Handlebar | Satori – Seagull, aluminium |
| Saddle | FABRIC – Scoop Shallow Sport |
| Seatpost | Schindelhauer Type: Rigid |
| Pedals | Schindelhauer – Urban Pedal, aluminium, CNC machined |
| Grips | Schindelhauer (bolt-on) |
| Crank | Miranda – Delta |
|---|---|
| Shifters | ENVIOLO TR (steples shifting) - AUTOMATiQ (eShift) |
| Brakes | Shimano - MT401 disc brakes (hydraulic), 160 mm Type: Shimano Hydraulic Disc |
| Rims | Schindelhauer – high flange front hub disc, ENVIOLO TR, Alexrims – EXR25 rims with eyelets, Sapim – Race spokes, 3-cross and 2-cross laced |
|---|---|
| Tires | WTB – Horizon 47-584, with reflex stripes |
| Motor | Bosch – Performance Line (Cruise), power: 250 W, torque: 65 Nm, max. support up to 25 km/h |
|---|---|
| Battery | Bosch – Powertube 500, intube battery, energy: 500 Wh |
| Display | Bosch – KIOX |
| Fenders | Wingee - W52 Schindelhauer custom |
|---|---|
| Racks | Rear mudguard with integrated luggage stays |
First added March 11
Last updated January 28
Not listed for 1,220 days
