Today’s Deals2022 Schindelhauer
Arthur
A 700c aluminum frame commuter e-bike with modest components and shimano alfine hydraulic disc brakes.
Compare the full range
Manufacturer Price
€4,195($4,878)| Weight | 29.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 700c Aluminum |
| Drivetrain | Internally Geared Hub |
| Groupset | Alfine |
| Motor | MAHLE 250W 40Nm hub-drive |
| Battery | MAHLE 250Wh |
| Brakes | Shimano Alfine Hydraulic Disc |
5'5" – 5'10"
5'8" – 6'1"
5'11" – 6'4"
6'2" – 6'7"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Sep 2021 · Philipp Schwab

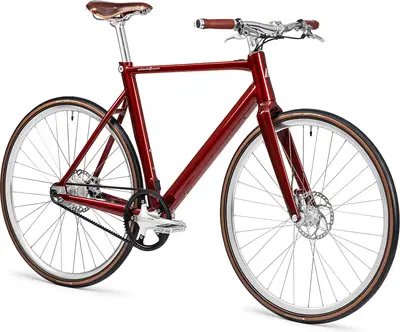

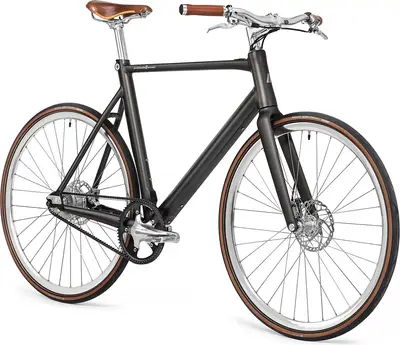

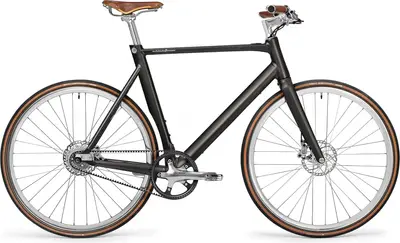

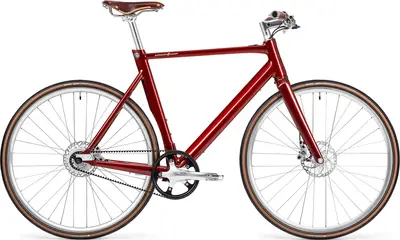

With the classy Arthur VI/IX, Berlin bike manufacturer Schindelhauer have delivered the optical highlight of this group test. Can this ebike with its MAHLE Ebikemotion X35+ hub motor and Pinion gearbox only impress while posing in the showroom, or does it also convince out on the road? We found out for you.
Level of integration of the drivetrain, motor and LightSKIN lights
Classy looks with attention to detail
Great finishing
Low-maintenance Pinion gearbox
Ebikemotion app as your training partner
Lacking comfort
Narrow range of application
No stand
Limited transport options
| Frame | Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer - belt port, integrated seat post clamp, smooth welded BB Standard: BB86/BB92, Press Fit Colors: Graphite Black; Garnet Red |
|---|---|
| Fork | Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes |
| Bottom Bracket | Shimano - Press-Fit |
| Headset | Tange Seiki integrated, tapered 1 1/8-1,5 |
| Stem | Satori - Stealth, aluminium |
| Handlebar | LightSKIN - handlebar integrated LED-front-light |
| Saddle | Brooks - Swift |
| Seatpost | LightSKIN - seat post integrated LED-rear-light Type: Rigid |
| Pedals | Schindelhauer - Urban Pedal, aluminium, CNC machined |
| Grips | Schindelhauer - ergo leather grips |
| Crank | Shimano - Alfine Hollowtech II |
|---|---|
| Shifters | -- |
| Brakes | Shimano - Alfine, disc brakes (hydraulic), 160 mm Type: Shimano Alfine Hydraulic Disc |
| Rims | Schindelhauer - high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims - CXD26 rims with eyelets, Sapim - Race spokes, 3-cross and 2-cross laced |
|---|---|
| Tires | Continental - GP Urban Classic 35-622 |
| Motor | Mahle-ebikemotion - Motor HUB Drive M1, power: 250 W, torque: ca. 40 Nm, max. support up to 25 km/h |
|---|---|
| Battery | Mahle-ebikemotion - intube battery, energy: 250 Wh |
| Display | Mahle-ebikemotion - iWoc ONE |
| Fenders | mudguard mounting possible |
|---|---|
| Racks | rear pannier rack mounting possible |
