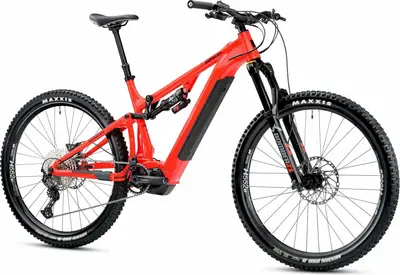

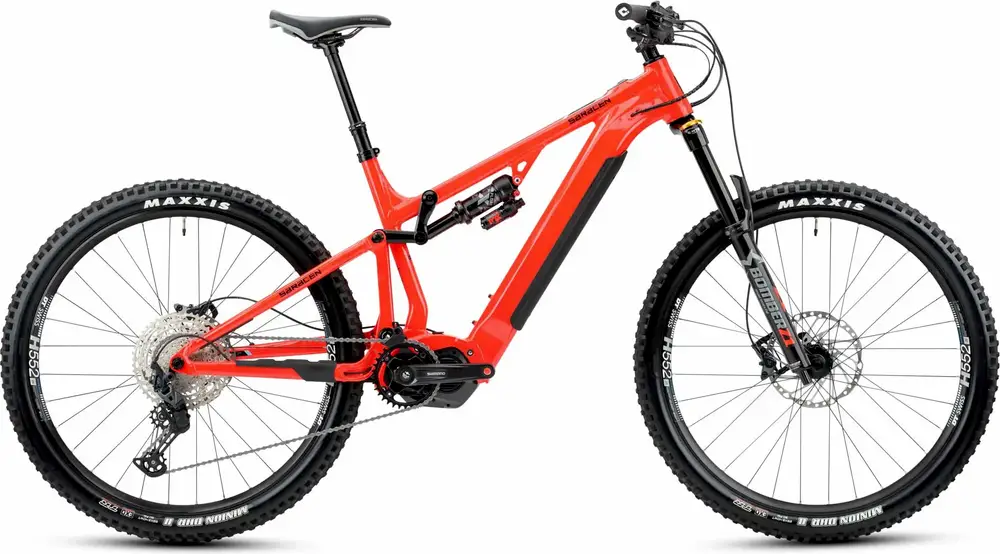

Today’s Deals2025 Saracen
Ariel 50E
A 29″ / 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
£4,999($6,726)| Frame | Aluminum |
|---|---|
| Suspension | Full, 150 / 160mm |
| Fork | Marzocchi Bomber Z1 |
| Shock | Fox Float X Performance |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, SLX |
| Motor | Shimano 250W 60Nm mid-drive |
| Battery | 720Wh |
| Brakes | Shimano Deore Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Ariel model range
View Comparison5'0" – 5'8"
5'6" – 5'11"
5'10" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Dec 2024 · Hannah Dobson
Saracen Ariel 30 Elite is yet another Ariel model from Saracen that looks the absolute bee’s knees. Literally. How does this yellow zinger handle the trails? Sometimes you get on a bike and find a …
Jun 2024 · Luke Marshall
A versatile eMTB designed for all kinds of trail riding
Versatility is impressive
Older shimano e7000 motor still packs a punch
Engaging yet stable suspension
Good value
Tyres don t do the bike justice
Long chainstays might not suit the small frame size
Battery cover isn t robust
Jun 2023
We get to grips with the Saracen Ariel 30, a great mountain bike by a British brand making something of a resurgence
| Frame | SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY FRONT TRIANGLE AND SWINGARM. Design: Integrated battery and motor mount / Integrated charger port. Headtube: ZS44-ZS56 tapered headtube. Bearings: 37mm main pivot bearings / 28mm linkage bearings. Linkage: Convertible CNC linkage included for both mullet and 29er setups. Suspension: Signature TRL suspension design. Cable Routing: Internal. Axle: 12 x 157mm SuperBoost dropout system. Rear Travel: 150mm. BB Standard: BSA, 73mm, Threaded Color: Red. |
|---|---|
| Fork | MARZOCCHI BOMBER Z1. Travel: 160mm. Technology: Tapered steerer / rebound adjust / sweep adjust grip damper. Axle: 15x110 Boost. : 44mm. Travel: 160mm Spring Type: Air |
| Shock | FOX FLOAT X PERFORMANCE. Model: Air damper / rebound adjust / 2 position compression. Adjustment: 230 x 65. Travel: 150mm |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | PRESTINE PT-F13. |
| Stem | RACEFACE CHESTER 35. Length: 40mm. Clamp: 0 degree. Type: 35mm. : Ahead. |
| Handlebar | RACEFACE CHESTER 35. Width: 780mm. Rise: 35mm. Bend: 35mm. |
| Saddle | SARACEN CUSTOM CRMO E-MTB. |
| Seatpost | KS RAGE I. Size: Internal. Length: 30.9mm. : 150mm, 125mm on size small. : Westy remote. Type: Dropper |
| Grips | ODI ELITE MOTION. |
| Rear Derailleur | SHIMANO SLX. Model: M7100 SGS Shadow Plus. Speed: 12 speed. |
|---|---|
| Crank | SHIMANO XT. Model: FC-E8000. Chain Ring: 34T. Crank Length: 165mm. |
| Shifters | SHIMANO DEORE. Model: M6100 Rapidfire Plus 2-way release. Speed: 1x12 speed. |
| Cassette | SHIMANO DEORE. Model: M6100. Speed: 12 speed. Ratio: 10-51T. |
| Chain | KMC E12. |
| Brakes | SHIMANO DEORE. Brake Type: BR-M6100. Rotor Size: Hydraulic two piston. : 203/203mm. Type: Shimano Deore Hydraulic Disc |
| Brake Levers | SHIMANO DEORE. |
| Rims | DT SWISS H552. Hole: 32H. Size: 29'' Front / 29'' Rear (Sizes Large / XL) 29'' Front / 27.5'' Rear (Sizes Small / Medium). Tubeless Ready: Yes. |
|---|---|
| Spokes | DOUBLE-BUTTED STAINLESS STEEL. |
| Front Hub | KT. Front: DHLF1L2 sealed bearing 32H. Rear: DCR2S5 sealed bearing 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H. |
| Rear Hub | KT. Front: DHLF1L2 sealed bearing 32H. Rear: DCR2S5 sealed bearing 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H. |
| Tires | MAXXIS MINION DHRII. Model: EXO TR. Size: 29 x 2.4 Front & Rear (Sizes Large / XL) / 29 x 2.4 Front / 27.5 x 2.3 Rear (Sizes Small / Medium). |
| Motor | SHIMANO STEPS. Model: Shimano E-7000. Assistance: Up to 25Km/h. |
|---|---|
| Battery | DARFON. Model: fully integrated. Power: 720Wh. |
| Charger | DARFON. Model: UK Charger. |
