Today’s Deals2025 Saracen

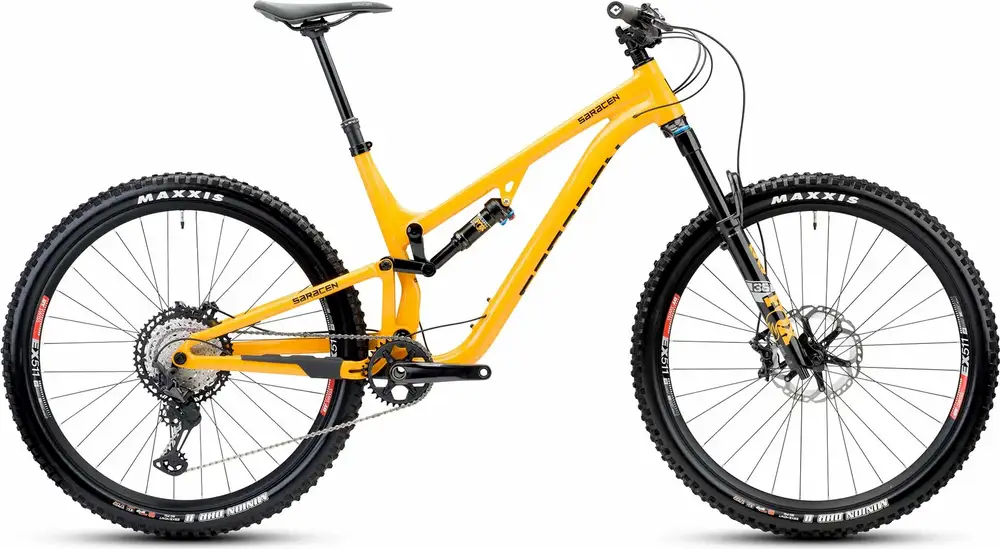

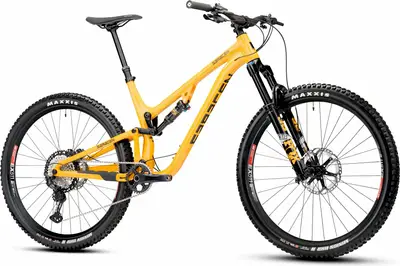

Ariel 30 Elite
A 29″ / 27.5″ aluminum frame full suspension trail bike with high-end components.
Compare the full range
Manufacturer Price
£3,999($5,285)| Frame | Aluminum |
|---|---|
| Suspension | Full, 130 / 140mm |
| Fork | Fox Performance Elite Float 36 |
| Shock | Fox Float DPS Performance Elite |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT |
| Brakes | Shimano XT Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Ariel model range
View Comparison5'0" – 5'8"
5'6" – 5'11"
5'10" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2026 · Saracen Bikes
Saracen drops a limited-run version of their 180mm gravity rig with a custom aesthetic developed in collaboration with the UK freerider.
180mm suspension travel
Downhill-inspired geometry
Proven component specification
Composed through rock gardens
Carries speed through rough sections
Inspires confidence on challenging terrain
Dec 2024 · Hannah Dobson
Saracen Ariel 30 Elite is yet another Ariel model from Saracen that looks the absolute bee’s knees. Literally. How does this yellow zinger handle the trails? Sometimes you get on a bike and find a …
Jun 2023
We get to grips with the Saracen Ariel 30, a great mountain bike by a British brand making something of a resurgence
Jun 2022 · Alex Evans
Head angle, tyre choice and battery capacity are the Ariel’s most limiting factors
Well-specced
Easy to set up
Great for blasting around trail centres
Out of its depth on steep, technical trails
Small battery capacity frustrating
Lightweight tyres easy to puncture
Geometry tweaks would improve ride massively
| Frame | SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY FRONT TRIANGLE AND SWINGARM. Headtube: ZS44-ZS56 tapered headtube. Bearings: 37mm main pivot bearings / 28mm linkage bearings. Linkage: Convertible CNC linkage included for both mullet and 29er setups. Suspension: Signature TRL suspension design. Cable Routing: Internal. Axle: 12 x 157mm SuperBoost dropout system. Rear Travel: 130mm. BB Standard: BSA, 73mm, Threaded Color: Yellow. |
|---|---|
| Fork | FOX 36 PERFORMANCE ELITE. Travel: 140mm. Technology: Tapered steerer / GRIP2 damper / low and high speed compression, low and high speed rebound. Axle: 15x110 Boost. Rake: 44mm. Travel: 140mm Spring Type: Air |
| Shock | FOX FLOAT DPS PERFORMANCE ELITE. Adjustment: Air damper / rebound adjust / 2 position compression. Length / Stroke: 210 x 50. Travel: 130mm |
| Bottom Bracket | SHIMANO BB-MT800 73MM. |
| Headset | PRESTINE PT-F13. |
| Stem | RACEFACE TURBINE R 35. Length: 40mm. Rise: 6 degree. Clamp: 35mm. Type: Ahead. |
| Handlebar | RACEFACE NEXT R 36. Width: 780mm. Rise: 20mm. Bar Bore: 35mm. |
| Saddle | SARACEN CUSTOM CRMO MTB. |
| Seatpost | KS LEV INTEGRA. Routing: Internal. Size: 30.9mm. Travel: 170mm, 150mm on size small. Lever: Westy remote. Type: Dropper |
| Grips | ODI ELITE MOTION. |
| Rear Derailleur | SHIMANO XT. Model: M8100 SGS Shadow Plus. Speed: 12 speed. |
|---|---|
| Crank | SHIMANO XT. Model: FC-M8130. Chain Ring: 34T. Crank Length: 170mm / 56.5mm. |
| Shifters | SHIMANO XT. Model: M8100 Rapidfire Plus 2-way release. Speed: 1x12 speed. |
| Cassette | SHIMANO XT. Model: M8100. Speed: 12 speed. Ratio: 10-51T. |
| Chain | KMC X12. |
| Brakes | SHIMANO XT. Model: M8120. Brake Type: Hydraulic four piston. Rotor Size: 203/180mm. Type: Shimano XT Hydraulic Disc |
| Brake Levers | SHIMANO XT. |
| Rims | DT SWISS EX511. Hole: 32H. Size: 29'' Front / 29'' Rear (Sizes Large / XL) 29'' Front / 27.5'' Rear (Sizes Small / Medium). Tubeless Ready: Yes. |
|---|---|
| Spokes | DOUBLE-BUTTED STAINLESS STEEL. |
| Front Hub | KT. Front: Sealed Bearing 32H. Rear: Sealed Bearing 32H. Brake Fitting: Centre-Lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H. |
| Rear Hub | KT. Front: Sealed Bearing 32H. Rear: Sealed Bearing 32H. Brake Fitting: Centre-Lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H. |
| Tires | MAXXIS MINION DHRII. Model: EXO TR. Size: 29 x 2.4 Front & Rear (Sizes Large / XL) / 29 x 2.4 Front / 27.5 x 2.3 Rear (Sizes Small / Medium). |
