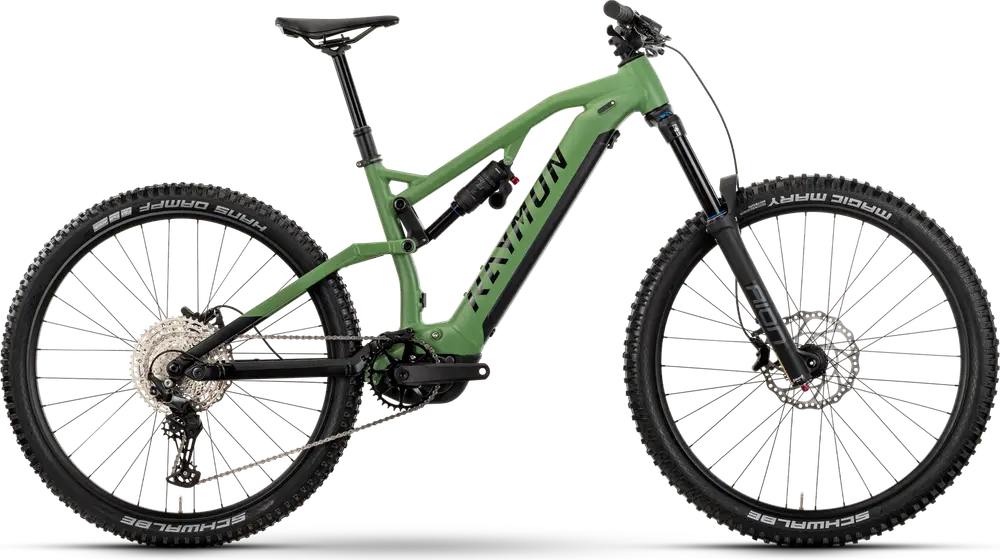

Today’s Deals2025 R RAYMON
Trailray 170
A 29″ aluminum frame full suspension enduro e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€4,799($5,581)| Frame | Aluminum |
|---|---|
| Suspension | Full, 160 / 170mm |
| Fork | Suntour AION |
| Shock | Suntour |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Motor | Yamaha 600W 85Nm mid-drive |
| Battery | 720Wh |
| Brakes | Magura MT5 Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Trailray model range
View Comparison| Frame | 29", Alloy 6061, removeable battery, boost, 160 mm Color: Green |
|---|---|
| Fork | SR Suntour Aion38X RC, air, 170 mm, tapered Travel: 170mm Spring Type: Air |
| Shock | SR Suntour TriAir2 R, air, 230x65 mm Travel: 160mm |
| Stem | Raymon 35, 0 °, Ahead |
| Handlebar | Raymon Riser 35 mm, Sweep: 9 °, Rise: 20 mm |
| Saddle | Raymon 143 VM Fit |
| Seatpost | Raymon, 34,9 mm, Dropper Post Type: Dropper |
| Rear Derailleur | Shimano Deore, RD-M6100, Shadow Plus, 12-S |
|---|---|
| Crank | Raymon, Narrow Wide, 36T |
| Shifters | Shimano Deore, SL-M6100, Rapidfire Plus |
| Brakes | Front: Magura MT5, 4-piston, hydr. disc brake, Rear: Magura MT5, 4-piston, hydr. disc brake Type: Magura MT5 Hydraulic Disc |
| Rims | 29" |
|---|---|
| Tires | Schwalbe Magic Mary Perf, ADDIX, 62-622, 29x2.4 |
| Disc Rotors | Magura MDR-C, 203 mm, 6-bolt |
| Motor | Yamaha PW-X3, 250/600 W, 85 Nm |
|---|---|
| Battery | 720 Wh, 36 V |
| Display | Yamaha Display A2, LCD, Micro-USB |
