2025 R RAYMON

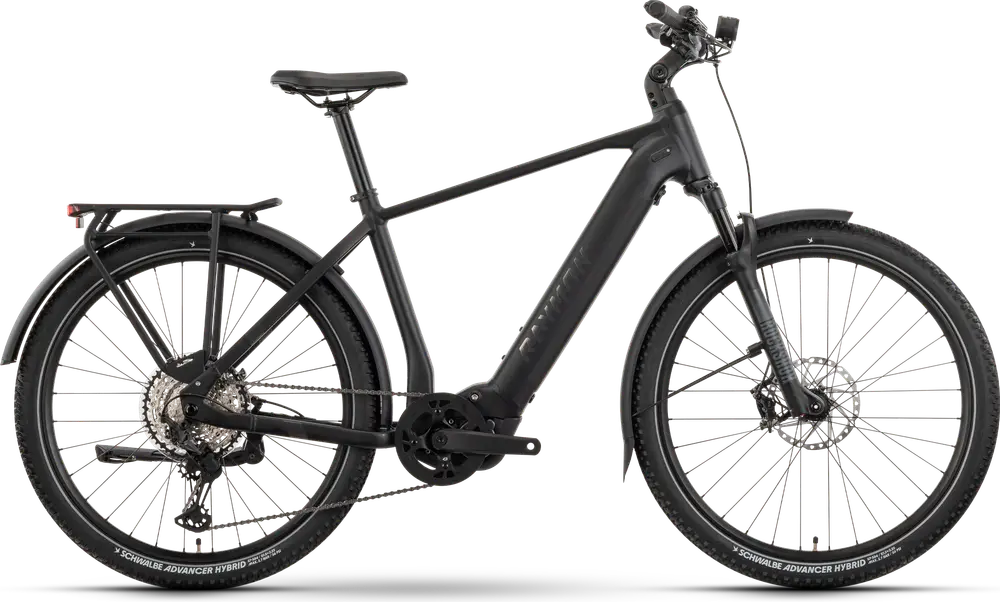

Tourray Ultimate Diamond

A 650b aluminum frame hybrid e-bike with high-end components and shimano xt hydraulic disc brakes.
Compare the full range

Manufacturer Price

€4,499($5,235)
FrameAluminum
Wheels650b
Drivetrain1 × 12
GroupsetXT
MotorYamaha 600W 85Nm mid-drive
Battery800Wh
BrakesShimano XT Hydraulic Disc
View on raymon-bicycles.comLearn about R RAYMON
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full TOURRAY model range

View Comparison
Specs
Build
Frame

27.5", Alloy 6061, removeable battery, boost

Colors: Black; Chrome; Bronze

Stem

Raymon 31.8, Ahead, adjustable

Handlebar

Raymon Riser 31,8 mm, Sweep: 15 °, Rise: 30 mm

Saddle

Raymon MIMA VM fit

Seatpost

Raymon, 34,9 mm

Type: Rigid

Groupset
Rear Derailleur

Shimano Deore XT, RD-M8100, Shadow Plus, 12-S

Crank

Raymon, Narrow Wide, 40T, CG

Shifters

Shimano Deore, SL-M8100, Rapidfire Plus

Brakes

Shimano BR-M8120, 4-piston, hydr. disc brake

Type: Shimano XT Hydraulic Disc

Wheels
Tires

Schwalbe Advancer Hybrid, Reflex, 57-584, 27.5x2.25

Disc Rotors

Shimano SM-RT64, 180 mm, Center Lock

Electric Components
Motor

Yamaha PW-X3, 250/600 W, 85 Nm

Battery

800 Wh, 36 V

Display

Yamaha Display C, LCD, Bluetooth, Micro-USB

Accessories
Racks

Raymon, MIK HD, 27 kg
