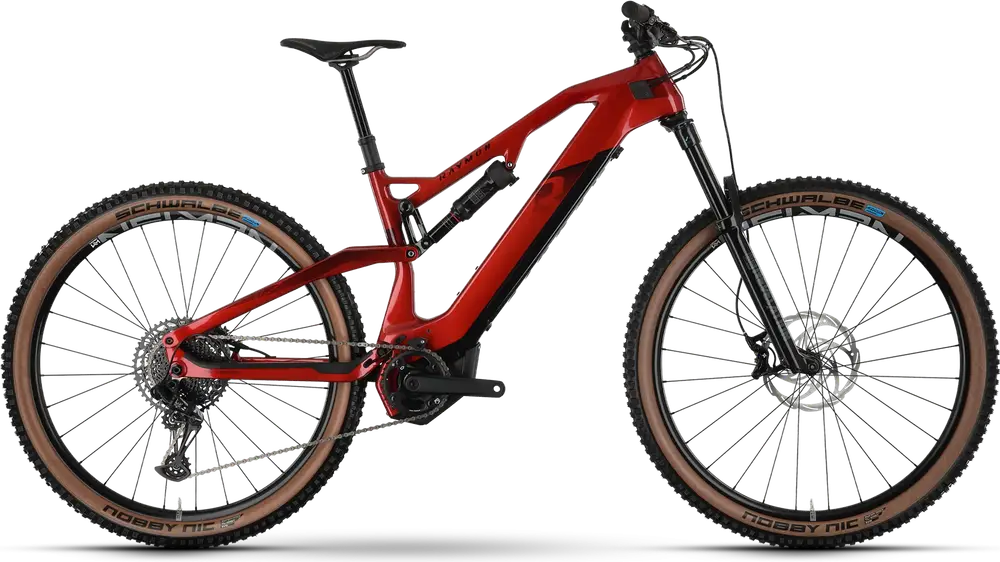

Today’s Deals2024 R RAYMON
AirRay 10.0 SE
A 29″ carbon frame full suspension enduro e-bike with high-end components.
Compare the full range
Manufacturer Price
€4,199($4,863)| Weight | 45.9 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Full, 150 / 150mm |
| Fork | RockShox Revelation RC |
| Shock | RockShox Deluxe Select |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | NX Eagle, SX Eagle |
| Motor | Yamaha 250W 50Nm mid-drive |
| Battery | Yamaha 500Wh |
| Brakes | Formula Cura 4 Hydraulic Disc |
| Seatpost | Dropper |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full AirRay model range
View Comparison
Sep 2021 · Robin Schmitt
With the AirRay E 12.0, R RAYMON present the AIR DRIVE motor concept, which is based on the Yamaha PW-X2. How did the Light eMTB fare in our test?
| Frame | 29", Carbon, Integrated battery, Boost, 150 mm Color: Red |
|---|---|
| Fork | RockShox Revelation RC, DebonAir, Luft, 150 mm, tapered Travel: 150mm Spring Type: Air |
| Shock | RockShox Deluxe Select, Air, 230x65 mm Travel: 150mm |
| Headset | R Raymon ZS44/ZS56 |
| Stem | Race Face Affect 35 mm, 0 °, Ahead |
| Handlebar | Race Face Turbine 35 mm, 780 mm, Sweep: 8 °, Rise: 20 mm |
| Saddle | Selle Italia SLR Boost, Titan |
| Seatpost | R Raymon Pro, 31,6 mm, Dropper Post Type: Dropper |
| Grips | R Raymon MTB light |
| Rear Derailleur | SRAM NX Eagle, 12-S |
|---|---|
| Crank | SRAM X-Sync Eagle, 34 T |
| Shifters | SRAM SX Eagle, Single Click |
| Cassette | SRAM PG-1210, 10-50 T |
| Chain | SRAM SX Eagle |
| Chain Guide | Direct Mount |
| Brakes | Front: Formula Cura 4, 4-Kolben, Hydraulische Scheibenbremse, Rear: Formula Cura, 2-Kolben, Hydraulische Scheibenbremse Type: Formula Cura 4 Hydraulic Disc |
| Brake Levers | Formula Cura X, Brake lever, adjustable, 2-finger |
| Rims | 29" |
|---|---|
| Tires | Schwalbe Nobby Nic, Evolution, 62-622, 29x2.4, Tubeless Ready |
| Disc Rotors | Formula, 203 mm, 6-Loch |
| Motor | AIR DRIVE powered by Yamaha, 250 W, 50 Nm |
|---|---|
| Battery | Yamaha ML500, 500 Wh, 36 V |
| Display | Yamaha Interface X, LED-Display, ANT, Bluetooth, Micro-USB |
| Charger | Yamaha rapid charger, 4 A |
