Today’s Deals2021 R RAYMON

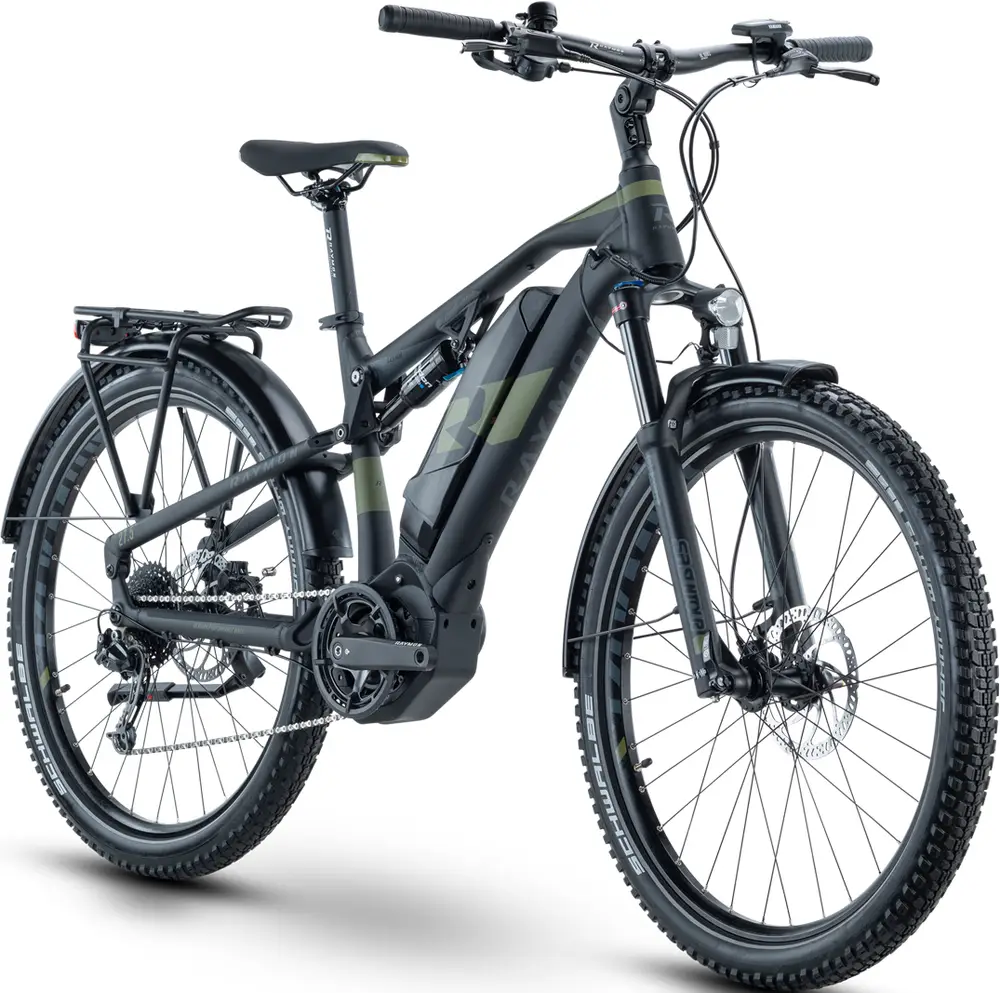

CrossRay E FS 4.0
A 650b aluminum frame hybrid e-bike with mid-range components and tektro hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,099($3,604)| Weight | 52.7 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 120mm rear |
| Fork | Suntour XCR |
| Shock | Suntour |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | Deore, Altus |
| Motor | Yamaha 250W 50Nm mid-drive |
| Battery | Yamaha 500Wh |
| Brakes | Tektro Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | 27.5", Alloy 6061, External battery, 120 mm |
|---|---|
| Fork | SR SUNTOUR XCR34 Boost LO |
| Shock | SR SUNTOUR Raidon LO, 190x51 mm Travel: 120mm |
| Stem | R Raymon 31.8, adjustable |
| Handlebar | R Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm |
| Saddle | R Raymon Ergo |
| Seatpost | R Raymon, 30.9 mm, Patent Type: Rigid |
| Pedals | R Raymon, Alloy |
| Grips | R Raymon Ergo, Lock-on grips |
| Rear Derailleur | Shimano Deore, RD-M592 Shadow, 9-S |
|---|---|
| Shifters | Shimano Altus, SL-M2010, Rapidfire Plus, 9-speed |
| Chain | KMC e9s |
| Brakes | Tektro HD-T275, 2-piston, Hydraulic disc brake Type: Tektro Hydraulic Disc |
| Rims | Rim: Mach1 Trucky30, Hubs: R Raymon DA211, 15x110/12x148mm |
|---|---|
| Tires | Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5x2.35 |
| Motor | Yamaha PW-CE, 250W, 50Nm |
|---|---|
| Battery | Yamaha DT500, 500 Wh, 36 V |
| Display | Yamaha Display A, LCD-Display |
| Charger | Yamaha rapid charger, 4 A |
| Lights | Front: Herrmans MR4, 40 lx, Rear: AXA Blueline E |
|---|---|
| Fenders | Curana Apollo |
| Racks | R Raymon Tour FS, MIK |
