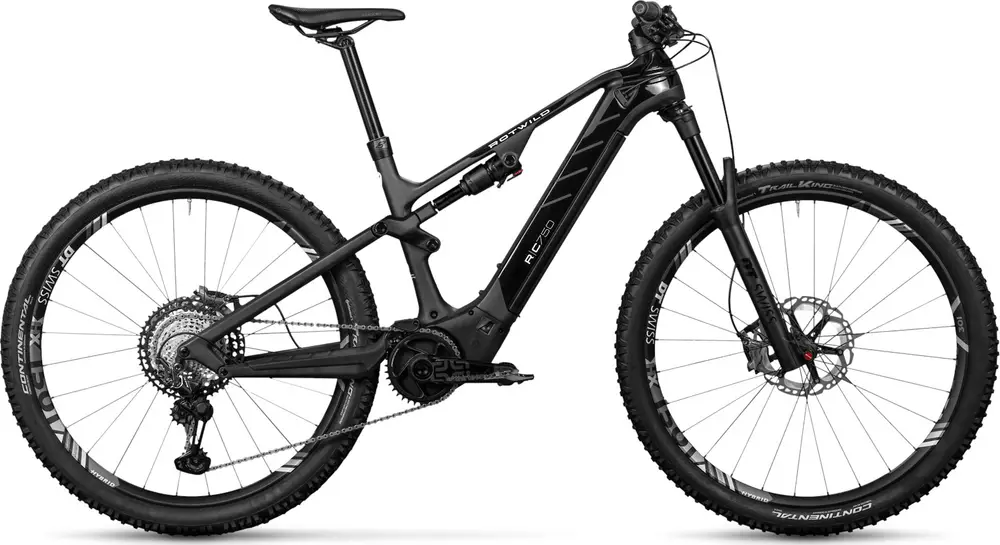

2020 Rotwild
R.C750 Ultra
A 29″ carbon frame full suspension trail e-bike with ultra high-end components.
Compare the full range
| Frame | Carbon |
|---|---|
| Suspension | Full, 140 / 140mm |
| Fork | DT Swiss |
| Shock | DT Swiss R 535 ONE |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XTR, e*thirteen |
| Motor | Brose 90Nm mid-drive |
| Battery | 750Wh |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Carbon Fiber |
|---|---|
| Fork | DT Swiss F353 ONE, APT/LINEAIR/COILPAIR spring, INCONTROL PLUSHPORT damper Travel: 140mm |
| Shock | DT Swiss R535 ONE, LINEAIR spring, INCONTROL damper Travel: 140mm |
| Headset | Acros RW750 Block Lock |
| Stem | S35, 35mm clamp, 50mm length, MonkeyLink light mount ready |
| Handlebar | B35, 35mm clamp diameter, 15mm rise, 740mm widht (SM/MD), 780mm width (LG/XL) |
| Saddle | Ergon SM Comp |
| Seatpost | Eightpins NGS-2 dropper, Drop: 168mm (SM), 192mm (MD), 210mm (LG), 228mm (XL) Type: Dropper |
| Pedals | N/A |
| Grips | Ergon GD10 Slim Factory, Frozen |
| Rear Derailleur | Shimano XTR 9100, 12-speed |
|---|---|
| Front Derailleur | N/A |
| Crank | e*thirteen Race Carbon, Length: 165mm (SM/MD), 170mm (LG/XL) |
| Shifters | Shimano XTR, 12-speed, I-SPEC EV clamp |
| Cassette | Shimano CS 8100, 12-speed, 10-51 tooth |
| Chain | Shimano HG 7100, 12-speed |
| Chain Guide | Rotwild SL750 upper guide |
| Brakes | Shimano XTR 9120, finned pads, Shimano 203mm ICE TECH rotors (RT800 front, RT810 rear) Type: Hydraulic Disc |
| Brake Levers | Shimano XTR 9120 |
| Rims | DT Swiss HX1501 Spline ONE 30 wheelset |
|---|---|
| Spokes | DT Swiss HX1501 Spline ONE 30 wheelset |
| Front Hub | DT Swiss HX1501 Spline ONE 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear |
| Rear Hub | DT Swiss HX1501 Spline ONE 30 wheelset, 15x110mm Boost front, 12x148mm Boost rear |
| Tires | Continental Trail King, 29" x 2.4" |
| Motor | Brose Drive S Mag, air cooler skid plate, 90Nm |
|---|---|
| Battery | Rotwild IPU750, removeable, semi-integrated |
