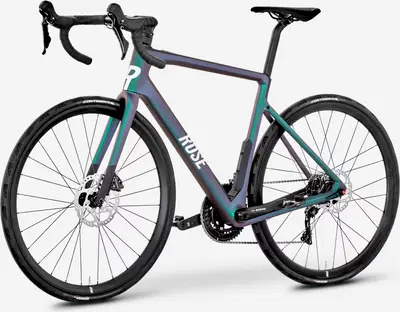

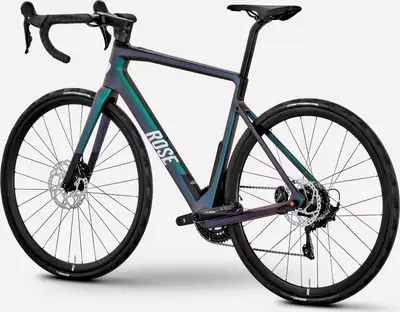

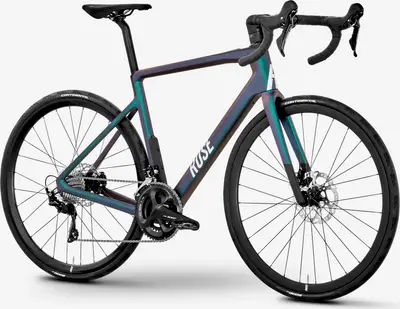

Today’s Deals2023 Rose
REVEAL PLUS 105
A carbon frame endurance e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
€3,999($4,653)| Weight | 24.9 lbs |
|---|---|
| Frame | Carbon |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | 105 |
| Motor | MAHLE 55Nm hub-drive |
| Battery | 250Wh |
| Brakes | Shimano Hydraulic Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Sep 2023 · Martin Staffa
ROSE REVEAL + hub motor = ROSE REVEAL PLUS? Is the equation that simple, or does it result in an unbalanced all-road bike?
Undercover ebike
Excellent integration
Good value for money
Internally routed cables eventually started rattlingn
Limited compliance, resulting in limited versatility
| Frame | REVEAL PLUS, Borealis Green M Colors: Borealis Green; Matt Carbon / Gold |
|---|---|
| Fork | REVEAL PLUS, Borealis Green |
| Stem | ROSE Square anodized black 100mm |
| Handlebar | Ritchey Road Comp Streem II, black/matt 42cm |
| Saddle | Rose Edition by Selle Italia, black |
| Seatpost | ROSE, 25mm offset, 490mm Type: Rigid |
| Pedals | ROSE VP-836 black |
| Rear Derailleur | Shimano 105, RD7000GS, 11-speed, black |
|---|---|
| Front Derailleur | Shimano 105, FD-7000-F black |
| Crank | Shimano 105, FC7000 50/34, black 172.5mm |
| Shifters | Mahle ONE Head Unit |
| Chain | Shimano CN-HG601 118gl. |
| Brakes | Brake disc: Shimano SM-RT66, 6-hole, Ø160mm Type: Shimano Hydraulic Disc |
| Rims | ROSE R Thirty+, black 28 holes |
|---|---|
| Tires | Continental Grand Prix 5000, black/black. 700x32C |
| Motor | Mahle X20 |
|---|---|
| Battery | 250 Wh |
| Bell | ROSE Bell OE |
|---|
First added February 6
Last updated May 25
Not listed for 743 days
