Matt Carbon / Shiny Laser Gray

Frame weight starting at 920g Matt Carbon/Shiny Laser Gray 53cm

Ritchey WCS Streem Carbon black/matt 40cm

ROSE RC-FORTY / RC-FIFTY DISC CARBON XDR 28” / Inner rim width: approx. 19mm / Rim height (front/rear): approx. 26/37mm / Rim width (front/rear): approx. 27/47mm / Weight: approx. 1400g / Compatible tyre widths: 700x25mm-62mm 28"

ROSE D-Shape, for Reveal/Backroad, carbon, 25 mm offset

Rose Square (6°), aluminium 6061, integrated cable guides, anodized black 90mm

Schwalbe PRO ONE TT, TLE Classic Skin 700x28C

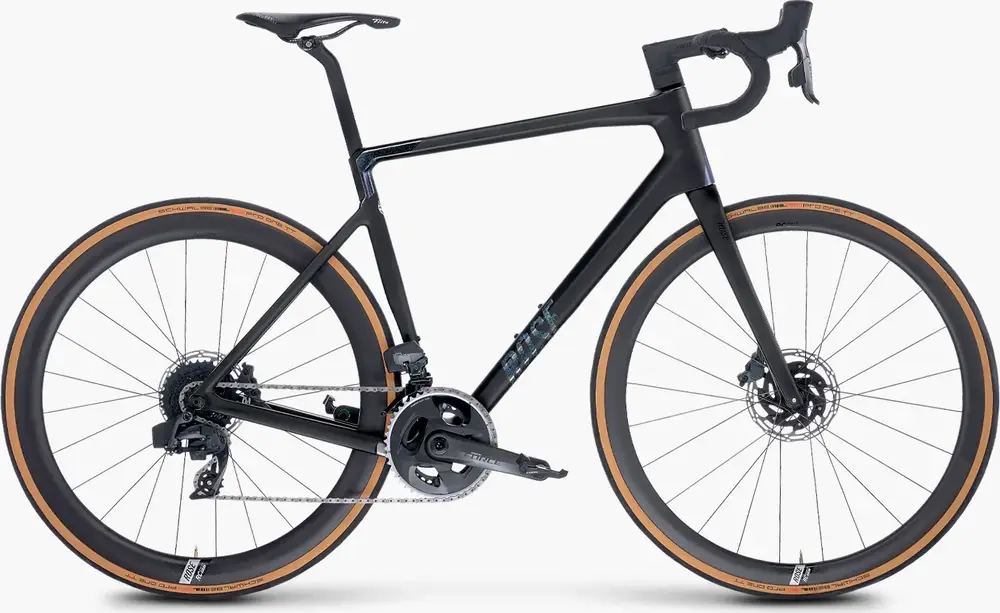

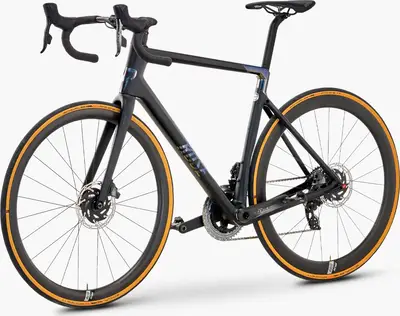

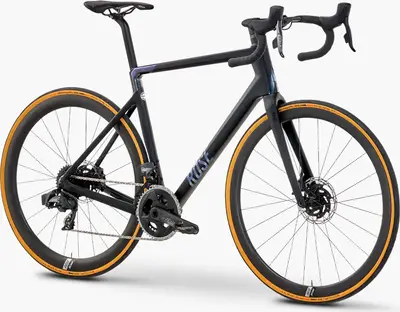

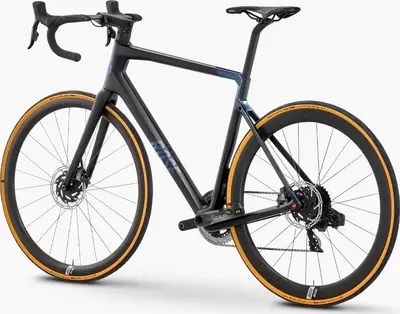

REVEAL SIX DISC Force eTap AXS – this bike is absolutely high-end. The ultra clean, comfortable frame of the REVEAL family, made up of a mere 920 grams of carbon, meets SRAM’s Force eTap AXS wireless shifting to delight even the most demanding bike enthusiasts! Savour this again: Long-distance design paired with multiple technical highlights. The REVEAL is a mile eater with a stack-to-reach ratio that is clearly trending towards comfort. The riding position is compact, but not too upright. Deep seatstays and a full-integrated clamping of the comfortable ROSE D-shape seatpost provides you with various flex-levels and seating positions for the comfort you need on long distances. The top tube runs neatly and elegantly into the ½" to 1 ½" head tube construction that ensures the right stiffness and the power transfer resulting from it. Uncompromising design DNA can be found at the front, too. We have given it a great facelift! Internally routed brake cables give the cockpit even more elegance and skills: Features, such as the outstanding stiffness values thanks to a wide handlebar clamping, a front plate with integrated Garmin mount, and a stem cap with flat top surface integrated in the design, round off the all-in-one ROSE Square stem. SRAM’s Force eTap AXS promises incomparable shifting performance – precise, quiet and secure. With its own app, the system allows for extended possibilities for customisation as well as a profound analysis of the performance data of your bike. X-Range gives you a wider range of gears and a narrower gear ratio to make sure the right gear is available at all times. The high-quality ROSE RC Forty/Fifty Disc Carbon wheels are the perfect complement – for fast acceleration and extreme resilience. They are adapted for the Force disc brake, which itself guarantees an untroubled and safe riding experience, thanks to perfect braking power modulation.
* approx. 7.5 kg, may vary by up to +/- 5 % due to manufacturing tolerances, weight for matt carbon/shiny laser gray frame, size 57 cm, without pedals

Rose REAVEAL SIX DISC Force eTap AXS

50cm

53cm

55cm

57cm

59cm

61cm

64cm

A carbon frame general road bike with high-end components and sram force hydraulic disc brakes.

Weight	16.5 lbs
Frame	Carbon
Fork	Carbon
Wheels	700c Carbon
Drivetrain	2 × 12 Electronic
Groupset	Force, Force eTap
Brakes	SRAM Force Hydraulic Disc

Frame	Frame weight starting at 920g Matt Carbon/Shiny Laser Gray 53cm Color: Matt Carbon / Shiny Laser Gray
Fork	Fork weight starting at 380g matt black
Stem	Rose Square (6°), aluminium 6061, integrated cable guides, anodized black 90mm
Handlebar	Ritchey WCS Streem Carbon black/matt 40cm
Saddle	Selle Italia Flite Flow black/black
Seatpost	ROSE D-Shape, for Reveal/Backroad, carbon, 25 mm offset Type: Rigid
Pedals	delivered without pedals

Rear Derailleur	SRAM Force eTap AXS
Front Derailleur	SRAM Force eTap AXS black
Crank	SRAM Force 46/33 170mm
Cassette	SRAM XG1270 12 speed 10-33
Chain	SRAM Force 12-speed
Brakes	SRAM Force eTap AXS, 160mm/160mm Type: SRAM Force Hydraulic Disc

Rims	ROSE RC-FORTY / RC-FIFTY DISC CARBON XDR 28” / Inner rim width: approx. 19mm / Rim height (front/rear): approx. 26/37mm / Rim width (front/rear): approx. 27/47mm / Weight: approx. 1400g / Compatible tyre widths: 700x25mm-62mm 28"
Tires	Schwalbe PRO ONE TT, TLE Classic Skin 700x28C

2021 RoseREAVEAL SIX DISC Force eTap AXS

2021 Rose
REAVEAL SIX DISC Force eTap AXS
